Baldor BRU-105 Replacement/Upgrade Solution for BRU Series

Product Overview

Baldor BRU-105 Replacement/Upgrade Solution for BRU Series: Smooth Transition from Legacy Servo Systems

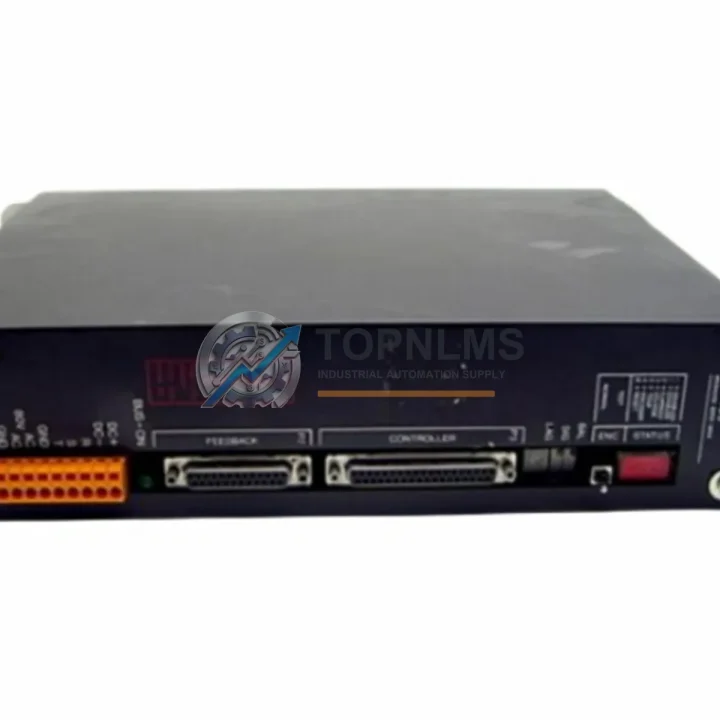

The Baldor BRU-105 is a high-performance servo drive engineered as a direct replacement and modernization solution for aging or discontinued BRU Series servo amplifiers. Whether your facility is running legacy Baldor servo drives that are no longer supported, facing obsolescence-driven downtime, or planning a phased migration to a more capable motion control architecture, the BRU-105 delivers the compatibility, reliability, and procurement confidence that industrial maintenance engineers and automation integrators demand.

Sourced directly from verified supply channels and pre-tested before dispatch, the BRU-105 is stocked in Xiamen and available for immediate shipment worldwide. Every unit ships with a 12-month warranty, full inspection documentation, and dedicated post-sale technical support — making it a dependable choice for both emergency replacements and planned retrofit projects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful BRU-105 retrofit rarely involves the servo drive alone. In most industrial migration projects, the drive replacement is part of a broader system modernization effort that touches multiple components within the same control cabinet or machine architecture.

When replacing a legacy Baldor BRU Series servo amplifier with the BRU-105, engineers typically review the associated servo motor feedback cables and encoder connectors to confirm signal integrity at the new drive’s input stage. If the existing motor uses a resolver-based feedback system, a resolver-to-encoder conversion module may be introduced to bridge the interface gap without requiring motor replacement — a common approach when the Baldor BSM Series servo motor is retained from the original installation.

On the controller side, the BRU-105 interfaces cleanly with standard PLC analog output modules providing ±10V velocity or torque reference signals, as well as with pulse-direction output cards commonly found in motion control PLCs. Where the legacy system relied on a dedicated Baldor NextMove motion controller or axis card mounted in a PLC rack, the BRU-105’s serial interface options can simplify the architecture and reduce the number of rack slots consumed.

Power distribution within the control cabinet should also be reviewed during the retrofit. The 24VDC control power supply feeding the drive’s logic section and I/O interface, as well as the main AC power contactor and line filter, are common items evaluated during a BRU-105 installation. In many cases, the existing EMC line filter and AC input reactor can be retained, reducing retrofit cost and panel rework. Where the original system used a Baldor BC Series DC drive on an adjacent axis, the BRU-105 can coexist on the same power distribution rail without interference.

For multi-axis systems, the BRU-105 is often deployed alongside compatible Baldor BRU Series drives for adjacent axes — such as the BRU-200 or BRU-300 — sharing a common transformer secondary. Terminal blocks, DIN rail-mounted signal isolators, and I/O marshalling modules are frequently updated at the same time to ensure clean signal routing between the new drive and the plant’s existing field wiring. A 24VDC DIN rail power supply dedicated to the control logic section is recommended when multiple drives share the same cabinet.

Where the machine or process uses a Baldor HMI panel or third-party operator interface for speed reference or fault acknowledgment, the BRU-105’s digital I/O and serial port allow straightforward integration without HMI reprogramming in most cases. Similarly, if the system architecture includes a safety relay module or STO (Safe Torque Off) circuit, the BRU-105’s STO input terminals accept standard 24VDC safety relay outputs, preserving the existing safety architecture and avoiding costly safety re-validation.

In applications where the BRU-105 replaces a drive connected to a Baldor MicroFlex or FlexDrive servo controller, the transition is typically straightforward: the command interface, enable logic, and fault relay wiring follow the same conventions, and the existing programming cable and PC-based commissioning software can often be reused for initial parameter upload and tuning verification.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor wiring when installing the BRU-105?
A: In most cases, yes. The BRU-105 uses a terminal layout compatible with standard Baldor BRU Series wiring conventions. Verify the U/V/W phase assignment and ground connection before energizing. Shielded motor cable should be retained and the shield grounded at the drive end only.

Q: Do I need to modify my PLC program after replacing the drive?
A: If the BRU-105 is configured to accept the same command signal type (±10V analog or pulse-direction) as the outgoing drive, no PLC program changes are required. Parameter tuning — gain, ramp times, current limits — will need to be set on the BRU-105 to match the motor and load characteristics.

Q: Is the BRU-105 compatible with my existing communication protocol?
A: The BRU-105 supports analog ±10V, pulse-direction, and serial command interfaces. If your legacy system used a proprietary fieldbus such as CANopen or DeviceNet, please contact our technical team to confirm the appropriate interface configuration or adapter module.

Q: Will the BRU-105 fit in the same panel space as the original drive?
A: The BRU-105 is designed to fit standard panel and DIN rail mounting positions used by the Baldor BRU Series. In most installations, no mechanical modification to the control cabinet is required. Verify clearance requirements for airflow and cable routing before installation.

Q: How do I handle commissioning and parameter setup on-site?
A: The BRU-105 can be configured via its front-panel keypad or through a PC-based setup tool connected to the serial port. Our team provides parameter templates based on common Baldor BSM motor and load combinations to accelerate on-site commissioning and reduce downtime.

Q: What if the replacement drive develops a fault during the warranty period?
A: All BRU-105 units are covered by a 12-month warranty from the shipment date. In the event of a confirmed drive fault, we provide priority replacement dispatch to minimize production impact. Contact [email protected] with your order reference and fault description.

Warranty Assurance

Every Baldor BRU-105 servo drive shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Before dispatch, each unit undergoes a multi-point outgoing inspection that includes power-on functional testing, I/O verification, and visual inspection for physical damage or counterfeit indicators.

Our warranty support process is straightforward: if a unit develops a confirmed fault within the warranty period, we initiate a replacement shipment upon receipt of the fault report and, where required, the returned unit. We do not require lengthy RMA processing delays — our goal is to get your system back online as quickly as possible.

For procurement teams, the 12-month warranty provides a documented assurance period that can be referenced in maintenance contracts and spare parts management records. Units are shipped with a packing list and inspection certificate, and additional test reports can be provided upon request for quality-critical applications.

Stock is maintained in Xiamen, China, with express shipping options available to most global destinations. Lead time for in-stock units is typically 1–3 business days from order confirmation. For bulk orders or scheduled delivery programs, please contact our sales team to discuss stocking arrangements.
