Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 Replacement Solution

Product Overview

Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 Replacement & Upgrade Solution: Seamless Transition for Legacy Hydraulic Axis Control Systems

When your existing Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 hydraulic axis control card reaches end-of-life or fails unexpectedly, the pressure to restore machine operation is immediate. This replacement and upgrade solution is engineered specifically for engineers and procurement teams managing the migration from aging VT-HACD series axis control hardware to a fully compatible, tested, and warranted alternative — without requiring redesign of your hydraulic servo system, control cabinet layout, or PLC program architecture.

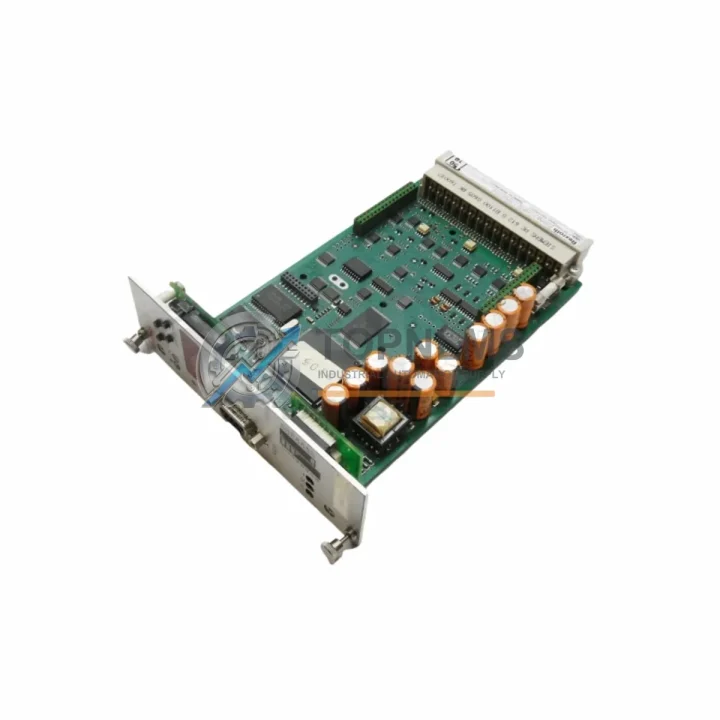

The VT-HACD-DPQ-1-20/V0/1-0-0 is a digital proportional axis control card from Bosch Rexroth’s VT-HACD series, designed for closed-loop position and velocity control of hydraulic axes in demanding industrial environments. It interfaces directly with proportional directional control valves and servo valves, accepting encoder feedback signals and communicating with the host controller via analog command inputs or fieldbus interfaces. When this card fails or becomes obsolete, the entire hydraulic axis — whether on a press, injection molding machine, die casting unit, or heavy-duty test rig — is rendered inoperable.

Our replacement stock of the R901054664 is sourced from authorized distribution channels and verified against Bosch Rexroth’s original manufacturing specifications. Each unit undergoes functional testing prior to dispatch, covering analog input/output calibration, enable logic, ramp parameter retention, and valve driver output integrity. This ensures that when you install the replacement card into your existing VT-HACD rack or control cabinet, commissioning time is minimized and the risk of secondary faults is eliminated.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful hydraulic axis control card replacement rarely involves a single component in isolation. In practice, the VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 operates as part of a broader Bosch Rexroth hydraulic control architecture. During the migration or emergency replacement process, engineers frequently identify adjacent components that require simultaneous attention to ensure system stability and avoid repeat downtime.

The valve amplifier card — often a VT-VSPA2-1-1X/V0/T1 or similar VT-VSPA series proportional amplifier — sits alongside the axis control card in the same control cabinet and shares the 24 VDC bus. If the axis card failure was caused by a power surge or valve coil short, the amplifier card should be inspected and replaced concurrently. Similarly, the VT-SR2-1X/1 safety relay module, which monitors enable signals and emergency stop logic for the hydraulic axis, is a common co-replacement item during VT-HACD upgrades.

For systems where the host controller communicates via PROFIBUS DP, the Bosch Rexroth VT-COM-PBDP fieldbus communication module may need firmware alignment after the axis card is replaced. In Siemens S7-300 or S7-400 PLC environments — which are the most common host controllers paired with VT-HACD series cards — the hardware configuration in STEP 7 or TIA Portal may require a GSD file update or I/O address remapping if the replacement card carries a different firmware version identifier.

On the feedback side, the incremental encoder connected to the axis card — typically a Heidenhain ERN 1381 or equivalent TTL encoder — should be verified for signal integrity before commissioning the replacement card. A degraded encoder signal is a frequent root cause of axis control card faults and will cause the replacement unit to fault immediately if not addressed. The encoder cable shield grounding at the VT-HACD terminal block should also be inspected, as ground loops are a known source of instability in high-resolution position control applications.

In multi-axis hydraulic systems, the VT-HACD-DPQ-1-20/V0/1-0-0 may share a common Bosch Rexroth VT-HNC100-3-1X/1-0-0 hydraulic axis controller or a VT-HACD rack backplane with other axis cards. Replacing one card without verifying the backplane connector integrity and the shared power supply — often a Bosch Rexroth VT-NE30-1X/1-0 power supply module — can result in intermittent faults on adjacent axes. We stock these complementary components and can supply them alongside the R901054664 to support a complete cabinet-level restoration.

For customers upgrading from older analog-only VT-HACD variants to the current DPQ digital version, the transition also involves updating the parameterization software from legacy HACD-WIN to the current WinHPT platform. Our technical team can provide guidance on parameter migration to ensure that existing ramp times, position windows, and valve linearization tables are correctly transferred to the new card without requiring a full recommissioning cycle on the machine.

Retrofit Guidance FAQ

Q: Do I need to re-wire the valve connector when replacing the VT-HACD-DPQ-1-20/V0/1-0-0?
A: No. The replacement card uses the same connector pinout as the original VT-HACD-DPQ series. The valve solenoid wiring, enable signal wiring, and encoder feedback cable can be transferred directly from the old card to the new unit without modification. Verify connector locking tabs are fully engaged after transfer.

Q: Will my existing PLC program need to be modified?
A: In most cases, no. The VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 maintains the same analog command interface (±10 V) and digital enable logic as previous VT-HACD variants. If your host PLC — whether a Siemens S7, Beckhoff CX, or Allen-Bradley ControlLogix — communicates via analog I/O, no program changes are required. For fieldbus-connected systems, verify that the GSD or EDS file version matches the replacement card’s firmware revision.

Q: How do I re-enter the axis parameters after card replacement?
A: Parameters are entered using Bosch Rexroth’s WinHPT parameterization software via the RS-232 service interface on the card front panel. If you have a backup of the original parameter set (exported as a .hpt file), the restore process takes approximately 10–15 minutes. If no backup exists, parameters must be re-optimized on the machine. We recommend maintaining a parameter backup for all VT-HACD cards in service.

Q: The replacement card has a different firmware version. Is this a problem?
A: Minor firmware revisions within the same VT-HACD-DPQ-1-20 product line are backward compatible. Functional behavior, parameter structure, and communication interfaces remain consistent. Review the Bosch Rexroth firmware release notes for the specific revision to confirm no breaking changes affect your application.

Q: Will the replacement card fit in the existing control cabinet space?
A: Yes. The VT-HACD-DPQ-1-20/V0/1-0-0 maintains the same physical form factor as all VT-HACD-DPQ series cards. It mounts on standard DIN rail or in the Bosch Rexroth VT-HACD card rack without any mechanical modification to the cabinet.

Q: What communication protocols are supported?
A: The base unit supports analog command input (±10 V) and digital I/O for enable/fault signals. Fieldbus communication (PROFIBUS DP) is available via the optional VT-COM-PBDP module. Confirm your system’s communication architecture before ordering to ensure the correct variant is supplied.

Warranty Assurance

Every Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during installation and commissioning.

Prior to dispatch, each unit undergoes a pre-shipment functional test covering power-on self-test completion, analog I/O signal verification, enable logic response, and valve driver output continuity. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, minimizing the impact on your production schedule. Our after-sales response team is reachable via email and phone for technical support during installation and commissioning, and can coordinate with your maintenance team to diagnose faults remotely before a replacement is dispatched.

For procurement teams managing spare parts inventory across multiple sites, we offer consignment stock arrangements and priority supply agreements for VT-HACD series components. Contact our sales team to discuss volume pricing, lead time guarantees, and multi-site supply contracts.

Stock is held in Xiamen, China, with express international shipping available to all major industrial markets. Standard lead time for in-stock units is 3–5 business days to most destinations. Expedited shipping options are available for emergency breakdown situations.
