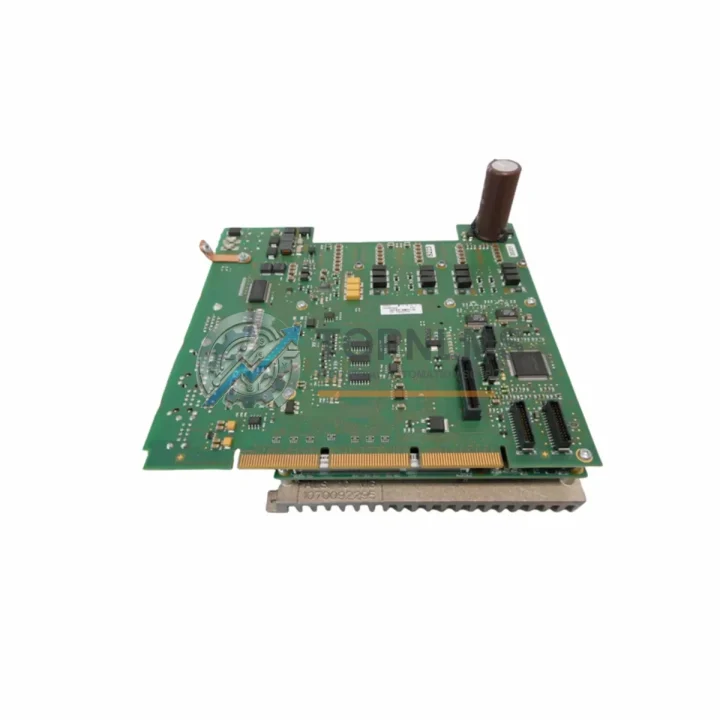

Bosch Rexroth 1070089510-101: IndraControl CNC PCB for Industrial System Stability

The Bosch Rexroth 1070089510-101 is an original IndraControl CNC control PCB module engineered for demanding industrial automation environments. As a critical component within Bosch Rexroth’s IndraControl CNC architecture, this board governs axis interpolation, spindle coordination, and real-time machine control logic. Sourcing a verified original spare ensures your CNC machining center, grinding line, or transfer machine maintains full operational integrity without costly revalidation or software reconfiguration.

In high-throughput manufacturing facilities, an unplanned CNC controller failure can halt an entire production cell within minutes. Keeping a qualified spare of the 1070089510-101 on the shelf is one of the most cost-effective risk mitigation strategies available to maintenance engineers managing legacy Bosch Rexroth IndraControl platforms. This module ships fully tested, with each unit verified against original Bosch Rexroth electrical specifications prior to dispatch.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown to replace or inspect the 1070089510-101 CNC control PCB, experienced maintenance teams treat the intervention as an opportunity for a comprehensive control cabinet audit. The IndraControl CNC architecture relies on tight coordination between multiple subsystems, and a board-level replacement is the ideal moment to verify the health of adjacent components.

Begin by inspecting the Bosch Rexroth power supply module (such as the HMV or HMD series drive supply) that feeds the control backplane — voltage ripple or aging capacitors in the PSU are a leading cause of premature PCB failure. Simultaneously, check the IndraDrive servo drive modules (e.g., HCS or HMS series) connected to each controlled axis; a failing drive can generate bus faults that stress the control board over time.

The I/O expansion modules within the IndraControl rack — including digital input/output cards and analog signal modules — should be reseated and inspected for oxidized edge connectors. Corroded contacts are a frequent source of intermittent faults that are often misdiagnosed as CPU board failures. While the cabinet is open, verify the condition of the SERCOS fiber-optic ring cables connecting the CNC controller to the drive units; bent or aged fiber cables degrade communication integrity and can cause axis following errors.

For facilities running Bosch Rexroth IndraMotion MTX or legacy Bosch CC220/CC300 platforms, it is advisable to also inspect the operator panel interface board and the machine control panel (MCP) connection module, as these share the same 24 VDC control bus. A worn battery backup module for SRAM parameter retention is another commonly overlooked item — replacing it during the same maintenance window prevents a separate emergency callout.

Finally, review the terminal block assemblies and signal cable harnesses routed to the PCB slot. Loose ferrules, chafed insulation, or undersized wire gauges on the 24 VDC supply lines can introduce noise that corrupts CNC program execution. Addressing these items during a single planned outage dramatically reduces the probability of a repeat failure within the next 12–24 months of operation.

Strategic Replacement Solutions

The 1070089510-101 is a direct original replacement for the corresponding slot in IndraControl CNC control cabinets. Unlike third-party remanufactured boards, an original Bosch Rexroth spare eliminates the need for firmware re-flashing, parameter re-entry, or compatibility validation — the module is plug-compatible with the existing backplane and recognized immediately by the CNC operating system.

For facilities managing end-of-life Bosch Rexroth CNC platforms where new OEM support has been discontinued, stocking one or two units of the 1070089510-101 provides a multi-year operational runway without requiring a full machine retrofit. This strategy is particularly valuable for transfer lines and special-purpose machines where a like-for-like CNC replacement is the only economically viable option.

Procurement teams should note that original IndraControl PCB modules from authorized distributors carry full traceability documentation, including batch records and pre-shipment test reports. This supports ISO 9001 and TS 16949 maintenance audit requirements common in automotive and precision manufacturing environments. Sourcing through verified channels also eliminates the risk of counterfeit boards — a growing concern in the industrial spare parts market for legacy Bosch Rexroth components.
