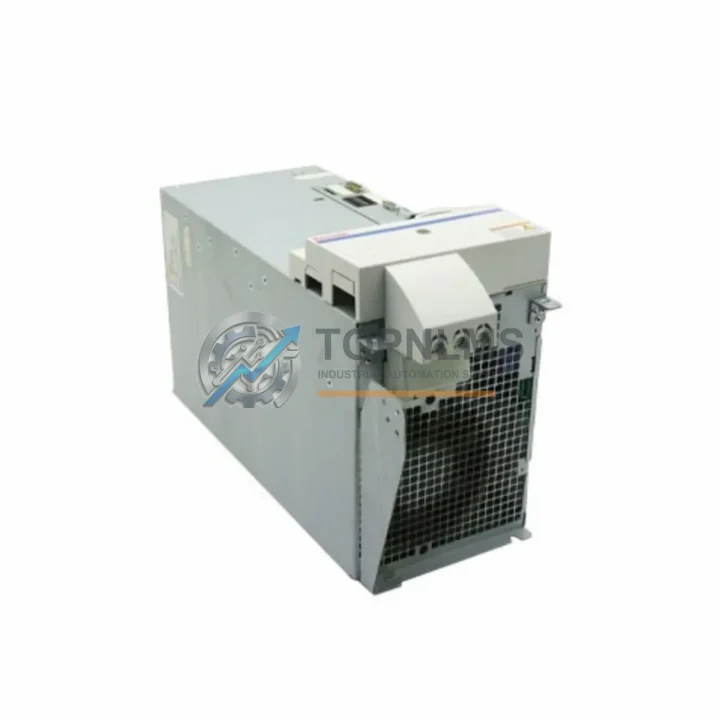

Bosch Rexroth HMS01.1N-W0070-A-07-NNNN Ruggedized Servo Drive

Product Overview

Bosch Rexroth HMS01.1N-W0070-A-07-NNNN Ruggedized Servo Drive: Industrial Resilience for Harsh Environments

The Bosch Rexroth HMS01.1N-W0070-A-07-NNNN is a high-performance single-axis servo drive from the IndraDrive HMS series — engineered to deliver precise motion control under the most demanding industrial conditions. Designed for continuous operation in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this drive module is a cornerstone component in mission-critical automation architectures worldwide.

Whether deployed on a high-speed packaging line, a precision CNC machining center, a heavy-press stamping cell, or a continuous-process chemical plant, the HMS01.1N-W0070-A-07-NNNN maintains stable closed-loop servo performance where lesser drives fail. Its robust power electronics, integrated EMC filtering, and Bosch Rexroth’s proven IndraDrive firmware platform combine to deliver the kind of uptime reliability that industrial operators depend on around the clock.

Rugged Specifications Table

Comprehensive Protection Solutions

The HMS01.1N-W0070-A-07-NNNN is rarely deployed in isolation. In a typical IndraDrive system architecture, it operates alongside the Bosch Rexroth HMV01.1E-W0120 supply unit, which provides the regulated DC bus voltage shared across multiple drive axes. The drive communicates with the machine controller — commonly a Bosch Rexroth IndraMotion MLC or a third-party PLC such as a Siemens S7-1500 series controller — via SERCOS III or EtherCAT, enabling deterministic real-time motion coordination across multi-axis gantry, robotic, or press-brake applications.

Within the control cabinet, the HMS01.1N-W0070-A-07-NNNN is typically paired with Bosch Rexroth HAS02 accessory modules for braking resistor management and HAS05 shield connection kits to maintain EMC integrity across the motor cable runs. Proper grounding and shielding are critical in environments with variable-frequency drives, arc welders, or high-current bus bars operating nearby. The drive’s integrated EMC filter significantly reduces conducted emissions, protecting adjacent I/O modules, safety relay modules, and communication gateway modules sharing the same cabinet backplane.

For applications requiring functional safety, the HMS01.1N-W0070-A-07-NNNN supports optional Safe Torque Off (STO) and Safe Stop 1 (SS1) functions when combined with a compatible Bosch Rexroth safety option module (e.g., the S-0-0423 safety parameter set). This makes it suitable for integration into SIL 2 / PLd safety architectures alongside Pilz PNOZ or Sick Flexi Soft safety controllers, without requiring an external safety contactor in many configurations.

On the power distribution side, the drive is protected upstream by appropriately rated semiconductor fuses and a line filter choke to suppress harmonic distortion on the mains supply — a common requirement in facilities operating multiple servo axes, large Danfoss VLT or ABB ACS880 variable-frequency drives, and high-inrush transformer loads simultaneously. Proper coordination of these protective components ensures the HMS01.1N-W0070-A-07-NNNN operates within its rated thermal envelope even during aggressive duty cycles.

Application in Critical Infrastructure

The HMS01.1N-W0070-A-07-NNNN has established a strong track record across the most demanding sectors of heavy industry and critical infrastructure:

Oil & Gas: In upstream and midstream facilities, servo-driven valve actuators and pipeline inspection equipment must operate reliably in explosive atmospheres and wide temperature swings. The IndraDrive HMS platform’s robust design and STO safety function support integration into Zone 2 / Division 2 classified areas when installed in appropriately rated enclosures, providing precise flow control without compromising process safety.

Mining & Mineral Processing: Continuous miners, conveyor drive systems, and ore-sorting machinery subject servo drives to relentless vibration, coal dust ingress, and voltage fluctuations from large motor starts. The HMS01.1N-W0070-A-07-NNNN’s vibration-rated construction and wide input voltage tolerance make it a preferred replacement choice for aging drives on long-wall mining equipment and ball mill drives.

Power Generation & Utilities: Turbine governor systems, cooling tower fan drives, and grid-synchronization equipment in thermal and hydroelectric power plants demand servo drives that can sustain operation through grid disturbances and high ambient temperatures in turbine halls. The IndraDrive HMS series meets these requirements with its integrated regenerative braking capability and robust thermal management.

Water & Wastewater Treatment: Pump and blower servo drives in water treatment facilities face continuous duty cycles, high humidity, and corrosive hydrogen sulfide atmospheres. The HMS01.1N-W0070-A-07-NNNN, installed in sealed IP54 or IP65 control cabinets with appropriate climate control, delivers the long mean-time-between-failure (MTBF) performance that municipal utilities require to meet service-level agreements.

Metallurgy & Steel: Rolling mill drives, ladle turret positioning systems, and continuous casting machine servo axes operate in environments with intense radiated heat, magnetic fields from induction furnaces, and airborne metallic particulates. The drive’s EMC-hardened design and high short-circuit withstand rating make it a reliable workhorse in these extreme conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange repair or replacement at no additional cost. Warranty claims are processed via email to [email protected] with the order reference and a brief fault description. Our technical team typically responds within one business day.

Q2: How is each unit tested before shipment?
Every HMS01.1N-W0070-A-07-NNNN unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, power-on verification, and parameter readback confirmation where applicable. Units sourced from OEM-authorized channels are cross-referenced against Bosch Rexroth’s serial number database. Test records are available upon request for quality-critical procurement processes.

Q3: Is this drive compatible with my existing IndraDrive system and motor?
The HMS01.1N-W0070-A-07-NNNN is compatible with the full range of Bosch Rexroth IndraDrive HMS supply units and MSK, MKD, MHD, and 2AD series servo motors. Firmware and parameter files from an existing HMS drive of the same power class can typically be transferred directly, minimizing commissioning time during a like-for-like replacement. For cross-brand integration (e.g., replacing a Siemens SINAMICS S120 axis module), our technical team can advise on parameter mapping and interface adaptation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a standing inventory of IndraDrive HMS series drives across multiple power classes to support both planned maintenance schedules and emergency breakdown situations. For customers with critical production lines, we recommend establishing a framework agreement to reserve stock and guarantee priority dispatch. Contact [email protected] or call +86 18359293191 to discuss stocking arrangements, lead times, and volume pricing.
