Bosch Rexroth HMD01.1N-W0036-A-07-NNNN Original Spare IndraDrive

Product Overview

Bosch Rexroth HMD01.1N-W0036-A-07-NNNN Original Spare IndraDrive — System Stability & Industrial Spare Maintenance Value

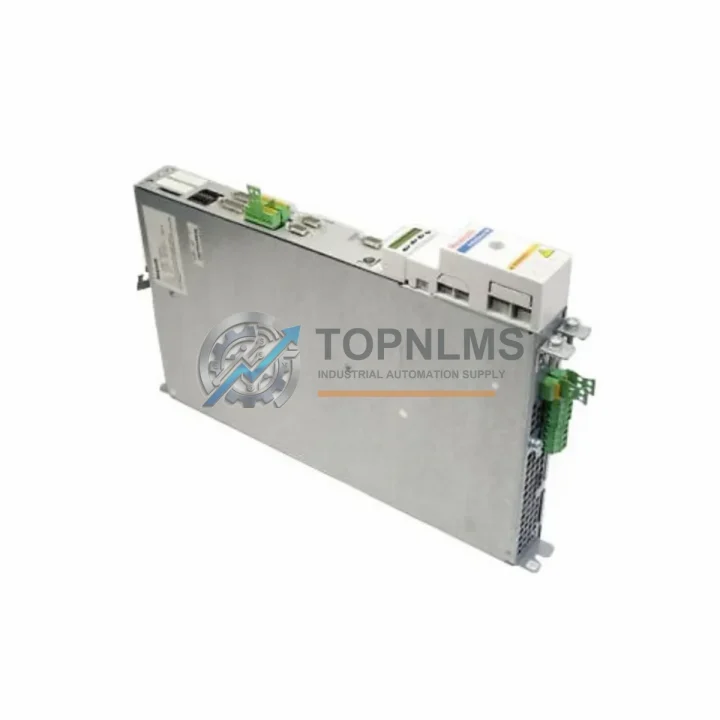

The Bosch Rexroth HMD01.1N-W0036-A-07-NNNN is a dual-axis IndraDrive servo drive controller engineered for precision motion control in demanding industrial automation environments. As a genuine original spare part, this unit is a direct, plug-compatible replacement for aging or failed HMD01 series drives installed across CNC machining centers, packaging lines, press automation systems, and multi-axis robotic cells. Sourcing an original replacement — rather than a substitute or refurbished unit — is the single most effective action a maintenance team can take to restore system stability, eliminate compatibility risk, and protect the long-term integrity of the drive bus architecture.

In high-availability production environments, an unplanned servo drive failure can cascade into hours or days of unscheduled downtime. Keeping a verified, tested HMD01.1N-W0036-A-07-NNNN in your critical spares inventory eliminates the lead-time risk associated with emergency procurement and ensures your maintenance team can execute a rapid swap without waiting on international freight or customs clearance. Every unit shipped by TOPNLMS is individually tested prior to dispatch and backed by a 12-month warranty, giving procurement and maintenance managers the confidence to stock this part as a long-cycle strategic spare.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. The HMD01.1N-W0036-A-07-NNNN operates within a tightly coupled IndraDrive system topology, and a thorough preventive maintenance inspection should address the entire drive cabinet — not just the failed axis. When scheduling a planned shutdown to replace or inspect this unit, maintenance engineers should simultaneously evaluate the HCS02 or HCS03 supply module that powers the DC bus, as capacitor degradation in the supply unit is a leading cause of premature drive faults. The HMV01 mains filter and regenerative supply should also be checked for thermal discoloration or abnormal noise during run-up.

On the motor side, inspect the MSK or MKD series servo motor feedback cables and encoder connectors — damaged or intermittently shorted feedback lines are frequently misdiagnosed as drive faults. The IKS or INK series SERCOS fiber-optic cables connecting the drive to the CNC controller should be inspected for bend-radius violations and connector contamination, as signal degradation on the SERCOS ring can trigger axis errors that appear to originate in the drive itself.

Within the control cabinet, review the 24 VDC auxiliary power supply (typically a PSI or PSL series unit) that powers the drive’s logic board. Voltage sag or ripple on the 24 V rail is a common root cause of sporadic drive resets. Check the terminal blocks and bus bar connections on the DC link for signs of arcing or loose torque — these are high-current joints that require periodic re-torquing per the manufacturer’s maintenance schedule. If the system uses a Rexroth IndraControl L or XM controller as the motion master, verify firmware compatibility between the controller and the replacement drive before commissioning.

For multi-axis systems, it is best practice to stock at least one spare HDD01 or HMS01 single-axis IndraDrive module alongside the HMD01 dual-axis unit, ensuring coverage for both axis configurations present in the cabinet. Facilities running legacy Rexroth DIAX04 or EcoDrive systems should also evaluate whether a controlled migration to the IndraDrive platform is more cost-effective than continued single-unit replacement — a conversation TOPNLMS technical support can assist with.

Strategic Replacement Solutions

The HMD01.1N-W0036-A-07-NNNN is a direct replacement for any HMD01.1N drive with the W0036 current rating and A-07 firmware/hardware revision designation. It slots into the existing IndraDrive cabinet footprint without mechanical modification, retains full compatibility with the existing SERCOS or Profibus network topology, and accepts parameter upload from the original drive’s backup file — reducing commissioning time to under 30 minutes for a prepared maintenance team.

For facilities managing end-of-life Rexroth DIAX04 HDS or DDS series drives, the HMD01 platform represents the validated upgrade path recommended by Bosch Rexroth. The transition preserves motor compatibility (MSK, MKD, MHD series) and allows reuse of existing motor cables and feedback lines in most installations, significantly reducing the total cost of the upgrade. TOPNLMS can supply the HMD01.1N-W0036-A-07-NNNN as a standalone replacement or as part of a coordinated cabinet upgrade package including supply modules, filters, and communication adapters.

Stocking this part as a strategic spare — rather than procuring reactively after a failure — reduces mean time to repair (MTTR) from days to hours and eliminates the premium pricing associated with emergency sourcing. For high-throughput production lines where a single axis failure can halt an entire cell, the carrying cost of one spare drive is typically recovered within the first prevented downtime event.

Support FAQ

Q1: Is this unit compatible with my existing IndraDrive cabinet without firmware changes?
In most cases, yes. The HMD01.1N-W0036-A-07-NNNN is designed for direct swap within the HMD01 series. If your existing drive uses a different firmware revision (e.g., A-05 or A-08), a firmware update may be required. TOPNLMS recommends uploading the parameter backup from the original drive and verifying axis configuration before first power-on. Contact our technical team with your existing drive’s nameplate data for a pre-sale compatibility check.

Q2: What pre-shipment testing does TOPNLMS perform on this unit?
Every HMD01.1N-W0036-A-07-NNNN unit undergoes a power-on functional test, DC bus charge verification, and parameter read/write check before dispatch. Units are packed in anti-static foam with original-style protective packaging to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. In the event of a warranty claim, TOPNLMS will arrange collection, inspection, and replacement or repair at no additional cost to the buyer.

Q4: How should I manage spare drive inventory for a multi-axis IndraDrive system?
For systems with three or more IndraDrive axes, industry best practice recommends maintaining at least one spare drive per current rating tier present in the cabinet. For a mixed HMD01 (dual-axis) and HDD01 (single-axis) installation, stocking one of each covers the majority of failure scenarios. TOPNLMS offers volume pricing for spare parts programs — contact our sales team to discuss a tailored inventory agreement aligned to your planned maintenance schedule.
