Bosch Rexroth CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW Ruggedized Servo Control Module for Harsh Environments

Product Overview

Bosch Rexroth CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW Ruggedized Servo Control Module for Harsh Environments

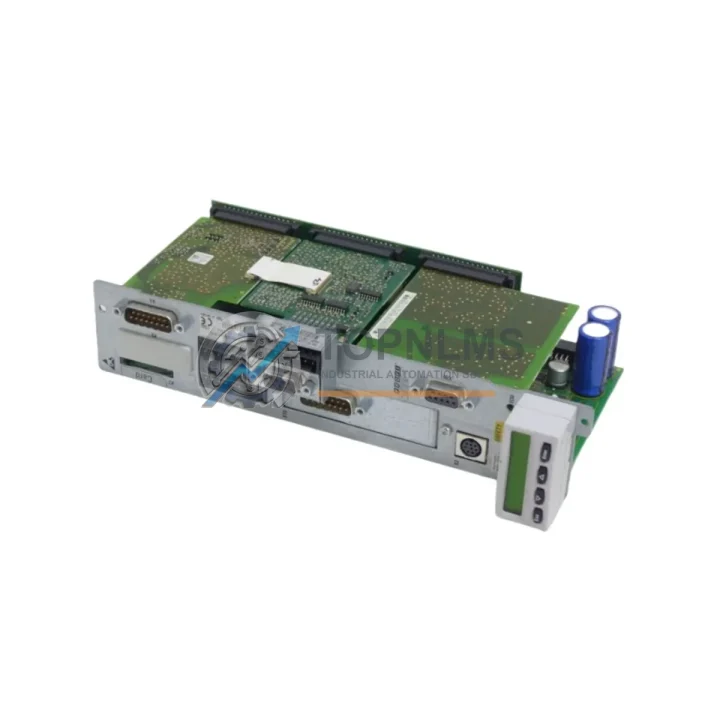

The Bosch Rexroth CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW is a compact, high-performance servo drive control unit from the IndraDrive Cs series — engineered to deliver precise motion control and unwavering reliability in the most demanding industrial environments. Whether deployed on a continuous automotive assembly line, inside a sealed control cabinet in a coastal chemical plant, or integrated into a high-vibration mining conveyor system, this unit maintains stable closed-loop servo performance where lesser drives fail.

Designed with industrial resilience at its core, the CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW features a ruggedized housing and internal architecture that resists electromagnetic interference (EMI), voltage transients, and thermal stress — making it a trusted choice for engineers specifying motion control solutions in oil & gas, power generation, water treatment, metallurgy, and heavy manufacturing sectors.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the servo drive does not operate in isolation. The CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW is designed to integrate seamlessly within a broader Bosch Rexroth IndraDrive ecosystem. It communicates natively over SERCOS II with higher-level controllers such as the Bosch Rexroth IndraMotion MLC motion logic controller, enabling synchronized multi-axis coordination across complex machine platforms.

On the power supply side, the unit pairs with Bosch Rexroth HMV01 and HMV02 supply units, which provide regulated DC bus power and regenerative feedback capability — critical for energy efficiency in high-cycle applications. For installations requiring distributed I/O, the Rexroth Inline I/O modules (compatible with the SERCOS and PROFIBUS backplane) extend digital and analog signal handling without introducing noise into the servo feedback loop.

In control cabinet configurations, the CSH01.1C is typically installed alongside Bosch Rexroth HCS01 or HCS02 compact converter units, sharing a common DC bus rail to reduce overall cabinet footprint and wiring complexity. Terminal modules such as the Rexroth R-IB IL 24 DI 8/HD-PAC provide structured I/O termination, while Weidmüller or Phoenix Contact terminal blocks are commonly used for field wiring consolidation within the same enclosure.

For safety-critical applications, the CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW supports integration with Bosch Rexroth SafeMotion safety modules, enabling STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) functions in compliance with IEC 62061 and ISO 13849-1 PLd/SIL2 requirements. This makes it suitable for machinery requiring certified functional safety without external safety relays.

Communication redundancy is achievable by pairing the drive with Rexroth SERCOS III gateway modules or PROFINET/EtherNet/IP communication cards, allowing the IndraDrive Cs to participate in plant-wide DCS or SCADA networks. When combined with a Siemens S7-300 or S7-1500 PLC via a SERCOS-to-PROFIBUS gateway, the drive can be supervised remotely, enabling predictive maintenance data collection and alarm management from a central HMI.

Application in Critical Infrastructure

In oil and gas upstream operations, the CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW is deployed in wellhead pump jack controllers and pipeline valve actuator systems, where continuous duty cycles and exposure to hydrogen sulfide (H₂S) atmospheres demand drives with robust sealing and corrosion-resistant internal coatings. The drive’s EMI shielding ensures stable SERCOS communication even in environments saturated with variable-frequency interference from nearby VFD-driven compressors.

In coal and mineral mining, conveyor belt servo systems rely on the IndraDrive Cs platform for precise tension control and soft-start/stop sequencing. The drive’s vibration tolerance — validated against IEC 60068-2-6 — ensures that mechanical shock from blasting operations or heavy haul equipment does not corrupt encoder feedback or cause nuisance trips. Replacement of aging drives on legacy conveyor lines is simplified by the CSH01.1C’s backward compatibility with existing SERCOS II infrastructure.

In power generation and grid substations, servo-driven valve positioners and turbine governor actuators require sub-millisecond response times and zero tolerance for unplanned downtime. The CSH01.1C’s closed-loop torque control and integrated diagnostic registers allow plant engineers to monitor drive health via the SERCOS parameter channel, enabling condition-based maintenance scheduling without production interruption.

In water and wastewater treatment facilities, the drive controls pump and mixer servo motors in chemically aggressive environments. Its IP20 rating, combined with proper cabinet sealing (IP54 or higher enclosure), protects internal electronics from chlorine vapor and high-humidity condensation cycles. The 12-month warranty coverage from TOPNLMS provides plant operators with a documented quality assurance baseline for regulatory compliance audits.

In metallurgical and steel rolling mills, where ambient temperatures regularly exceed 40°C and electromagnetic noise from arc furnaces is pervasive, the CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW’s thermal management design and CE-certified EMC compliance ensure continuous servo performance across multi-shift, 24/7 production schedules. Its compact form factor also simplifies hot-swap replacement during scheduled maintenance windows, minimizing mean time to repair (MTTR).

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All units shipped by TOPNLMS carry a 12-month warranty from the date of delivery. Coverage includes manufacturing defects, premature component failure under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after technical verification. Warranty documentation is issued with every shipment and is traceable by serial number.

Q2: How is each unit tested before shipment?
Every CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional verification, SERCOS communication handshake testing, and parameter read/write validation. Units that do not pass all checkpoints are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is this unit compatible with my existing IndraDrive Cs or SERCOS II infrastructure?
Yes. The CSH01.1C-SE-EN2-NNN-NNN-NN-S-NN-FW is a standard IndraDrive Cs single-axis control section with SERCOS II interface, compatible with all Bosch Rexroth IndraDrive Cs power sections (CSB, CDB series) and SERCOS II master controllers. It is a direct form-fit-function replacement for units of the same SKU. If you are upgrading from an older IndraDrive C variant, please contact our technical team to confirm firmware compatibility.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of IndraDrive Cs control units and related Bosch Rexroth components to support both planned procurement and emergency breakdown replacement scenarios. For critical infrastructure operators, we recommend establishing a framework agreement for priority allocation. Our team can typically confirm stock availability and dispatch within 24 hours of order confirmation. Contact us at [email protected] or +86 18359293191 for urgent requirements.
