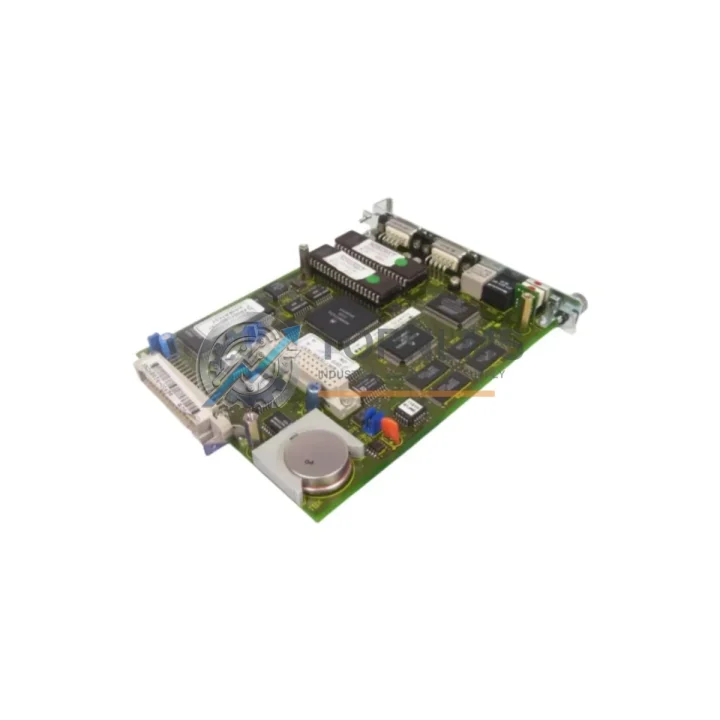

Bosch Rexroth CLC-D02.2 Ruggedized Positioning Control Module

Product Overview

Bosch Rexroth CLC-D02.2 Ruggedized Positioning Control Module: Industrial Resilience for Harsh Environments

The Bosch Rexroth CLC-D02.2 is a high-performance positioning control card engineered for the DIAX04 servo drive platform — one of Bosch Rexroth’s most proven and widely deployed digital AC servo drive families in global industrial automation. Designed to operate reliably under the demanding conditions of continuous production lines, heavy industry, and safety-critical infrastructure, the CLC-D02.2 delivers precise closed-loop positioning control with the robustness expected from Bosch Rexroth’s industrial-grade engineering heritage.

In environments where temperature extremes, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference are daily realities — such as steel mills, mining operations, offshore platforms, and chemical processing plants — the CLC-D02.2 maintains stable servo axis control without compromise. Its ruggedized PCB construction, conformal coating, and EMC-compliant design ensure that positioning accuracy and drive communication integrity are preserved even in the harshest plant-floor conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The CLC-D02.2 does not operate in isolation — it is the intelligence layer within a broader DIAX04 servo drive system. In a typical control cabinet installation, the CLC-D02.2 card slots into the Bosch Rexroth HDS04 or HDD04 main drive unit, working in concert with the HMS04 mains supply module to ensure clean, regulated DC bus power. Upstream, a Bosch Rexroth HNS02 or HNF01 power supply module conditions incoming three-phase power, protecting the entire drive train from voltage transients and harmonic disturbances common in heavy industrial environments.

For multi-axis machine tool or press-line applications, the CLC-D02.2 communicates over a SERCOS II fiber-optic ring with the host CNC or PLC — typically a Bosch Rexroth IndraMotion MTX or a third-party controller such as a Siemens SINUMERIK 840D or Fanuc Series 30i. The fiber-optic SERCOS bus provides inherent immunity to electromagnetic interference, making it the preferred communication architecture in environments with large variable-frequency drives, arc welders, or high-current switching equipment operating nearby.

Within the control cabinet, the CLC-D02.2 system is typically complemented by Bosch Rexroth DAE01 or DAE02 encoder interface modules, which relay high-resolution feedback from linear scales or rotary encoders back to the positioning card. Safety-rated I/O — such as a Pilz PNOZ safety relay or a Sick Flexi Soft safety controller — interfaces with the drive’s STO (Safe Torque Off) input to provide IEC 62061-compliant machine safety without interrupting the SERCOS communication ring. Terminal modules and Phoenix Contact CLIPLINE or Weidmüller KLIPPON terminal blocks complete the cabinet wiring, ensuring reliable signal integrity at every connection point.

For facilities running mixed automation architectures, the CLC-D02.2 can be integrated alongside Bosch Rexroth Rexroth IndraDrive Cs or Mi series drives via coordinated motion profiles managed at the PLC level, enabling a phased modernization strategy without requiring a full system replacement.

Application in Critical Infrastructure

The Bosch Rexroth CLC-D02.2 has established a strong track record across the most demanding sectors of critical industrial infrastructure. In steel and metals processing, it governs the precise positioning of rolling mill stands, coiler mandrels, and shear lines — applications where positioning repeatability directly impacts product quality and yield. In mining and mineral processing, the card controls conveyor drive positioning systems and crusher feed mechanisms that must operate continuously in high-dust, high-vibration environments with minimal unplanned downtime.

In oil and gas upstream and midstream facilities, the CLC-D02.2 is deployed in wellhead pump drive systems and pipeline compressor stations, where the combination of explosive atmosphere proximity, wide ambient temperature swings, and remote location demands absolute reliability from every control component. Power generation applications — including turbine governor control and boiler feed pump drives — rely on the DIAX04 platform’s proven stability under continuous-duty, high-cycle operation.

In water and wastewater treatment plants, the card manages pump and blower drive positioning in environments characterized by high humidity, corrosive chemical vapors, and 24/7 operational requirements. Automotive press lines and body-in-white welding systems depend on the CLC-D02.2’s sub-millisecond positioning response to maintain cycle times and weld quality across multi-shift production schedules. Across all these sectors, the availability of a genuine, tested replacement CLC-D02.2 from a reliable spare-parts supplier is a critical element of any plant’s maintenance and business-continuity strategy.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every CLC-D02.2 shipped by TOPNLMS carries a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. If the module fails within the warranty period, we provide a replacement unit or full refund after technical verification. Our warranty process is straightforward: contact us with the order reference and a description of the fault, and we will coordinate the return and replacement logistics promptly.

Q2: How is each unit tested before shipment?
All CLC-D02.2 cards undergo a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, board-level continuity testing, and functional verification on a compatible DIAX04 drive test bench where applicable. Units that do not pass our quality gate are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is the CLC-D02.2 compatible with all DIAX04 drive variants and firmware versions?
The CLC-D02.2 is designed for the Bosch Rexroth DIAX04 platform and is compatible with HDS04, HDD04, and related drive units. Firmware compatibility depends on the drive’s installed software version; we recommend confirming the existing drive firmware revision before ordering. Our technical team can assist with compatibility verification — contact us with your drive nameplate data and we will advise accordingly.

Q4: Can TOPNLMS support long-term or repeat supply of the CLC-D02.2?
Yes. TOPNLMS maintains ongoing inventory of the CLC-D02.2 and other DIAX04 series components to support planned maintenance programs, emergency breakdowns, and capital project builds. We can accommodate blanket purchase orders, scheduled releases, and priority reservation for customers with high-volume or time-critical requirements. Contact our sales team to discuss a supply agreement tailored to your facility’s maintenance schedule.
