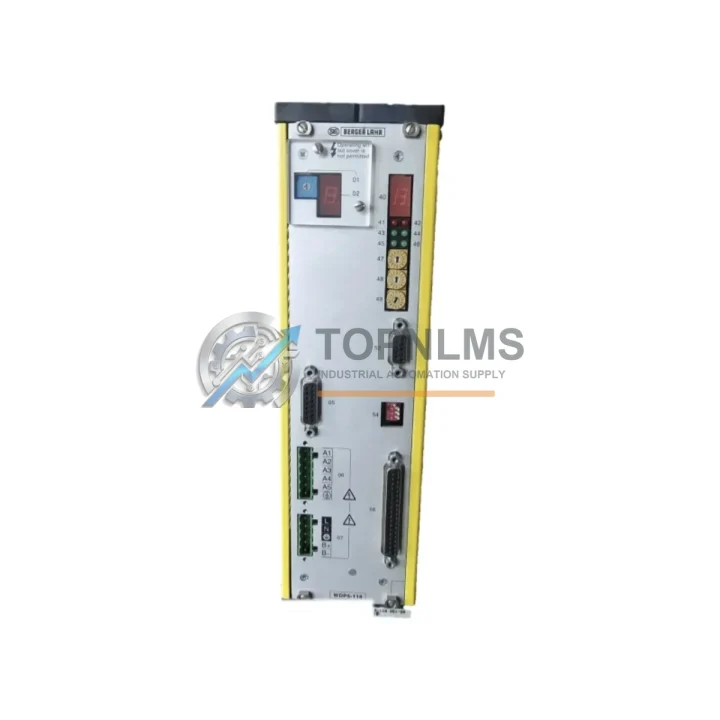

BERGER LAHR WDP5-118.051-00 Ruggedized Stepper Drive for Harsh Environments

Product Overview

BERGER LAHR WDP5-118.051-00 Ruggedized Stepper Drive for Harsh Environments

The BERGER LAHR WDP5-118.051-00 is a high-performance stepper drive module from the proven WDP5 series, engineered to deliver precise motion control under the most demanding industrial conditions. Designed for continuous operation in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference, this drive module represents the benchmark for reliability in heavy-industry automation. Whether deployed on a continuous production line, integrated into a safety-critical control cabinet, or installed in a remote field panel, the WDP5-118.051-00 maintains stable, accurate step-pulse execution without compromise.

Built to German engineering standards, the WDP5-118.051-00 delivers consistent torque output and smooth microstepping resolution across its full operating range. Its robust internal architecture suppresses conducted and radiated EMI, protecting adjacent control components and ensuring signal integrity even in electrically noisy plant environments. The module’s thermal management design allows sustained operation at elevated ambient temperatures, making it equally suited to enclosed control cabinets and open-frame machine panels in foundries, chemical processing plants, and offshore installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The WDP5-118.051-00 is rarely deployed in isolation. In a fully integrated motion control architecture, it operates alongside complementary BERGER LAHR components and third-party industrial automation hardware to form a cohesive, fault-tolerant system. In typical control cabinet configurations, the drive is paired with a BERGER LAHR WD3-007.0640 stepper motor or equivalent WD3-series motor, with the WDP5 drive handling all current regulation, microstepping, and protection functions autonomously.

For system-level coordination, the WDP5-118.051-00 accepts step and direction signals from upstream Schneider Electric Modicon M340 PLC or Modicon Premium PLC motion controllers, enabling seamless integration into existing Schneider automation architectures without additional signal conditioning. Where multi-axis synchronization is required, the drive can be coordinated through a BERGER LAHR POSIDRIVE FDS 5000 motion controller, which manages trajectory planning and axis interpolation across multiple WDP5 drives simultaneously.

Power supply integrity is critical in harsh environments. The WDP5-118.051-00 is typically powered by a Schneider Electric ABL8 series 24 VDC regulated power supply or equivalent industrial DIN-rail PSU with active PFC and output hold-up time sufficient to ride through brief mains disturbances. Upstream protection is provided by Schneider Electric Acti9 iC60N circuit breakers and Schneider Electric Acti9 iID residual current devices, ensuring the drive is protected against overcurrent and earth-fault conditions.

In safety-instrumented systems, the WDP5-118.051-00 is installed alongside Schneider Electric Preventa XPSAF safety relay modules, which monitor emergency-stop circuits and gate-interlock signals, cutting drive enable inputs within the required SIL 2 response time. Communication between the safety layer and the main PLC is handled via Schneider Electric CANopen communication modules or Profibus DP interface cards, depending on the plant’s fieldbus standard. Terminal connections within the cabinet are made through Phoenix Contact PTFIX distribution terminal blocks, providing reliable, vibration-resistant wiring termination that withstands the mechanical stress common in mining and heavy-press applications.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the WDP5-118.051-00 drives precision valve actuators and metering pump mechanisms where positional accuracy directly affects process safety and regulatory compliance. Its EMC-hardened design ensures reliable step-pulse reception even in the presence of high-power variable-frequency drives and large transformer installations common on offshore platforms and onshore compression stations.

In mining and mineral processing, the module controls conveyor positioning systems, ore-sampling mechanisms, and drill-feed axes. The drive’s thermal robustness allows it to operate continuously in poorly ventilated underground galleries and surface processing buildings where ambient temperatures regularly exceed 45 °C during summer operations.

In power generation and electrical utilities, the WDP5-118.051-00 is used in turbine governor test rigs, transformer tap-changer positioning systems, and switchgear actuator test benches. Its precise microstepping capability enables sub-degree angular positioning, which is essential for calibration and functional testing of high-voltage switching equipment.

In water and wastewater treatment facilities, the drive controls chemical dosing pump heads, filter backwash valve actuators, and UV-disinfection lamp positioning carriages. The module’s resistance to high-humidity environments — common in pump stations and wet-well control rooms — ensures long service intervals and low unplanned downtime.

In metallurgy and steel production, the WDP5-118.051-00 is integrated into rolling-mill gap-control systems and ladle-transfer positioning mechanisms. The drive’s ability to maintain accurate step counts under vibration loads generated by heavy rolling equipment makes it a preferred choice for process engineers specifying motion control components in greenfield and brownfield steel plant projects.

Security & Quality FAQ

Q1: Does the WDP5-118.051-00 come with a warranty, and what does it cover?
Yes. Every WDP5-118.051-00 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing — including output current verification, step-pulse response, and thermal cycling — before dispatch. Warranty claims are processed with priority turnaround to minimize plant downtime.

Q2: How is compatibility with my existing PLC or motion controller verified?
The WDP5-118.051-00 accepts industry-standard step/direction pulse inputs (5 V or 24 V logic selectable), making it compatible with the digital output modules of all major PLC platforms including Schneider Electric Modicon, Siemens S7, Allen-Bradley ControlLogix, and Mitsubishi MELSEC series. Our technical team can review your existing wiring diagrams and I/O specifications prior to order confirmation to ensure drop-in compatibility.

Q3: What is the lead time, and can long-term supply continuity be guaranteed?
Stock units ship within 3–5 business days from our Xiamen warehouse. For project-scale requirements, we offer scheduled delivery agreements and reserved-stock arrangements to ensure continuity of supply throughout multi-year plant maintenance contracts. The WDP5 series remains a supported product line, and we maintain buffer stock specifically to support legacy system operators who depend on this drive for ongoing production.
