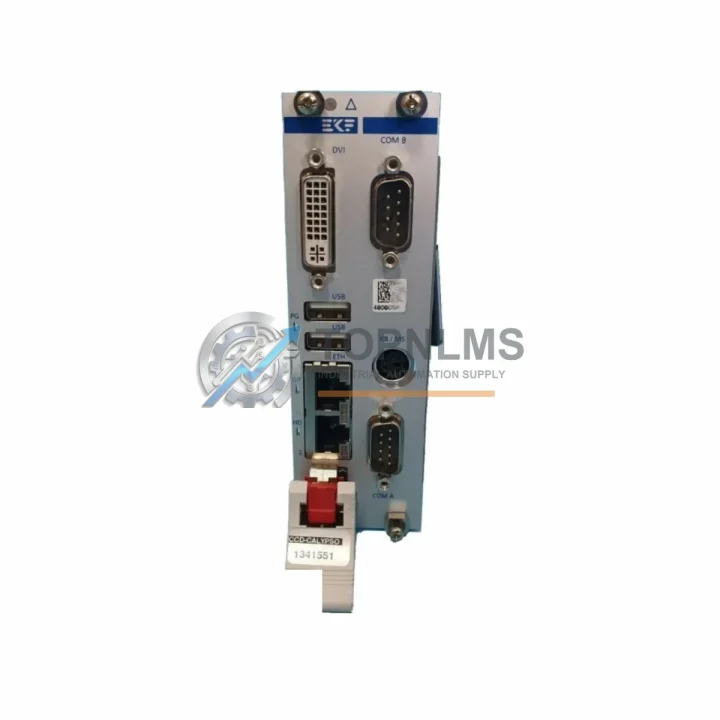

Berger Lahr CCD-98R.CALYPSO Ruggedized Servo Amplifier Module

Product Overview

Berger Lahr CCD-98R.CALYPSO Ruggedized Servo Amplifier Module: Industrial Resilience for Harsh Environments

The Berger Lahr CCD-98R.CALYPSO is a high-performance servo amplifier drive unit from the renowned CALYPSO Series, engineered to deliver precise motion control and sustained reliability in the most demanding industrial environments. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical facility, or integrated into a multi-axis CNC machining center, this servo drive is built to perform where standard components fail. Its ruggedized design addresses the core challenges of industrial automation: high ambient temperatures, humidity, airborne particulates, mechanical vibration, and electromagnetic interference — all without compromising positioning accuracy or dynamic response.

Designed for seamless integration with Berger Lahr’s broader motion control ecosystem, the CCD-98R.CALYPSO operates as the power and intelligence bridge between a PLC or DCS controller and the servo motor. In architectures where a Berger Lahr WDPM3-008 servo motor or compatible brushless AC servo motor is paired with a higher-level controller such as a Schneider Electric Modicon M340 PLC or a Siemens S7-300 CPU, this amplifier ensures closed-loop feedback is maintained with microsecond-level precision — even under load fluctuations typical of heavy stamping presses or injection molding machines.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the servo amplifier does not operate in isolation — it is one node in a tightly integrated system of protection, control, and communication components. The Berger Lahr CCD-98R.CALYPSO is designed to coexist reliably with the full spectrum of automation hardware found in today’s control cabinets and field panels.

On the power side, a properly sized industrial power supply — such as a Schneider Electric Phaseo ABL series or a Phoenix Contact QUINT-PS unit — ensures the amplifier receives clean, regulated DC bus voltage even during grid fluctuations common in heavy industrial facilities. Upstream, a line filter module and EMC choke suppress conducted emissions and protect the drive from voltage spikes generated by neighboring variable frequency drives (VFDs) or large motor starters on the same bus.

For safety-critical applications, the CCD-98R.CALYPSO integrates with safety relay modules and SIL-rated safety PLCs — for example, a Pilz PNOZ or Schneider Electric Preventa XPS safety module — to implement Safe Torque Off (STO) or Safe Stop 1 (SS1) functions in compliance with IEC 62061 and ISO 13849. This is essential in robotic cells, press lines, and any machinery where unexpected motion poses a risk to personnel.

On the communication side, the amplifier’s RS-485 port allows integration with Modbus RTU networks, enabling parameter monitoring and fault diagnostics from a central SCADA system or HMI panel. In more complex architectures, a fieldbus communication module — such as a PROFIBUS DP adapter or CANopen gateway — can bridge the servo drive into a broader Siemens SIMATIC or Rockwell ControlLogix control network. Terminal blocks from the Phoenix Contact PTFIX or Weidmüller Klippon series provide reliable field wiring termination within the control cabinet, maintaining signal integrity even under continuous vibration.

For I/O expansion, the CCD-98R.CALYPSO’s digital and analog I/O interface points connect directly to distributed I/O modules — such as Schneider Electric TM3 expansion modules or Beckhoff EtherCAT I/O terminals — allowing the servo axis to be coordinated with sensors, limit switches, and actuators across the production line without additional signal conditioning hardware.

Application in Critical Infrastructure

The Berger Lahr CCD-98R.CALYPSO has established a proven track record across the most demanding sectors of critical infrastructure, where unplanned downtime carries severe operational and financial consequences.

In oil and gas processing facilities, servo-driven valve actuators and metering pump drives must maintain precise positioning under high ambient temperatures and in the presence of corrosive gases. The CALYPSO amplifier’s robust thermal management and sealed enclosure compatibility make it a preferred choice for these environments, where it controls actuator positioning on pipeline control valves and compressor inlet guide vanes.

In mining and mineral processing, the drive is deployed in conveyor positioning systems, ore sorting machinery, and drill rig feed mechanisms. Continuous exposure to coal dust, silica particulates, and mechanical shock demands a servo amplifier with superior vibration damping in its control algorithms — a hallmark of the CALYPSO Series’ adaptive gain tuning.

In power generation plants — including thermal, hydroelectric, and wind energy facilities — the CCD-98R.CALYPSO controls pitch actuators, turbine governor linkages, and auxiliary positioning systems. Its EMC compliance ensures stable operation in environments saturated with high-frequency switching noise from large power converters and transformer banks.

In water and wastewater treatment, servo drives control dosing pump mechanisms, filter press actuators, and sluice gate positioning systems. The amplifier’s ability to maintain torque accuracy at low speeds is critical for precise chemical dosing and flow regulation.

In metallurgy and steel production, the drive is integrated into rolling mill positioning systems, ladle transfer cars, and continuous casting machine drives, where it must sustain reliable operation under intense radiated heat and electromagnetic fields generated by induction furnaces and arc welding equipment.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Berger Lahr CCD-98R.CALYPSO?
Every unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional defects under normal operating conditions. In the event of a warranty claim, we provide technical diagnosis support and replacement dispatch within agreed lead times to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
All Berger Lahr CCD-98R.CALYPSO units undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical integrity, power-on functional verification, communication interface testing, and parameter read/write validation. Refurbished units additionally undergo load cycle testing and thermal soak to confirm sustained performance. A test report is available upon request.

Q3: Is the CCD-98R.CALYPSO compatible with my existing Berger Lahr or Schneider Electric system?
Yes. The CCD-98R.CALYPSO is a native CALYPSO Series component and is fully compatible with Berger Lahr CALYPSO Series servo motors and associated accessories. It is also compatible with Schneider Electric motion control platforms that share the CALYPSO architecture. For cross-brand integration with Siemens, Rockwell, or Mitsubishi PLC systems, standard analog or pulse-direction interfaces are supported. Contact our technical team with your system architecture for a compatibility confirmation before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this model?
Yes. TOPNLMS maintains dedicated inventory of legacy and current-generation Berger Lahr components, including the CCD-98R.CALYPSO, to support ongoing MRO (Maintenance, Repair & Operations) procurement. We understand that industrial facilities often require consistent spare parts availability over multi-year maintenance cycles. Blanket order arrangements and priority stock reservation are available for qualified customers. Contact us at [email protected] or call +86 18359293191 to discuss your supply requirements.
