Bently Nevada SDCS-PIN-51-COAT Ruggedized Signal Conditioning Module

Product Overview

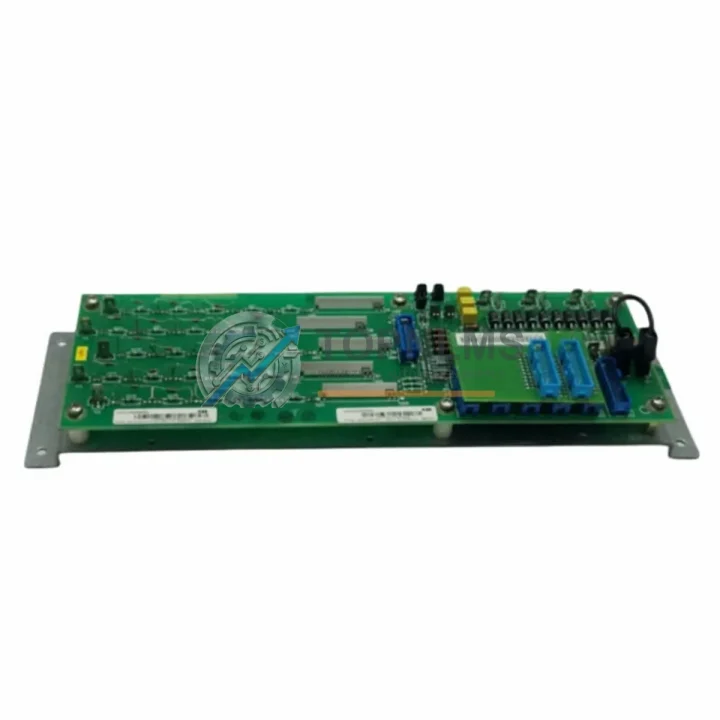

Bently Nevada SDCS-PIN-51-COAT Ruggedized Signal Conditioning Module for Harsh Industrial Environments

The Bently Nevada SDCS-PIN-51-COAT is a precision signal conditioning measurement card engineered for the Bently Nevada 3500 Series machinery protection system — one of the most trusted continuous vibration monitoring platforms deployed across critical industrial infrastructure worldwide. Designed to operate reliably under extreme thermal stress, high-humidity exposure, heavy particulate contamination, mechanical shock, and intense electromagnetic interference, this module delivers the measurement accuracy and signal integrity that safety-critical applications demand without compromise.

In oil refineries, offshore platforms, underground mining operations, thermal power stations, water treatment facilities, and heavy metallurgical plants, rotating machinery failures can cascade into catastrophic production losses or life-safety incidents. The SDCS-PIN-51-COAT addresses this risk directly: its conformal coating provides a robust barrier against moisture ingress and corrosive airborne contaminants, while its shielded signal path maintains measurement fidelity even in environments saturated with variable-frequency drive harmonics, high-voltage switching transients, and radio-frequency noise from nearby communications equipment.

Within the 3500 Series rack architecture, the SDCS-PIN-51-COAT interfaces seamlessly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor Monitor to condition raw proximity probe signals before they reach the monitor cards. This clean signal handoff is essential for accurate shaft displacement, eccentricity, and differential expansion measurements on turbines, compressors, pumps, and gearboxes. When paired with the 3500/22M Transient Data Interface, the module supports high-resolution transient capture during machine startup and coast-down — data that is indispensable for predictive maintenance programs and root-cause failure analysis.

The SDCS-PIN-51-COAT is equally at home in control cabinet environments where it must coexist with Bently Nevada 3500/15 Power Supply modules, 3500/20 Rack Interface Modules, and 3500/32 4-Channel Relay Modules. Its low power consumption and stable thermal profile prevent localized hot spots inside densely populated enclosures, preserving the operational integrity of adjacent I/O modules, safety relay cards, and communication interface modules. In installations where the 3500 rack communicates upstream to a DCS or safety instrumented system via Bently Nevada 3500/92 Communication Gateway or Modbus/TCP links, the SDCS-PIN-51-COAT’s signal conditioning accuracy directly determines the quality of process data reaching the control layer — making it a foundational component in any IEC 61511-compliant safety loop.

For facilities running mixed-vendor automation architectures, the module’s standardized signal output is compatible with third-party monitor cards and can feed conditioned signals into Siemens S7-series PLCs, Rockwell ControlLogix I/O modules, or Emerson DeltaV safety controllers without additional signal conversion hardware. This interoperability reduces integration complexity and shortens commissioning time in brownfield retrofit projects where legacy Bently Nevada 3500 racks are being integrated into modern distributed control systems.

Procurement teams and maintenance engineers will find the SDCS-PIN-51-COAT a reliable, cost-effective spare-parts investment. Its direct form-fit-function compatibility with the original Bently Nevada 3500 Series specification means zero firmware reconfiguration is required upon installation — a critical advantage during unplanned shutdowns where minimizing mean time to repair is the overriding priority. TOPNLMS maintains verified stock of this module, with each unit subjected to functional verification testing prior to dispatch. All units ship with full traceability documentation and are covered by a 12-month quality warranty from the date of delivery.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDCS-PIN-51-COAT does not operate in isolation — it is one node in a layered machinery protection architecture. In a fully configured 3500 Series rack, the module works in concert with the Bently Nevada 3500/15 Power Supply, which provides clean, regulated DC power to all rack-mounted cards and ensures that voltage transients from the plant power distribution network never reach sensitive measurement circuitry. The 3500/20 Rack Interface Module manages rack-level communications and system status, while the 3500/32 4-Channel Relay Module translates monitor alarm states into hardwired trip signals that can actuate emergency shutdown valves, de-energize motor starters, or trigger safety instrumented system inputs.

For facilities requiring high-channel-count vibration monitoring, the SDCS-PIN-51-COAT is typically deployed alongside multiple 3500/42M Proximitor/Seismic Monitor cards, each handling up to four measurement channels. Where axial position and differential expansion monitoring are required — common in large steam turbine trains — the 3500/45 Position Monitor complements the signal conditioning function of the SDCS-PIN-51-COAT by providing dedicated thrust position measurement. Communication to the plant DCS or historian is handled by the 3500/92 Communication Gateway, which supports Modbus, Ethernet/IP, and OPC protocols, ensuring that conditioned vibration data reaches the control room in real time.

In control cabinet installations, the SDCS-PIN-51-COAT coexists with industrial power supplies, terminal modules, and safety relay assemblies. Proper cabinet thermal management — achieved through forced-air cooling units and strategically placed thermal barriers — is essential to maintaining the module’s long-term measurement accuracy. TOPNLMS can advise on compatible cabinet accessories and spare-parts kits to support planned maintenance intervals.

Application in Critical Infrastructure

The SDCS-PIN-51-COAT is deployed across the most demanding sectors of global industrial infrastructure. In oil and gas upstream and midstream facilities, it conditions proximity probe signals from high-speed centrifugal compressors and gas turbines operating in hydrocarbon-rich, potentially explosive atmospheres where measurement reliability is directly linked to process safety. Offshore platform installations subject the module to salt-laden air, persistent vibration from wave action, and wide ambient temperature swings — conditions that the conformal coating and robust signal path are specifically engineered to withstand.

In thermal and nuclear power generation, the module monitors shaft displacement and bearing vibration on steam turbine-generator sets operating continuously at rated load for months between planned outages. Any measurement dropout or false alarm in this context carries significant economic and safety consequences, making the SDCS-PIN-51-COAT’s proven reliability a non-negotiable procurement criterion. Mining and mineral processing operations deploy the module on large ball mills, SAG mills, and primary crushers where dust concentrations, ground-borne vibration, and electrical noise from high-power drives create a hostile measurement environment that standard uncoated cards cannot reliably survive.

Water and wastewater treatment facilities rely on the module to protect large vertical turbine pumps and blower trains operating in high-humidity, chemically aggressive environments. In metallurgical and steel production plants, the SDCS-PIN-51-COAT monitors rolling mill drive trains and continuous casting machine drives where thermal radiation, scale dust, and high-current bus bars generate extreme electromagnetic interference. Across all these sectors, the module’s ability to deliver clean, accurate signals under sustained harsh-environment exposure translates directly into reduced unplanned downtime, lower maintenance costs, and improved plant safety outcomes.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the SDCS-PIN-51-COAT?
All SDCS-PIN-51-COAT units sold by TOPNLMS are covered by a 12-month quality warranty from the date of delivery. If a unit exhibits any functional defect within the warranty period under normal operating conditions, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed with full traceability documentation.

Q2: How is each unit tested before shipment?
Every SDCS-PIN-51-COAT undergoes functional verification testing prior to dispatch. Our quality control process checks signal conditioning performance, connector integrity, and conformal coating condition. Units that do not meet specification are quarantined and not shipped. Buyers receive a test-passed confirmation with each order.

Q3: Is the SDCS-PIN-51-COAT compatible with my existing 3500 Series rack and third-party DCS?
Yes. The SDCS-PIN-51-COAT is a direct form-fit-function replacement for the original Bently Nevada specification and requires no firmware changes upon installation in any standard 3500 Series rack. Its conditioned analog output is compatible with third-party DCS and PLC I/O modules from Siemens, Rockwell Automation, Emerson, and Honeywell, making it suitable for both OEM replacement and brownfield integration projects.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
TOPNLMS maintains verified stock of the SDCS-PIN-51-COAT and can fulfill both planned spare-parts orders and emergency replacement requests. Standard orders ship within 1–3 business days. For facilities with critical uptime requirements, we recommend establishing a standing spare-parts agreement to ensure immediate availability during unplanned shutdowns. Contact our technical team at [email protected] or +86 18359293191 to discuss volume pricing and long-term supply arrangements.
