Bently Nevada 200150-21-CN Replacement for TrendMaster Pro

Product Overview

Bently Nevada 200150-21-CN Replacement for TrendMaster Pro: Seamless Migration & Legacy System Upgrade

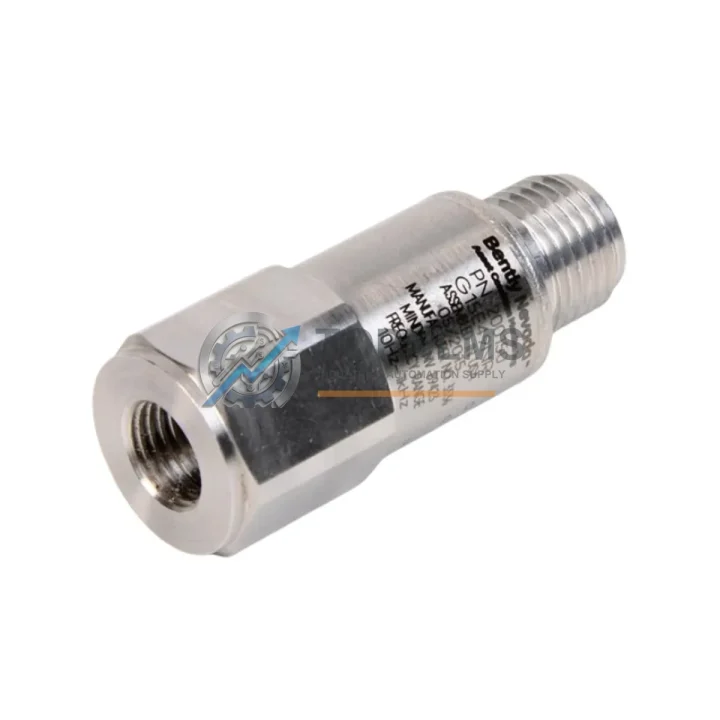

The Bently Nevada 200150-21-CN is a high-performance accelerometer module designed for the TrendMaster Pro continuous online monitoring system. As legacy vibration monitoring infrastructure ages across refineries, power plants, compressor stations, and rotating machinery facilities, the 200150-21-CN has become a critical replacement and upgrade component for engineers managing the transition from discontinued or end-of-life condition monitoring hardware.

Whether your facility is migrating from an older Bently Nevada 3300 Series proximity probe system, retiring a 7200 Series rack-based monitor, or consolidating multiple standalone vibration transmitters into a unified TrendMaster Pro architecture, the 200150-21-CN accelerometer provides a direct, field-proven upgrade path. Its compatibility with the TrendMaster Pro I/O module framework means that existing cable runs, junction boxes, and terminal wiring can often be retained with minimal modification — significantly reducing installation labor and machine downtime during the retrofit.

The 200150-21-CN operates as an integral element within the TrendMaster Pro distributed monitoring architecture. It interfaces directly with the TrendMaster Pro I/O Module (commonly the 3500/42M or equivalent slot-based I/O card) via standard 4-wire shielded instrumentation cable. Engineers migrating from legacy Bently Nevada 330100 or 330101 proximity probes will find that the accelerometer’s signal conditioning is handled internally, eliminating the need for external signal conditioners or Proximitor® sensor housings that were required in older installations.

For facilities running a Bently Nevada 3500 Series rack alongside TrendMaster Pro, the 200150-21-CN can be integrated into a hybrid monitoring strategy. The 3500 rack’s 3500/22M Transient Data Interface and 3500/40M Proximitor/Seismic Monitor modules remain compatible with the broader system architecture, allowing a phased migration where critical machines are upgraded to TrendMaster Pro monitoring while legacy 3500 channels are maintained for non-critical assets.

Communication protocol compatibility is a key advantage of the 200150-21-CN in modernization projects. The TrendMaster Pro system supports Modbus RTU, Modbus TCP/IP, and OPC DA/UA data export, enabling seamless integration with modern DCS platforms such as Emerson DeltaV, Honeywell Experion PKS, and ABB 800xA. Facilities previously relying on proprietary serial communication from older Bently Nevada hardware can transition to standard industrial Ethernet protocols without replacing the entire monitoring infrastructure.

Physical installation compatibility is another critical factor in migration planning. The 200150-21-CN mounts directly to standard machine housings using M8 or 1/4-28 UNF threaded stud configurations, consistent with the mounting footprint of legacy Bently Nevada accelerometers. Control cabinet space requirements are minimal — the TrendMaster Pro I/O module occupies a standard DIN rail slot, and the associated TrendMaster Pro Power Supply Module (24 VDC input) can be shared across multiple I/O channels, reducing panel real estate compared to older multi-chassis monitoring systems.

For sites decommissioning a Bently Nevada 1900/65A general-purpose vibration transmitter or retiring a Bently Nevada 2300/16 machinery protection monitor, the 200150-21-CN offers a direct functional replacement with enhanced dynamic range and improved frequency response. The accelerometer’s integrated electronics eliminate the need for separate signal conditioning enclosures, simplifying the overall system bill of materials and reducing potential failure points in the field wiring loop.

Procurement teams should note that the 200150-21-CN is stocked and available for immediate dispatch from our Xiamen warehouse. All units undergo pre-shipment functional verification including sensitivity calibration check, insulation resistance test, and connector integrity inspection. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the Bently Nevada 200150-21-CN typically involves coordinating several complementary components within the TrendMaster Pro ecosystem. The TrendMaster Pro I/O Module serves as the primary interface card, accepting accelerometer inputs and converting them to digital data for the system controller. The TrendMaster Pro Power Supply Module (24 VDC) provides regulated power to multiple I/O channels from a single DIN rail-mounted unit, replacing the bulkier power distribution assemblies found in older 3500 Series racks.

For sites that need to maintain Modbus RTU communication to a legacy SCADA host during the transition period, the TrendMaster Pro Communication Gateway module provides simultaneous Modbus RTU and Ethernet output, allowing the new accelerometer data to be consumed by both the existing SCADA system and a new OPC UA historian without requiring a parallel wiring infrastructure.

Field wiring termination is simplified through the use of TrendMaster Pro Terminal Blocks and associated marshalling panels, which accept standard 0.5–2.5 mm² instrumentation cable. Engineers replacing a Bently Nevada 3500/42M Proximitor/Seismic Monitor will find that the existing shielded twisted-pair cable runs can be re-terminated directly to the TrendMaster Pro I/O module terminal block without re-pulling cable — a significant cost saving on large rotating machinery installations with long cable runs to remote junction boxes.

Where signal isolation is required between the accelerometer loop and the DCS analog input card, a DIN rail signal isolator (4–20 mA loop-powered, ATEX-rated for hazardous area installations) can be inserted in-line without modifying the TrendMaster Pro I/O module configuration. This is particularly relevant for offshore platforms and petrochemical facilities where intrinsic safety barriers or galvanic isolators are mandated by site electrical area classification.

For facilities upgrading their HMI layer alongside the vibration monitoring system, the TrendMaster Pro system is compatible with standard OPC DA/UA clients, including Wonderware InTouch, iFIX, and Ignition SCADA, enabling real-time vibration trend display and alarm management without custom driver development. The Bently Nevada System 1 software platform can also be configured to consume TrendMaster Pro data via OPC, providing a unified asset performance management view across both legacy 3500 Series channels and new TrendMaster Pro accelerometer inputs.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a 330100 proximity probe with the 200150-21-CN accelerometer?
A: In most cases, yes. The 200150-21-CN uses a standard 4-wire shielded cable connection. If the existing cable is 18 AWG or heavier shielded twisted pair and the run length is within 300 meters, it can typically be re-terminated at the TrendMaster Pro I/O module terminal block. A wiring adapter or re-termination at the junction box may be required if the legacy cable used a Proximitor® connector.

Q: Is reprogramming of the DCS required after installing the 200150-21-CN?
A: The TrendMaster Pro system outputs standard Modbus or OPC UA data tags. If your DCS (DeltaV, Experion, 800xA) was previously reading 4–20 mA analog signals from a legacy transmitter, you will need to add a Modbus or OPC communication driver and remap the tag addresses. The physical I/O card in the DCS can often be freed up for other uses, as the TrendMaster Pro handles all signal conditioning digitally.

Q: What communication protocols does the 200150-21-CN / TrendMaster Pro support?
A: The TrendMaster Pro system supports Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), and OPC DA/UA. It does not natively support HART or FOUNDATION Fieldbus, so facilities using those protocols for other instruments should plan for a gateway or protocol converter if unified communication is required.

Q: How much control cabinet space does the TrendMaster Pro I/O module require compared to a 3500 Series rack?
A: A standard 3500 Series rack occupies approximately 3U to 7U of panel space depending on the number of monitor modules installed. The TrendMaster Pro I/O module mounts on a standard 35 mm DIN rail and occupies approximately 40 mm of rail width per module. For a 16-channel installation, the TrendMaster Pro solution typically requires 50–60% less panel space than an equivalent 3500 Series rack configuration.

Q: Can the 200150-21-CN be used as a direct spare for a machine currently monitored by a Bently Nevada 1900/65A transmitter?
A: The 200150-21-CN is not a pin-compatible drop-in for the 1900/65A, as the 1900/65A outputs a 4–20 mA signal to a standard analog input card. The 200150-21-CN requires a TrendMaster Pro I/O module as its host interface. However, the machine-side mounting and sensor footprint are compatible, and the migration can be completed during a planned maintenance window without machine modification.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Export documentation including commercial invoice, packing list, and certificate of origin is provided with each shipment.

Warranty Assurance

Every Bently Nevada 200150-21-CN accelerometer supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and premature component failure not attributable to mishandling, incorrect installation, or operation outside published specifications.

Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol including: sensitivity verification against factory calibration data, insulation resistance measurement between signal conductors and housing ground, connector pin integrity check, and visual inspection for physical damage. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim verification. Customers are not required to return the defective unit before the replacement is shipped for orders with documented installation records. After-sales technical support is available via email at [email protected] and by phone at +86 18359293191 during business hours (CST, Monday–Saturday).

For procurement teams requiring formal quality documentation, TOPNLMS can provide a Certificate of Conformance, material traceability records, and third-party inspection reports upon request at the time of order placement. These documents support IEC 61511, ISO 55000, and site-specific maintenance management system requirements.
