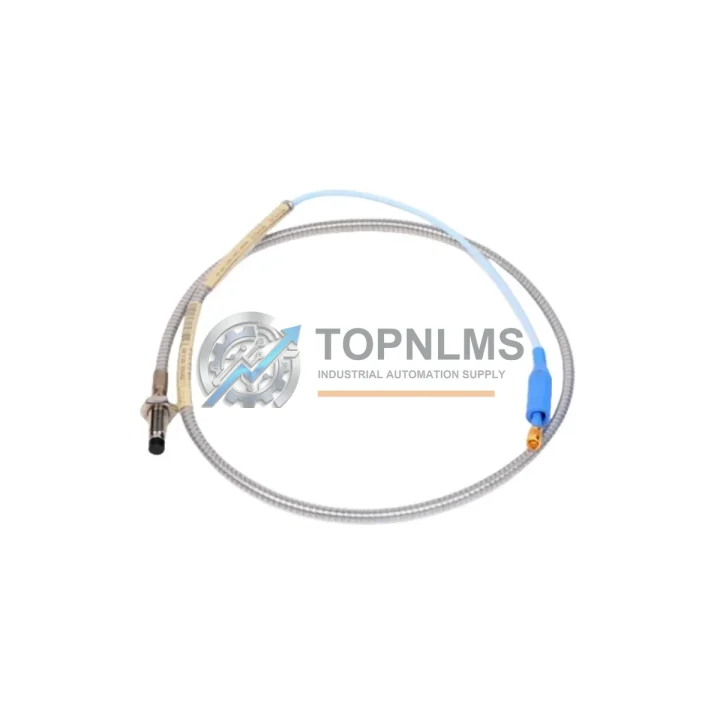

Bently Nevada 330104-10-16-05-01-00 Proximity Probe

Product Overview

Bently Nevada 330104-10-16-05-01-00 Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330104-10-16-05-01-00 is a precision eddy current proximity probe engineered for continuous, reliable operation in the most demanding industrial environments. As part of the renowned 3300 XL 10mm Proximity Transducer System, this probe delivers non-contact vibration and position measurement with exceptional accuracy, making it an indispensable component in rotating machinery protection and condition monitoring systems worldwide. Whether deployed in high-temperature turbine halls, moisture-laden compressor stations, or dust-heavy mining operations, the 330104-10-16-05-01-00 maintains signal integrity and measurement stability where conventional sensors fail.

Designed to interface seamlessly with the Bently Nevada 3300 XL series signal conditioning system — including the 330180 proximitor sensor and 3300/16 monitor modules — this probe forms the sensing backbone of complete machinery protection architectures. Its 5-meter armored extension cable and robust stainless-steel housing resist mechanical vibration, chemical exposure, and electromagnetic interference (EMI) from adjacent variable frequency drives, power transformers, and high-current bus bars commonly found in heavy industrial control cabinets.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection system, the 330104-10-16-05-01-00 proximity probe works in concert with a suite of complementary Bently Nevada components to deliver complete asset protection. The probe connects to the Bently Nevada 330180-51-05 proximitor sensor, which conditions the raw eddy current signal into a calibrated DC voltage output suitable for monitoring rack input. This signal is then processed by the Bently Nevada 3500/42M proximitor I/O module housed within the 3500 series monitoring rack — a modular platform that also accommodates the 3500/40M proximitor I/O, 3500/22M transient data interface, and 3500/15 power supply module for redundant power conditioning.

For facilities running parallel vibration and temperature monitoring, the 330104-10-16-05-01-00 is frequently installed alongside Bently Nevada 330130 series velocity transducers and 3300 XL 8mm proximity probes on smaller shaft diameters. In control cabinet environments where the probe signal must traverse long cable runs, proper grounding and shielding practices — consistent with Bently Nevada System 1 software integration guidelines — prevent ground loops and EMI-induced noise from corrupting the 200 mV/mil output. Safety relay modules and DCS I/O cards receiving the proximity signal benefit directly from the probe’s inherent noise immunity, ensuring that trip setpoints for radial vibration, axial position, and differential expansion are triggered only by genuine mechanical events, not electrical artifacts.

For plants operating Emerson Ovation DCS or Honeywell Experion PKS platforms, the 3500 rack’s communication modules provide seamless data handoff, while the 330104-10-16-05-01-00 probe itself remains the critical first link in the measurement chain — the component whose accuracy and reliability determines the integrity of every downstream protection decision.

Application in Critical Infrastructure

The Bently Nevada 330104-10-16-05-01-00 is a proven performer across the full spectrum of critical industrial infrastructure. In oil and gas processing facilities, it monitors shaft radial vibration on centrifugal compressors and gas turbines operating continuously at elevated temperatures and pressures, where unplanned downtime can cost hundreds of thousands of dollars per hour. Offshore platform environments — characterized by salt spray, humidity extremes, and persistent mechanical vibration — demand exactly the IP67-rated, armored-cable construction this probe provides.

In coal-fired and combined-cycle power generation plants, the 330104-10-16-05-01-00 is installed on steam turbine journal bearings and generator rotor positions, feeding real-time shaft displacement data to the 3500 series protection rack. Any exceedance of alarm or danger setpoints triggers automatic turbine trip sequences, preventing catastrophic bearing failures. Mining and mineral processing operations rely on this probe for crusher drive shaft monitoring, where dust concentrations, shock loads, and abrasive environments would rapidly degrade contact-type sensors.

Water treatment and pumping stations deploy the 330104-10-16-05-01-00 on vertical turbine pumps and horizontal split-case pumps, where early detection of shaft misalignment or bearing wear prevents flooding events and service interruptions. In steel mills and aluminum smelters, the probe withstands radiant heat from furnace proximity and electromagnetic fields from high-current induction equipment, maintaining measurement accuracy on rolling mill drive trains and continuous caster pinch rolls. Petrochemical plants operating under ATEX or IECEx hazardous area classifications integrate this probe within certified enclosures, ensuring compliance with zone-rated installation requirements while delivering the sub-micron resolution needed for API 670 machinery protection compliance.

Security & Quality FAQ

Q1: Does the 330104-10-16-05-01-00 come with a warranty, and what does it cover?
Every 330104-10-16-05-01-00 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional performance. All units undergo pre-shipment functional testing — including gap/voltage linearity verification and cable continuity checks — before dispatch. Warranty claims are supported with full technical documentation and replacement logistics.

Q2: How do I verify compatibility with my existing Bently Nevada 3300 or 3500 system?
The 330104-10-16-05-01-00 is fully compatible with the Bently Nevada 3300 XL Proximitor sensor (330180 series) and the 3500/42M proximitor I/O module. It adheres to the standard 200 mV/mil (7.87 V/mm) scale factor and -24 VDC supply requirement, making it a direct drop-in replacement for any 3300 XL 10mm probe installation. If your system uses a different proximitor model or rack configuration, contact our technical team for a compatibility assessment before ordering.

Q3: What is the lead time, and can you support urgent field replacement requirements?
TOPNLMS maintains stock of the 330104-10-16-05-01-00 for immediate dispatch. Standard orders ship within 1–3 business days from Xiamen, China, with express DHL/FedEx options available for emergency field replacements. We support both single-unit spot purchases and long-term blanket order agreements for maintenance programs requiring guaranteed supply continuity.

Q4: Is this probe suitable for hazardous area (ATEX/IECEx) installations?
The 330104-10-16-05-01-00 in its standard configuration is designed for general industrial use. For ATEX or IECEx Zone 1/Zone 2 hazardous area installations, Bently Nevada offers certified variants with appropriate Ex markings. TOPNLMS can source and supply the correct certified configuration for your specific area classification — please provide your zone rating and gas group when inquiring. All installations in classified areas must comply with local electrical safety regulations and be performed by qualified personnel.
