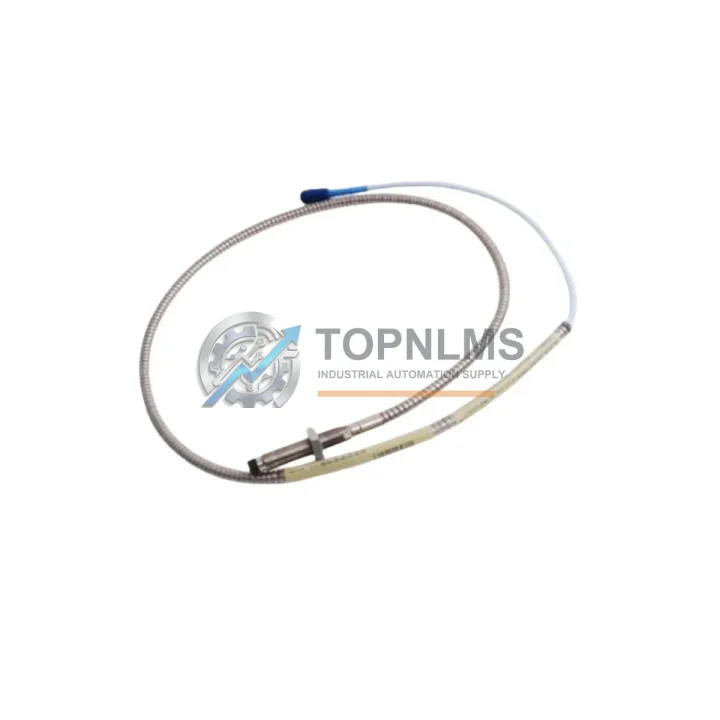

Bently Nevada 330104-00-20-10-01-CN Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330104-00-20-10-01-CN is a precision eddy-current proximity probe engineered for continuous, reliable operation in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 XL Series, this probe delivers non-contact vibration and position measurement with exceptional signal integrity — even under conditions of extreme temperature, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference. For rotating machinery protection systems in oil & gas, power generation, mining, metallurgy, and heavy process industries, this probe is a mission-critical component that cannot afford to fail.

Designed to interface seamlessly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 series), the 330104-00-20-10-01-CN operates as part of a complete machinery protection loop. The probe’s armored coaxial cable and hardened tip construction resist abrasion, chemical exposure, and physical impact — conditions routinely encountered in compressor trains, turbine pedestals, pump bearing housings, and gearbox monitoring points. Its -CN suffix designates a connector configuration optimized for field-termination reliability, reducing the risk of signal loss in high-vibration installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330104-00-20-10-01-CN does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery installation, this probe pairs with the Bently Nevada 330180-91-00 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for the Bently Nevada 3500/40M Proximitor® Monitor. The monitor card, housed within a Bently Nevada 3500 Rack, processes radial vibration, axial position, and differential expansion data in real time, triggering alarms or shutdowns when machinery health thresholds are exceeded.

For complete shaft and bearing protection, the 330104-00-20-10-01-CN is frequently deployed alongside the Bently Nevada 330103-00-08-10-02-CN (a shorter probe variant for tighter clearance installations) and the Bently Nevada 330130-080-00-00 extension cable, which allows probe placement in deep or remote bearing housings without signal degradation. In high-temperature steam turbine applications, the probe system integrates with Bently Nevada 3500/42M Temperature Monitor modules to provide correlated vibration-temperature trending — a critical capability for detecting early-stage bearing deterioration before catastrophic failure.

On the power conditioning side, the 3300 XL system requires a stable −24 VDC supply, typically sourced from a Bently Nevada 3500/15 Power Supply Module or a dedicated industrial DIN-rail power supply with high ripple rejection. In control cabinet environments where the probe signal feeds into a Siemens S7-400 PLC or a Honeywell Experion PKS DCS via the 3500 system’s relay outputs or Modbus/TCP gateway, signal isolation and proper grounding of the coaxial cable shield are essential to prevent ground loops that could mask genuine vibration events. The Bently Nevada 3500/20 Rack Interface Module manages communication between the protection rack and the plant DCS, ensuring that trip signals and alarm states are transmitted reliably even during network congestion or power fluctuations.

For installations requiring SIL-rated safety loops, the 330104-00-20-10-01-CN can be incorporated into a redundant voting architecture (1oo2 or 2oo3) using multiple probes on the same shaft journal, with outputs routed through a Bently Nevada 3500/33 16-Channel Relay Module to a safety PLC such as the Rockwell Automation GuardLogix 5580 or Pilz PNOZmulti 2 safety controller. This configuration satisfies API 670 requirements for critical machinery protection in SIL 2 applications.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including gas compressor stations, LNG liquefaction trains, and offshore platform turbomachinery — the 330104-00-20-10-01-CN is a standard component of API 670-compliant protection systems. Compressor rotor radial vibration, thrust position, and differential expansion are continuously monitored to prevent seal failures, rotor rubs, and bearing wipeouts that could result in unplanned shutdowns costing hundreds of thousands of dollars per hour.

In coal-fired and combined-cycle power plants, this probe monitors steam turbine and boiler feed pump shaft dynamics. The non-contact measurement principle eliminates wear and eliminates the need for periodic mechanical recalibration, making it ideal for units that run continuously for 18–24 months between planned outages. The probe’s high-temperature rating ensures reliable operation in the hot bearing pedestals of large steam turbines where ambient temperatures routinely exceed 100°C.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and pervasive silica dust contamination, the armored construction of the 330104-00-20-10-01-CN resists physical damage during maintenance activities and maintains calibration accuracy despite the harsh electromagnetic environment generated by large variable-frequency drives (VFDs) controlling mill motors.

In water and wastewater treatment, large centrifugal pumps and blowers equipped with 3300 XL proximity systems benefit from early vibration trend detection, allowing maintenance teams to schedule impeller replacements or bearing changes during planned downtime rather than responding to emergency failures. In steel and aluminum smelting facilities, the probe’s resistance to radiated heat and electromagnetic interference from arc furnaces and induction heating systems makes it the preferred choice for continuous caster roll drives and rolling mill main drives.
