Bently Nevada 330104-00-17-90-02-CN Ruggedized Proximity Module

Product Overview

Bently Nevada 330104-00-17-90-02-CN Ruggedized Proximity Module: Industrial Resilience for Harsh Environments

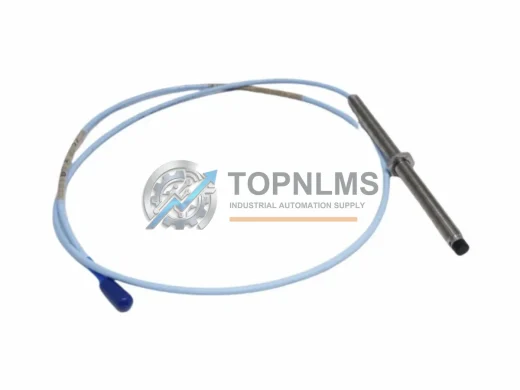

The Bently Nevada 330104-00-17-90-02-CN is an 8mm eddy-current proximity transducer engineered for continuous, high-reliability vibration and position measurement in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series condition monitoring system, this transducer delivers precise, non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for protecting rotating machinery in power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

Designed to operate reliably under extreme conditions including high ambient temperatures, elevated humidity, pervasive dust, mechanical shock, continuous vibration, and strong electromagnetic interference, the 330104-00-17-90-02-CN is the preferred choice for plant engineers and reliability teams who cannot afford unplanned downtime. Its ruggedized construction and proven field performance make it an essential spare part and direct replacement for aging 3300 XL proximity systems worldwide.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330104-00-17-90-02-CN proximity transducer is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery protection loop, this probe pairs with the Bently Nevada 3300 XL Extension Cable 330130 to bridge the distance between the probe tip and the signal conditioning driver. The driver — commonly the Bently Nevada 3300 XL Proximitor Sensor 330180 — converts the raw eddy-current signal into a calibrated voltage output compatible with the plant’s monitoring rack.

Within the Bently Nevada 3500 Series Machinery Protection System, this transducer feeds directly into monitor modules such as the 3500/42M Proximitor/Seismic Monitor, which processes vibration and position data in real time and triggers protective relay outputs when alarm or danger thresholds are exceeded. For facilities running legacy systems, the 330104-00-17-90-02-CN is also backward-compatible with the Bently Nevada 7200 Series proximity systems, making it a versatile replacement across multiple platform generations.

In control cabinet environments, the transducer signal is typically routed through Bently Nevada TM Series terminal modules and marshalling panels before reaching the DCS or safety instrumented system. Integration with platforms such as the GE Mark VIe Turbine Control System or third-party DCS architectures via MODBUS RTU communication modules is standard practice in combined-cycle power plants and LNG facilities. Surge protection devices and Bently Nevada I/O modules installed at the cabinet entry point further shield the signal chain from transient overvoltages common in high-voltage switchgear environments.

For sites requiring functional safety compliance, the proximity transducer system integrates with safety relay modules and voted logic solvers to form SIL-rated protective loops per IEC 61511. The combination of the 330104-00-17-90-02-CN with a redundant Proximitor driver and a 2oo3 voting monitor configuration is a well-established architecture in critical compressor and turbine protection applications across the oil & gas sector.

Application in Critical Infrastructure

The Bently Nevada 330104-00-17-90-02-CN is deployed across the full spectrum of critical industrial infrastructure where rotating machinery reliability is non-negotiable.

Oil & Gas: On offshore platforms and onshore gas compression stations, this transducer monitors centrifugal compressor shaft vibration and axial thrust position continuously. Any deviation beyond setpoint triggers an automatic shutdown sequence, preventing catastrophic seal failures or bearing wipeouts that could result in hydrocarbon release and fire. Its IP67 rating and high-temperature probe tip tolerance make it suitable for installation in classified Zone 1 and Zone 2 hazardous areas.

Power Generation: In coal-fired, gas-fired, and combined-cycle power plants, the 330104-00-17-90-02-CN is installed on steam turbine journal bearings and thrust collars. Real-time vibration trending fed into the plant DCS allows maintenance teams to schedule bearing inspections during planned outages rather than reacting to emergency trips, directly improving plant availability and capacity factor.

Mining & Minerals Processing: Large ball mills, SAG mills, and crusher drives in copper, gold, and iron ore operations operate under extreme mechanical shock and vibration loads. The ruggedized construction of the 3300 XL proximity system withstands these conditions while providing early warning of rotor imbalance, misalignment, and bearing degradation — reducing unplanned downtime in operations where a single mill stoppage can cost tens of thousands of dollars per hour.

Water & Wastewater Treatment: High-capacity pump stations and blower systems in municipal water infrastructure rely on continuous vibration monitoring to maintain service levels. The non-contact measurement principle of the eddy-current transducer eliminates wear-related drift, ensuring measurement accuracy over multi-year service intervals without recalibration.

Metallurgy & Steel: In electric arc furnace facilities and rolling mill drives, electromagnetic interference levels are among the highest in any industrial environment. The shielded coaxial cable design of the 330104-00-17-90-02-CN provides robust EMI rejection, maintaining signal integrity even when routed alongside high-current power cables in congested cable trays.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange a replacement or full refund after technical verification. Claims are initiated by contacting [email protected] with the order reference and a description of the fault.

Q2: How is each unit tested before shipment?
Every 330104-00-17-90-02-CN unit undergoes pre-shipment functional verification including output signal level check, insulation resistance test, and physical inspection of the probe tip, cable jacket, and connector. Units sourced as surplus new are additionally inspected for storage condition and date codes. A test report is available upon request for critical applications.

Q3: Is this transducer compatible with my existing 3300 XL or 3500 Series monitoring rack?
Yes. The 330104-00-17-90-02-CN is a standard 3300 XL Series 8mm proximity transducer and is fully compatible with all Bently Nevada 3300 XL Proximitor drivers (330180, 330185) and 3500 Series monitor modules (3500/42, 3500/42M, 3500/46, 3500/50). It is also backward-compatible with 7200 Series systems. If you are unsure about compatibility with a specific rack configuration, contact our technical team with your monitor part number for confirmation before ordering.

Q4: Can you support long-term or repeat supply for maintenance and spare parts programs?
Yes. TOPNLMS maintains standing inventory of high-demand Bently Nevada 3300 XL and 3500 Series components to support planned maintenance programs, insurance spare strategies, and emergency replacement requirements. We can provide blanket order arrangements and reserved stock allocation for customers with recurring demand. Contact us to discuss a supply agreement tailored to your site’s maintenance schedule.
