Bently Nevada 330103-00-13-10-12-00 Ruggedized Proximity Transducer

Product Overview

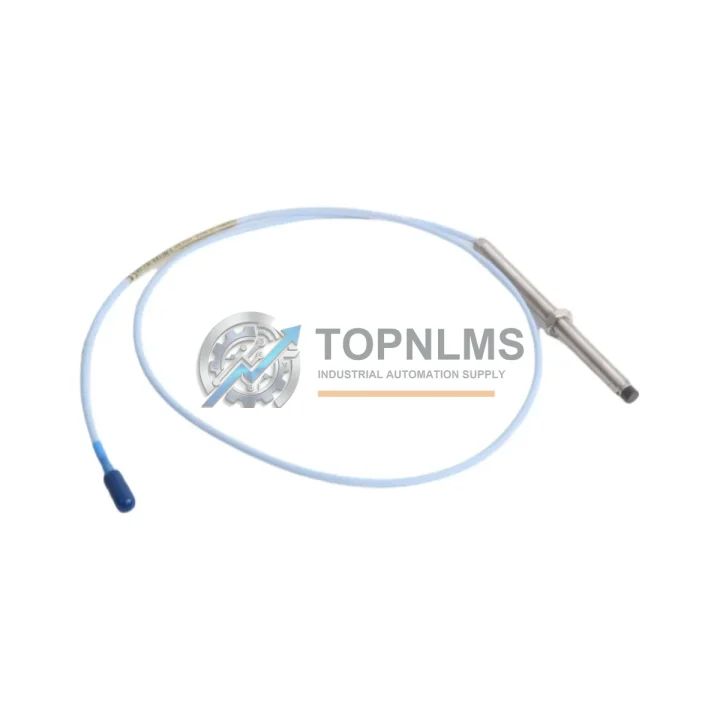

Bently Nevada 330103-00-13-10-12-00 Ruggedized Proximity Transducer: Industrial Resilience for Harsh Environments

The Bently Nevada 330103-00-13-10-12-00 is an 8mm eddy-current proximity transducer engineered as part of the renowned 3300 XL Series — Bently Nevada’s gold standard for continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed to operate reliably under extreme temperature swings, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference, this transducer delivers the measurement accuracy and long-term stability that critical rotating machinery protection demands.

In continuous production facilities — from petrochemical refineries and offshore platforms to steel mills and power generation plants — shaft vibration, axial position, and differential expansion must be monitored without interruption. The 330103-00-13-10-12-00 is purpose-built for exactly these conditions. Its ruggedized stainless-steel housing, hermetically sealed tip, and wide operating temperature range make it a trusted front-line sensor in environments where standard instrumentation fails prematurely.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330103-00-13-10-12-00 probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery or compressor train installation, this transducer pairs directly with the Bently Nevada 330180-X1-05 3300 XL 8mm Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output suitable for monitoring systems. That signal is then fed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, which enforces alarm and trip setpoints to protect the machine from catastrophic failure.

For plants running integrated machinery protection, the 3500 Series rack accepts inputs from multiple transducer types simultaneously. Alongside the 330103-00-13-10-12-00 proximity probes, the same rack may house Bently Nevada 330500-02-00 velocity transducers for seismic casing vibration measurement and 330750-02-01 accelerometers for high-frequency bearing defect detection. This multi-parameter approach — combining shaft relative vibration, casing absolute vibration, and axial position — provides the layered protection that API 670 machinery protection standards require.

In DCS-integrated environments, the 3500 rack communicates over Modbus RTU or TCP/IP to plant historians and safety instrumented systems. Where a Rockwell Automation ControlLogix PLC or Siemens S7-400 PLC serves as the primary process controller, the 3500 system’s relay outputs and analog outputs interface directly to the PLC’s digital input modules and analog input cards, enabling coordinated machine shutdown sequences. The Bently Nevada 3500/20 Rack Interface Module manages this communication backbone, ensuring that vibration trip signals reach the safety layer within the required response time.

Power supply integrity is equally critical. The 330103-00-13-10-12-00 system requires a stable -24 VDC supply, typically sourced from a Bently Nevada 3500/15 Power Supply Module or an equivalent redundant industrial DC power supply rated for continuous duty. In hazardous classified areas — ATEX Zone 1 or NEC Class I Division 1 — the transducer’s intrinsically safe design eliminates the need for additional Zener barriers in most configurations, simplifying the control cabinet layout and reducing potential failure points.

For plants managing large rotating equipment fleets, the 330103-00-13-10-12-00 is also fully compatible with Bently Nevada System 1 Evolution condition monitoring software, enabling trend analysis, alarm management, and predictive maintenance scheduling across hundreds of measurement points from a centralized workstation.

Application in Critical Infrastructure

The 330103-00-13-10-12-00 proximity transducer is deployed across the full spectrum of heavy industry and critical infrastructure where rotating machinery failure carries severe safety and financial consequences.

In oil and gas processing — onshore gas compression stations, offshore platform turbine generators, and LNG liquefaction trains — this transducer monitors the shaft vibration of high-speed centrifugal compressors and steam turbines operating continuously at 3,000 to 15,000 RPM. Any deviation from baseline vibration signatures triggers early warning alarms, allowing maintenance teams to schedule corrective action before a bearing failure or rotor rub escalates into an unplanned shutdown or, worse, a safety incident.

In power generation, the 330103-00-13-10-12-00 is a standard component in the protection systems of gas turbines, steam turbines, and hydro generators. Utilities and independent power producers rely on the 3300 XL system’s proven measurement accuracy to maintain compliance with grid reliability standards and insurance requirements. The transducer’s wide operating temperature range — up to 177°C — makes it suitable for installation in the hot sections of turbine bearing pedestals where ambient temperatures routinely exceed the limits of standard industrial sensors.

In mining and mineral processing, large ball mills, SAG mills, and slurry pumps operate in environments saturated with abrasive dust, high vibration, and corrosive moisture. The IP67-rated stainless steel housing of the 330103-00-13-10-12-00 withstands these conditions without degradation, providing reliable shaft position feedback to the mill drive control system and enabling early detection of bearing wear or misalignment before catastrophic failure occurs.

In water and wastewater treatment, large centrifugal pumps and blowers running 24/7 benefit from continuous vibration monitoring to support predictive maintenance programs. The 330103-00-13-10-12-00 provides the measurement foundation for condition-based maintenance strategies that reduce unplanned downtime and extend equipment service life in these asset-intensive facilities.

In metallurgy and steel production, rolling mill drives, continuous caster pinch rolls, and blast furnace blowers operate under extreme mechanical loads and thermal cycling. The ruggedized construction of the 3300 XL probe system ensures measurement continuity even as surrounding structures flex and vibrate under production loads.
