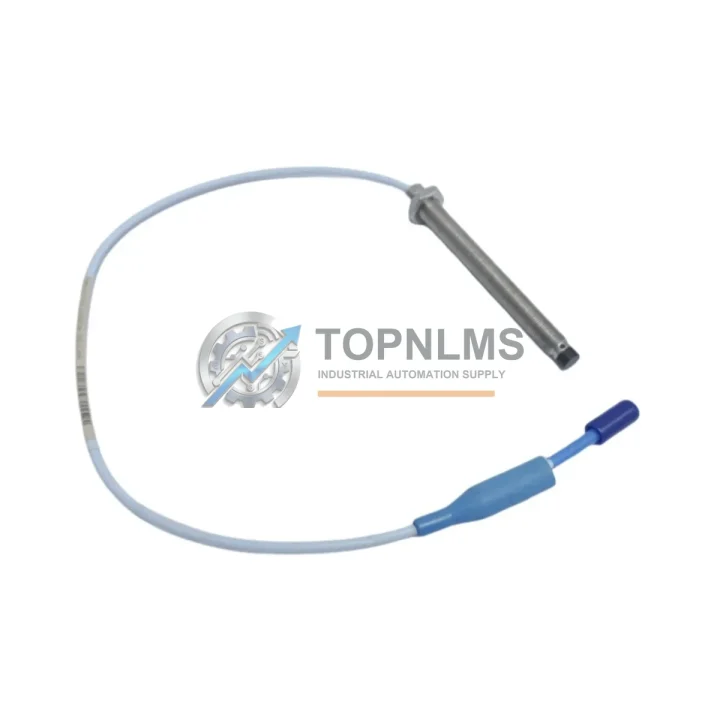

Bently Nevada 330103-00-10-05-02-00 3300 XL Proximity Probe: Seamless Replacement & Upgrade Solution

When your rotating machinery monitoring system depends on the Bently Nevada 3300 XL Series, an unplanned probe failure or end-of-life notification cannot wait. The Bently Nevada 330103-00-10-05-02-00 is a 10mm eddy-current proximity probe with a 5-metre armored cable, engineered for continuous vibration, position, and speed measurement on turbines, compressors, pumps, and other critical rotating assets. This listing provides a verified, tested replacement and upgrade solution for facilities migrating away from legacy 3300 Series hardware or consolidating spare-parts inventory under the 3300 XL platform.

Whether your plant is retiring an older Bently Nevada 3300 Series installation or standardizing on the 3300 XL architecture, the 330103-00-10-05-02-00 integrates directly into existing conduit runs, junction boxes, and monitor racks without requiring new cable trays or structural modifications. The 10mm tip diameter matches the original sensing gap specification, and the 5m cable length covers the majority of standard machine-train installations where the proximitor is mounted within the bearing housing pedestal or on a nearby instrument stand.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from legacy 3300 Series hardware to the 3300 XL platform rarely involves a single component. In practice, field engineers replacing the 330103-00-10-05-02-00 probe will also evaluate the condition and compatibility of the associated Bently Nevada 330180-51-05 Proximitor, which converts the probe’s eddy-current signal into a usable voltage output for the monitoring rack. If the proximitor is original to the legacy installation, replacing it alongside the probe eliminates a common source of signal drift and calibration error.

On the monitor side, facilities running older Bently Nevada 3300/16 or 3300/20 vibration monitors may find that upgrading to the 3500/42M Proximitor I/O Module within the 3500 Series rack provides enhanced diagnostics, Modbus RTU and Ethernet/IP communication options, and improved alarm resolution — capabilities that the original 3300 monitors cannot offer. The 3500 rack accepts standard 3300 XL probe-and-proximitor pairs without signal conditioning changes, making the transition straightforward for instrumentation teams.

For installations where the junction box wiring is being re-terminated during the upgrade, Bently Nevada 02-262783-01 extension cables are commonly used to bridge the distance between the probe exit point and the proximitor enclosure, particularly in large turbine pedestals where the standard 5m cable falls short. Pairing the 330103-00-10-05-02-00 with the correct extension cable and a 330130-040-00-00 Proximitor ensures the complete probe-cable-proximitor system is calibrated as a matched set, which is the recommended practice for API 670-compliant installations.

Plants integrating vibration data into a DCS or SCADA platform will typically route the 4–20 mA or voltage output from the proximitor through a Bently Nevada 3500/20 Rack Interface Module, which provides the gateway between the 3500 monitoring rack and plant-wide communication networks including Modbus, FOUNDATION Fieldbus, or OPC-DA. If the existing control cabinet uses a Rockwell Automation ControlLogix or Siemens S7-300 PLC for machinery protection logic, the 3500/20 RIM simplifies integration without requiring custom signal conditioning hardware.

Finally, for facilities performing a full machinery protection upgrade, the Bently Nevada 3500/22M Transient Data Interface and 3500/15 Power Supply Module are standard companion components that complete the rack build-out. Sourcing these alongside the 330103-00-10-05-02-00 probe from a single supplier reduces lead time, simplifies incoming inspection, and ensures all components are covered under a unified warranty period.

Retrofit Guidance FAQ

Q: Can I install the 330103-00-10-05-02-00 without re-wiring the junction box?
A: Yes. The 3300 XL probe uses the same coaxial connector and cable shield grounding convention as the legacy 3300 Series. In most installations, the existing junction box terminals and conduit seals can be reused. Verify that the shield drain wire is grounded at one end only (typically at the proximitor enclosure) to avoid ground loops.

Q: Do I need to recalibrate the proximitor after replacing the probe?
A: Yes. Whenever a probe or proximitor is replaced, the gap voltage must be re-verified at the recommended air-gap distance (typically 1.0–1.5mm for a 10mm probe). Use a non-conductive gap-setting tool and confirm the output voltage falls within the linear range specified in the 3300 XL system manual before returning the machine to service.

Q: Is the 330103-00-10-05-02-00 compatible with the 3500 Series monitoring rack?
A: Yes, provided it is paired with a compatible 3300 XL Proximitor (such as the 330180 series). The 3500 rack’s I/O modules accept the standard -24 VDC proximitor output, and no additional signal conditioning is required.

Q: What communication protocols does this probe system support?
A: The probe itself is a passive sensor; communication protocol support is determined by the monitor and rack interface module. The 3500 Series rack supports Modbus RTU, Modbus TCP, Ethernet/IP, FOUNDATION Fieldbus, and Profibus DP depending on the RIM installed. The 3300 XL probe is compatible with all of these configurations.

Q: How much physical space does the replacement require in the control cabinet?
A: The probe mounts externally on the machine casing; it does not occupy control cabinet space. The proximitor is typically DIN-rail or panel-mounted in the local junction box. The 3300 XL Proximitor has the same form factor as the legacy 3300/05 unit, so no cabinet modifications are required.

Q: Can this probe replace a discontinued Bently Nevada model?
A: The 330103-00-10-05-02-00 is the current production equivalent for several discontinued 3300 Series 10mm probe configurations. If you are replacing a probe with a different suffix (e.g., different cable length or connector type), contact our technical team with the original part number to confirm compatibility before ordering.

Warranty Assurance

Every Bently Nevada 330103-00-10-05-02-00 shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including output signal check, cable continuity test, and connector integrity inspection. Units that do not meet specification are quarantined and not offered for sale.

If a warranty claim arises within the coverage period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our after-sales response target is one business day for initial acknowledgment and three business days for resolution proposal. Replacement units are dispatched from our Xiamen warehouse, with DHL Express and FedEx International Priority available for time-critical situations.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration upon request. Bulk orders of five units or more qualify for priority allocation from bonded stock, reducing lead time to 1–3 business days for most destinations.

Contact our technical sales team before placing your order if you need to confirm cross-reference compatibility, request a quotation for a matched probe-proximitor-cable set, or arrange expedited shipment for an emergency shutdown situation.
