Bently Nevada 330103-00-06-50-02-05 Original Industrial Spare 3300 XL Compatible: Ensuring System Stability in Critical Rotating Machinery Applications

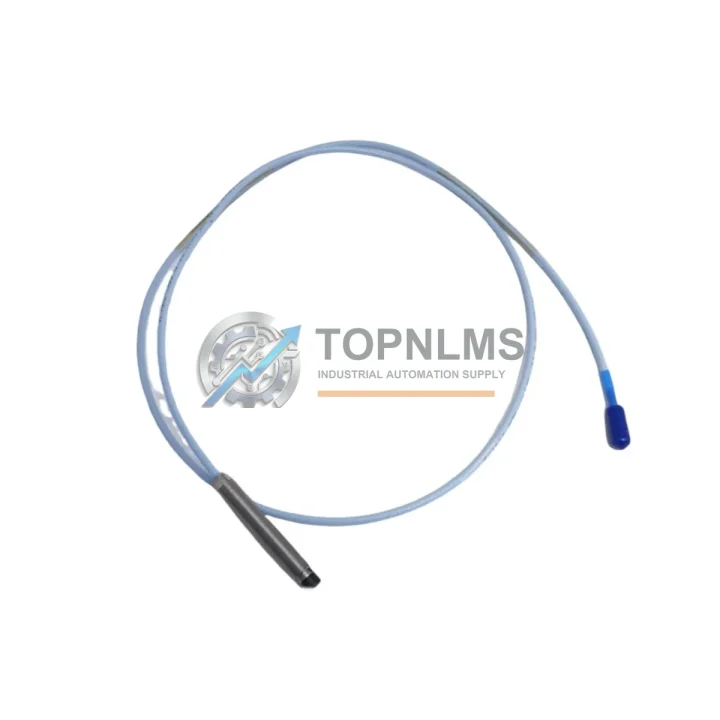

In high-stakes industrial environments — petrochemical plants, power generation facilities, compressor stations, and heavy manufacturing lines — the integrity of rotating machinery monitoring systems is non-negotiable. The Bently Nevada 330103-00-06-50-02-05 is an original 8mm Eddy-Current Proximity Probe from the renowned 3300 XL Series, engineered to deliver continuous, high-accuracy shaft vibration and position measurement in the most demanding conditions. Sourcing a verified original spare for this probe is one of the most impactful decisions a maintenance team can make to protect uptime, extend equipment life, and reduce unplanned shutdown risk.

When a proximity probe fails or degrades, the consequences extend far beyond a single sensor. The entire vibration monitoring loop — from probe tip to Bently Nevada 3300 XL proximitor/driver, through signal conditioning, to the DCS or safety system — loses its reliability. Replacing the probe with a genuine 330103-00-06-50-02-05 restores the calibrated sensitivity and gap voltage characteristics that the system was originally commissioned with, eliminating the need for full-loop recalibration and minimizing downtime.

Critical Technical Specs Table

Preventive Maintenance Strategy: Protecting the Full Monitoring Loop

Experienced maintenance engineers know that a proximity probe replacement is rarely an isolated event. The 330103-00-06-50-02-05 operates as part of a tightly integrated transducer system, and a scheduled probe replacement or emergency swap is the ideal moment to audit the health of every component in the same monitoring loop and control cabinet.

Begin with the Bently Nevada 330130-080-00-00 extension cable — the 8-meter armored extension that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown, particularly in high-vibration or high-temperature zones. A degraded cable introduces noise and offset errors that can mask real shaft movement or trigger nuisance trips. Replacing the probe without inspecting the extension cable leaves a known failure point in the loop.

Next, verify the condition of the Bently Nevada 330180-X1-05 3300 XL Proximitor/Driver. The proximitor converts the probe’s impedance change into a calibrated DC voltage signal. If the proximitor has been in service for more than five years or has experienced power surges, its internal oscillator and signal conditioning circuits may have drifted. A matched probe-proximitor pair, both from the 3300 XL series, ensures the system operates within its original calibration envelope.

While the control cabinet is open, inspect the Bently Nevada 3500/42M Proximitor I/O Module or equivalent rack-mounted I/O card. These modules interface the analog proximity signal with the 3500 Series machinery protection rack, and their terminal blocks and internal relays accumulate wear over time. Similarly, check the 3500/20 Power Supply Module — an unstable rack power supply is a common root cause of intermittent proximity system faults that are misdiagnosed as probe failures.

For plants running older Bently Nevada 7200 Series or 3300 Series (non-XL) systems, this maintenance window is also the right time to evaluate whether a 3300 XL system upgrade kit is warranted. The 3300 XL platform offers improved EMI immunity, wider temperature range, and better compatibility with modern DCS and safety system inputs. Stocking a 330103-00-06-50-02-05 as a direct replacement also future-proofs the spare parts inventory for any 3300 XL installations across the facility.

Do not overlook the terminal strip and grounding hardware inside the junction box where the extension cable terminates. Corroded terminals and improper shield grounding are leading causes of signal noise in eddy-current systems. Pair the probe replacement with fresh terminal blocks and verified single-point grounding to eliminate these interference sources. If the plant uses signal isolators or barriers between the proximitor output and the DCS analog input card, inspect those as well — a failing isolator can introduce a DC offset that shifts the gap voltage reading and triggers false alarms.

Finally, for facilities practicing predictive maintenance, this is an opportune moment to cross-reference the new probe’s baseline gap voltage reading against the historical trend stored in the System 1 Evolution condition monitoring software or equivalent historian. Establishing a fresh baseline immediately after installation gives the maintenance team a clean reference point for future trend analysis and anomaly detection.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The 330103-00-06-50-02-05 is a direct OEM replacement for any 3300 XL 8mm proximity probe installation. Its standardized sensitivity of 200 mV/mil and linear range of 0–90 mil mean it can be installed without adjusting the proximitor’s gap voltage setpoints, provided the installation gap is set correctly per the original commissioning documentation. This plug-and-play compatibility is critical in emergency shutdown scenarios where every hour of downtime carries significant production cost.

For maintenance teams managing aging facilities with mixed Bently Nevada generations, the 3300 XL probe is backward-compatible with many 3300 Series proximitor configurations when used with the appropriate extension cable. This cross-generation compatibility reduces the number of unique spare part numbers that must be stocked, simplifying inventory management and reducing carrying costs.

Plants that have standardized on the Bently Nevada 3500 Series Machinery Protection System will find that the 330103-00-06-50-02-05 integrates seamlessly with 3500/42M and 3500/40M monitor modules, supporting both radial vibration and thrust position measurement applications. This versatility makes it one of the highest-value single SKUs to maintain in a rotating machinery spare parts inventory.

TOPNLMS pre-tests every unit prior to shipment, verifying gap voltage linearity and connector integrity. Each probe ships with a test report and is backed by a 12-month warranty from the date of shipment, giving procurement and maintenance teams the confidence to stock this part as a long-term strategic spare.

Support FAQ

Q1: Is the 330103-00-06-50-02-05 compatible with both the 3300 XL and older 3300 Series proximitors?
The 330103-00-06-50-02-05 is designed and calibrated for the 3300 XL 8mm Proximitor system. While the physical connector and cable are similar to some older 3300 Series configurations, full calibration compatibility should be verified against the specific proximitor model in use. For 3300 XL installations, it is a direct drop-in replacement.

Q2: What pre-shipment testing does TOPNLMS perform on this probe?
Each unit undergoes gap voltage linearity verification across the full 0–90 mil linear range, connector continuity and insulation resistance testing, and visual inspection of the probe tip and cable jacket. A test record is included with every shipment. The probe is covered by a 12-month warranty from the date of shipment.

Q3: How should I manage spare inventory for proximity probes in a large rotating machinery fleet?
Industry best practice recommends maintaining a minimum of one spare probe per critical machine train, with additional buffer stock for high-density installations such as turbine-generator sets. Given the 330103-00-06-50-02-05’s cross-application versatility across radial vibration and axial position measurement, stocking 2–4 units per facility is a cost-effective strategy that covers most emergency replacement scenarios without excessive carrying cost.

Q4: What is the recommended installation gap for this probe, and how do I verify it after replacement?
The standard installation gap for the 3300 XL 8mm probe is typically 50 mil (1.27 mm), corresponding to a gap voltage of approximately -10 VDC at the proximitor output. After installation, use a calibrated digital voltmeter to measure the proximitor output voltage and confirm it falls within the linear range specified in the Bently Nevada installation manual (typically -9 to -11 VDC for a 50 mil gap). Record the as-installed gap voltage as the new baseline in your condition monitoring system.
