Bently Nevada 330103-00-05-05-02-05 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330103-00-05-05-02-05 Original Industrial Spare 3300 XL: System Stability and Vibration Monitoring Continuity

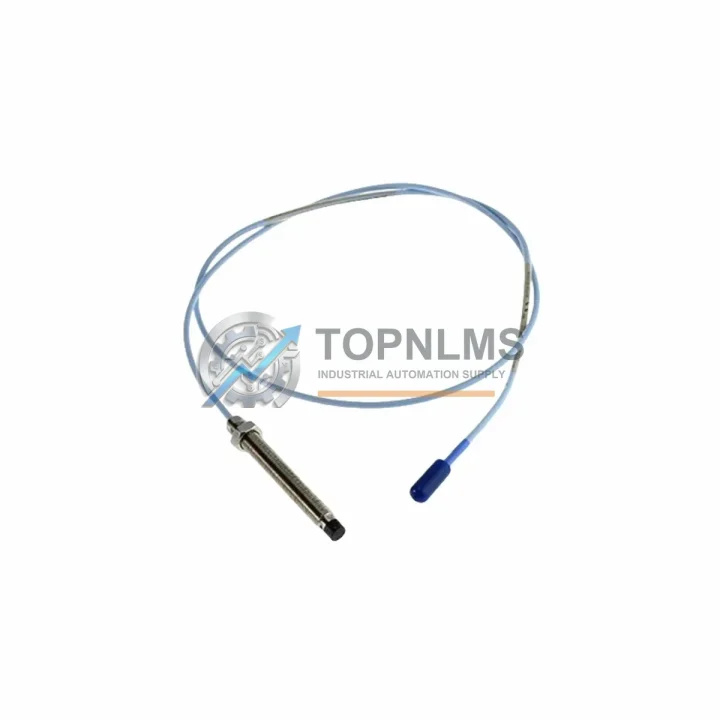

The Bently Nevada 330103-00-05-05-02-05 is an original 8mm eddy current proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration, axial position, and differential expansion measurement in rotating machinery. As a critical sensing element in turbine protection, compressor monitoring, and pump condition assessment systems, this probe is one of the most frequently replaced components during scheduled outages and corrective maintenance events. Maintaining a verified stock of this part is a foundational element of any serious predictive maintenance program.

In high-availability industrial environments — petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing lines — unplanned downtime caused by a failed proximity probe can cascade into multi-hour or multi-day production losses. The 330103-00-05-05-02-05 is a direct-fit replacement for existing 3300 XL probe installations, preserving original system calibration, signal chain integrity, and API 670 compliance without requiring reconfiguration of the monitoring rack.

Critical Technical Specs

Preventive Maintenance Strategy

When replacing or inspecting the 330103-00-05-05-02-05 proximity probe, experienced maintenance engineers treat the event as an opportunity to audit the entire vibration monitoring signal chain. The probe itself is only one element in a system whose reliability depends on the condition of every interconnected component.

Begin with the extension cable — typically a 3300 XL Series extension cable such as the 330130-045-00-CN — which is subject to mechanical fatigue, connector corrosion, and insulation degradation in high-vibration or high-temperature environments. A probe replacement that retains a worn extension cable is a common source of recurring nuisance trips. Simultaneously, inspect the 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the probe signal and outputs the DC voltage proportional to gap distance. Proximitor sensors have a defined service life and should be bench-tested or replaced on a scheduled interval aligned with major turnaround cycles.

Within the monitoring rack, verify the condition of the 3500/42M Proximitor®/Seismic Monitor or equivalent rack-mounted monitor card. These cards process the raw proximity signal and generate alarm and trip outputs; a degraded monitor card can produce false readings even with a new probe installed. If the installation uses a 3500 Series rack, also inspect the 3500/20 Rack Interface Module (RIM) and the 3500/15 Power Supply Module — power quality issues at the rack level are a frequently overlooked root cause of erratic proximity readings.

For installations where the probe monitors a shaft running in sleeve bearings, it is good practice to simultaneously inspect the keyphasor® probe assembly (such as the 330980-XX-XX series) and its associated driver. The keyphasor signal is essential for phase-referenced vibration analysis and balancing; a degraded keyphasor probe will compromise the diagnostic value of the entire monitoring system even if all other probes are functioning correctly.

Finally, review the condition of the armored conduit and junction box protecting the probe cable routing, and confirm that all BNC connectors and coaxial terminations are clean, torqued to specification, and free of moisture ingress. In offshore or chemically aggressive environments, connector corrosion is the single most common cause of intermittent proximity probe faults. Stocking a set of replacement BNC connectors and a tube of dielectric grease alongside the probe itself is a low-cost, high-value maintenance practice.

Strategic Replacement Solutions

The 330103-00-05-05-02-05 is a direct, form-fit-function replacement for all 3300 XL 8mm probe installations using the standard 0.5 m + 5.0 m cable configuration. No recalibration of the Proximitor® sensor is required when replacing a like-for-like probe within the same cable length system, which significantly reduces the time required to return a machine to service after a corrective maintenance event.

For facilities managing aging machinery originally commissioned with earlier Bently Nevada probe generations, the 3300 XL Series represents a validated upgrade path. The 3300 XL system is backward-compatible with many legacy 3300 Series installations and offers improved temperature performance, tighter scale factor tolerance, and enhanced EMI immunity — all of which contribute to fewer nuisance trips and more reliable machinery protection in demanding industrial environments.

Procurement teams managing multi-unit facilities or long-interval maintenance schedules should consider holding a minimum of two to four units of the 330103-00-05-05-02-05 in bonded stores. The lead time for original Bently Nevada components from distribution channels can extend to several weeks during periods of high demand, and the cost of a single unplanned outage on a critical rotating machine will typically exceed the carrying cost of a full year’s worth of spare probe inventory. Sourcing verified original parts through a qualified industrial automation supplier with documented testing and a 12-month warranty is the most effective way to balance procurement cost against operational risk.

Each unit shipped from TOPNLMS undergoes functional verification prior to dispatch, is packaged in anti-static protective materials, and is accompanied by documentation confirming part number, serial traceability, and warranty terms. Orders are processed promptly with worldwide shipping options to support both planned maintenance schedules and emergency breakdown requirements.

Support FAQ

Q1: Is the 330103-00-05-05-02-05 an original Bently Nevada part or an aftermarket equivalent?
This is an original Bently Nevada 3300 XL Series proximity probe. TOPNLMS sources and supplies only genuine OEM components. Each unit is verified prior to shipment and covered by a 12-month warranty against manufacturing defects and functional failure.

Q2: Can I replace just the probe without replacing the extension cable and Proximitor® sensor?
Yes — provided the extension cable and Proximitor® sensor are within their service life and pass a bench verification test. The 3300 XL system is designed for modular replacement. However, if the extension cable shows signs of insulation damage, connector wear, or the Proximitor® sensor has not been replaced within the last major turnaround cycle, replacing all three components simultaneously is strongly recommended to avoid a repeat failure event.

Q3: How do I verify compatibility with my existing 3300 XL installation before ordering?
Confirm the probe tip diameter (8 mm), the integral cable length (0.5 m), and the extension cable length (5.0 m) match your current installation. Also verify that your Proximitor® sensor is a 3300 XL Series unit, as the 3300 XL probe system is not interchangeable with the earlier 3300 Series without a full system upgrade. If you have questions about compatibility, contact our technical team with your existing part numbers and we will confirm suitability before you order.

Q4: What is included in the 12-month warranty and what does the pre-shipment testing cover?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. Pre-shipment testing includes verification of probe tip impedance, cable continuity and insulation resistance, and connector integrity. Units that do not meet OEM specification are quarantined and not shipped. Warranty claims are processed promptly with replacement unit dispatch upon confirmation of the defect.
