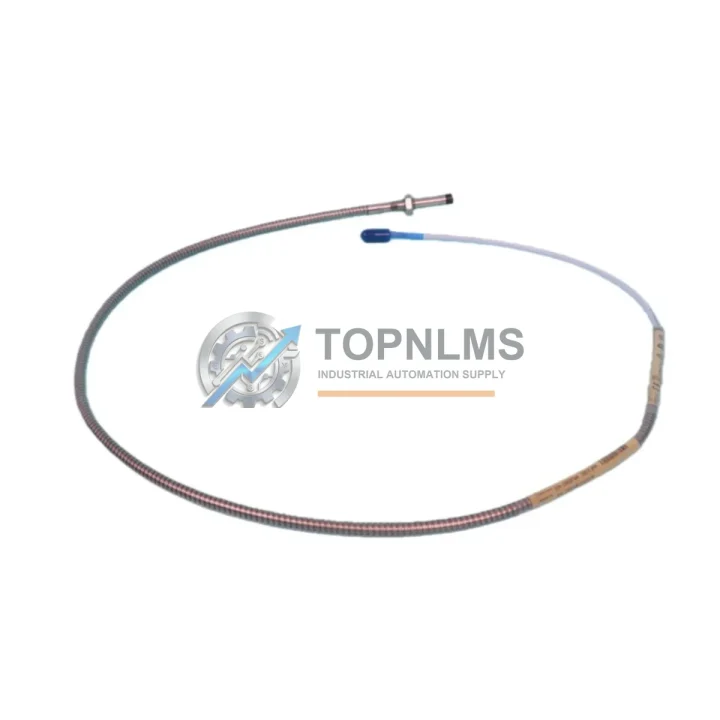

Bently Nevada 330102-08-50-10-02-05 Proximity Probe

Product Overview

Bently Nevada 330102-08-50-10-02-05 Ruggedized Proximity Probe for Harsh Industrial Environments

The Bently Nevada 330102-08-50-10-02-05 is an 8mm eddy current proximity probe engineered for continuous, non-contact vibration and position measurement in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series condition monitoring system, this probe delivers exceptional signal stability under high temperature, high humidity, heavy vibration, electromagnetic interference, and corrosive atmospheres — conditions routinely encountered in oil & gas, power generation, mining, metallurgy, and water treatment facilities.

Designed for permanent installation on rotating machinery such as turbines, compressors, pumps, and motors, the 330102-08-50-10-02-05 provides real-time shaft displacement data that feeds directly into safety shutdown logic and predictive maintenance programs. Its 5-metre integral cable eliminates field-splice uncertainty, while the ruggedized stainless-steel housing resists mechanical shock, chemical exposure, and IP-rated ingress. Whether deployed in a hazardous-area control cabinet or mounted directly on a high-speed spindle bearing housing, this probe maintains measurement accuracy within specification across its full operating range.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330102-08-50-10-02-05 probe is rarely deployed in isolation. In a fully protected rotating-machinery monitoring system, it works in concert with the Bently Nevada 330130-080-00-00 8mm extension cable, which bridges the probe to the Bently Nevada 330180-X1-05 proximitor/driver module mounted in a safe-area junction box or control cabinet. The driver’s conditioned output feeds into a Bently Nevada 3500/40M proximitor I/O module housed within a 3500 Rack — a modular, hot-swappable monitoring platform that also accepts 3500/42M velocity and acceleration inputs for comprehensive machinery health assessment.

For facilities running parallel DCS architectures, the 3500 Rack communicates over Modbus RTU or Ethernet/IP to plant-level SCADA systems, enabling seamless integration alongside Emerson DeltaV I/O cards or Honeywell Experion C300 controllers. In high-voltage switchgear rooms and motor control centres where electromagnetic interference is severe, the probe’s shielded coaxial design and the 3300 XL driver’s differential input circuitry suppress common-mode noise that would compromise lesser sensors. Supplementary Bently Nevada 3500/15 power supply modules provide redundant 24 VDC rail conditioning, ensuring the monitoring chain remains live even during utility disturbances.

Control cabinet integrity is further maintained by pairing the monitoring system with Phoenix Contact QUINT-PS DIN-rail power supplies and Weidmüller WDU 2.5 terminal blocks, which provide clean, vibration-resistant wiring terminations. For safety-instrumented-system (SIS) applications requiring IEC 61511 compliance, the proximity probe data can be routed through a Pilz PNOZmulti 2 safety relay or a Rockwell Allen-Bradley 440C safety module to trigger emergency shutdown sequences when shaft displacement exceeds trip setpoints.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 330102-08-50-10-02-05 is routinely installed on gas compressor trains and centrifugal pump skids operating in Zone 1 classified areas. Its ATEX-compatible design allows direct mounting without additional barriers in many configurations, reducing installation complexity and potential failure points in explosive atmospheres.

At thermal and combined-cycle power plants, this probe monitors steam turbine journal bearing radial vibration and thrust position simultaneously when deployed in multi-probe arrays. Early detection of rotor imbalance or bearing wear allows planned outage scheduling rather than forced shutdowns, directly protecting grid stability and revenue continuity.

In mining and mineral processing operations, where crusher drives, ball mills, and slurry pumps operate under extreme mechanical shock and abrasive dust ingress, the stainless-steel probe body and IP67 rating ensure measurement integrity over multi-year service intervals without recalibration. Similarly, in metallurgical plants — blast furnace blower trains, rolling mill drives, and continuous casting equipment — the probe’s high-temperature cable rating accommodates the elevated ambient conditions near furnace structures.

Water and wastewater treatment facilities rely on this probe for monitoring high-speed centrifugal blowers and vertical turbine pumps in humid, chemically aggressive environments. The non-contact measurement principle eliminates wear-related drift, providing consistent baseline data for long-term trend analysis and regulatory compliance reporting.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 330102-08-50-10-02-05?
Every unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty process is straightforward — contact [email protected] with your order number and fault description.

Q2: How is each probe tested before shipment?
All 330102-08-50-10-02-05 units undergo pre-shipment functional verification including output sensitivity check, cable continuity and insulation resistance test, and visual inspection of the probe tip, housing, and connector. Units that do not meet Bently Nevada 3300 XL specification tolerances are quarantined and not dispatched. A test report is available upon request for critical-infrastructure procurement.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series monitoring systems?
Yes. The 330102-08-50-10-02-05 is a direct form-fit-function replacement within the Bently Nevada 3300 XL 8mm probe system. It is fully compatible with 330130-series extension cables, 330180-series proximitor drivers, and all 3500 Series rack monitors. No reconfiguration of the monitor rack is required when replacing a like-for-like probe in the field.

Q4: Can TOPNLMS support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand Bently Nevada 3300 XL components to support planned maintenance schedules, annual turnaround outages, and emergency spare requirements. We offer priority allocation for contract customers and can provide lead-time commitments for bulk orders. Contact our team at [email protected] or +86 18359293191 to discuss your site’s ongoing spare-parts program.
