Bently Nevada 330102-00-50-10-02-05 3300 XL Extension Cable

Product Overview

Bently Nevada 330102-00-50-10-02-05 3300 XL Extension Cable: Seamless Transition & Legacy System Upgrade

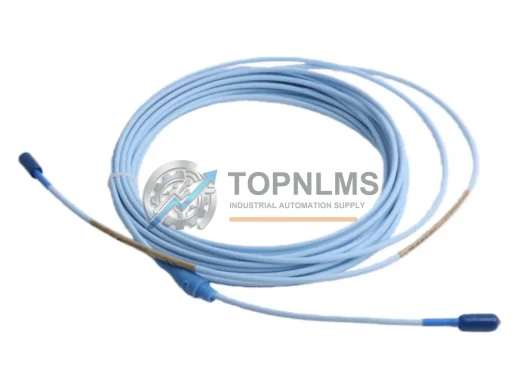

The Bently Nevada 330102-00-50-10-02-05 is a 5-meter Proximity Transducer Extension Cable engineered for the 3300 XL Series eddy-current proximity measurement system. As rotating machinery protection systems age and OEM support for legacy Bently Nevada 3300 Series hardware is phased out, plant engineers and reliability teams face increasing pressure to source verified replacement cables that maintain signal integrity across the full measurement chain — from the probe tip to the Proximitor® sensor and ultimately to the vibration monitor rack.

This extension cable serves as a direct, drop-in replacement for worn, damaged, or end-of-life cables in existing 3300 XL installations. It is also fully compatible as an upgrade path for facilities migrating from the earlier Bently Nevada 3300 Series (non-XL) to the 3300 XL platform, where the armored coaxial construction, connector geometry, and impedance characteristics of the 330102 family remain consistent across generations. Whether you are replacing a single cable in a critical compressor train or re-cabling an entire turbine protection panel, the 330102-00-50-10-02-05 delivers the electrical performance and mechanical durability required for continuous, high-reliability operation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Bently Nevada 3300 installation to a fully operational 3300 XL measurement chain typically involves more than a single cable swap. In practice, field engineers coordinate the replacement of several interdependent components to ensure the entire signal path — from the machine shaft to the control room monitor — performs within specification.

The 330100-90-00 8mm Proximity Probe is the most common companion to this extension cable. When the probe itself has reached end-of-life due to tip wear, cable damage near the probe body, or calibration drift, replacing both the probe and the extension cable simultaneously eliminates the risk of a mismatched measurement chain. The probe connects directly to this 330102-00-50-10-02-05 extension cable via the standard BNC interface, and the combined assembly then feeds into the 330180-51-00 Proximitor® Sensor, which conditions the eddy-current signal before it reaches the monitor rack.

On the monitor side, facilities upgrading from the older 3300/20 rack architecture to the Bently Nevada 3500 Series platform will find that the 3500/42M Proximity Monitor accepts the same –24 VDC analog signal produced by the 3300 XL measurement chain. This means the 330102-00-50-10-02-05 extension cable can remain in service even as the rack-level hardware is modernized, protecting the capital investment in field wiring. The 3500/15 Power Supply Module within the 3500 rack provides the regulated –24 VDC required to bias the Proximitor® sensor, and its output characteristics are fully compatible with the 3300 XL probe system.

For installations where the existing conduit run includes a 330130-080-00-00 Proximitor® Junction Box, the extension cable terminates at the junction box before the signal is routed to the control room via a separate interconnect cable. This architecture is common in large turbine-generator sets where the Proximitor® sensor must be mounted close to the machine bearing housing, and the junction box provides a weatherproof, EMI-shielded transition point. The 330102-00-50-10-02-05 is dimensioned to span the typical distance from the probe driver to the junction box in these installations.

Facilities that are simultaneously upgrading their HMI and SCADA layer will often pair the 3500 Series monitor rack with a Bently Nevada System 1 condition monitoring software platform. While the extension cable itself is transparent to the software layer, ensuring the correct cable part number is documented in the System 1 asset database is a critical step in maintaining calibration traceability and audit compliance. Similarly, when the 3500/22M Transient Data Interface module is installed for startup and shutdown transient capture, the signal quality delivered by a new, in-specification 330102-00-50-10-02-05 cable directly affects the accuracy of Bode plots and polar plots generated during commissioning.

For plants running mixed fleets — where some machines remain on the legacy 3300/16 Proximitor® while others have been upgraded to the 3300 XL Proximitor® — maintaining a stock of 330102-series extension cables simplifies spare parts management. A single cable family covers both the legacy and upgraded measurement chains, reducing the number of unique part numbers held in the maintenance storeroom and lowering the risk of incorrect cable installation during an emergency shutdown repair.

Retrofit Guidance FAQ

Q: Can I use the 330102-00-50-10-02-05 with my existing 3300/16 Proximitor® sensor without any wiring changes?
A: Yes. The connector geometry and impedance of the 330102 extension cable family are backward-compatible with the 3300/16 Proximitor®. No wiring modifications are required at the sensor end. Verify that the probe gap voltage falls within the –10 to –18 VDC window after installation to confirm correct system calibration.

Q: Do I need to re-program the 3500 Series monitor after replacing the extension cable?
A: No re-programming is required for a like-for-like cable replacement. The 3500/42M monitor stores calibration data (scale factor, gap voltage range) as configuration parameters tied to the probe-cable-Proximitor® system, not to the cable alone. If you are changing cable length (e.g., from 5m to 9m), you must update the system scale factor in the monitor configuration to account for the change in cable capacitance.

Q: Is the physical installation footprint the same as the cable I am replacing?
A: Yes. The 330102-00-50-10-02-05 uses the same armored coaxial construction and BNC connector dimensions as all cables in the 330102 family. It fits standard 3/4-inch conduit and occupies the same cable tray space as the legacy cable it replaces. No modifications to cable trays, conduit fittings, or junction box entries are required.

Q: What communication protocol does this cable support?
A: The 3300 XL proximity measurement system uses an analog DC voltage signal (nominally –24 VDC bias, with shaft displacement encoded as a voltage deviation). This is not a digital fieldbus protocol. The extension cable is a passive coaxial conductor and is protocol-agnostic; it carries the analog signal from the Proximitor® sensor to the monitor input card without any signal conversion.

Q: How do I verify the cable is functioning correctly after installation?
A: After installation, measure the DC gap voltage at the monitor input using a calibrated voltmeter. For an 8mm probe at the nominal gap of 1.0mm (40 mil), the expected gap voltage is approximately –10.4 VDC. Confirm the reading falls within the linear range specified in the Bently Nevada 3300 XL System Specifications (document GEK-91555). If the reading is outside range, check connector seating, cable continuity, and probe gap distance before concluding the cable is defective.

Q: Can this cable be used in hazardous area (Ex) installations?
A: The 330102-00-50-10-02-05 is designed for use with the 3300 XL system in standard industrial environments. For hazardous area installations requiring ATEX or IECEx certification, consult the Bently Nevada 3300 XL Hazardous Area Installation Guide and verify that the complete probe-cable-Proximitor® assembly carries the appropriate Ex certification for your zone classification.

Warranty Assurance

Every 330102-00-50-10-02-05 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination of the armored jacket and BNC connectors, continuity and insulation resistance testing, and impedance verification against the 3300 XL system specification. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment and three business days for resolution confirmation. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize plant downtime. Proof of purchase and a brief description of the failure mode are required to initiate a warranty claim; no return merchandise authorization (RMA) number is needed for initial contact.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance (CoC) and packing list with each shipment. Bulk orders of five units or more qualify for expedited processing and consolidated shipping. Lead time for in-stock units is typically 1–3 business days from order confirmation to dispatch.

TOPNLMS maintains a dedicated inventory of 330102-series extension cables and related 3300 XL system components to support emergency replacement requirements. If your plant operates a critical machine with a single-point-of-failure proximity measurement system, we recommend holding at least one spare 330102-00-50-10-02-05 cable in your on-site maintenance storeroom. Contact our technical sales team to discuss consignment stock arrangements or blanket purchase order programs for high-volume users.
