Bently Nevada 330102-00-40-10-11-05 Ruggedized Proximity Probe for Harsh Environments

Product Overview

Bently Nevada 330102-00-40-10-11-05 Ruggedized Proximity Probe for Harsh Environments

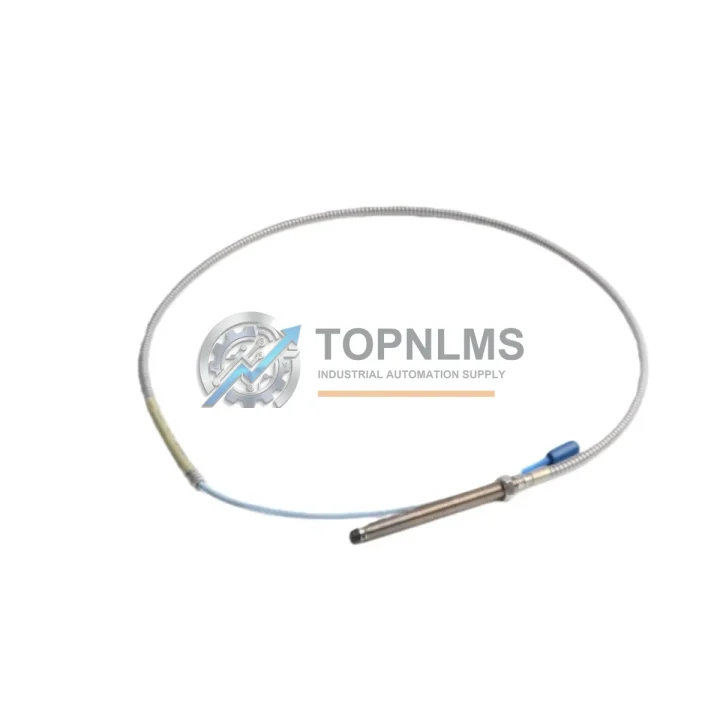

The Bently Nevada 330102-00-40-10-11-05 is an 8mm armored eddy-current proximity probe engineered for the 3300 XL series continuous machinery protection system. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, high-vibration compressor trains, and zones with intense electromagnetic interference — this transducer delivers the measurement precision and mechanical durability that critical rotating machinery monitoring demands.

As a core sensing element within the Bently Nevada 3300 XL architecture, the 330102-00-40-10-11-05 works in conjunction with the 330130 extension cable and the 330180 Proximitor® sensor to form a complete eddy-current transducer system. The armored construction of the probe cable provides exceptional resistance to mechanical abrasion, chemical exposure, and rodent damage — a critical advantage in petrochemical, power generation, and heavy industrial installations where cable integrity directly affects system uptime.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection architecture, the 330102-00-40-10-11-05 probe does not operate in isolation. It is the front-line sensing element that feeds critical vibration and position data into the broader Bently Nevada 3300 XL and 3500 series monitoring ecosystem. When paired with the Bently Nevada 3500/42M Proximitor® I/O Module, the system achieves API 670-compliant radial vibration monitoring for turbines, compressors, and pumps. The 3500/46M Hydro Monitor extends this capability to hydroelectric and large-frame rotating machinery.

For installations requiring simultaneous monitoring of multiple measurement planes, the probe integrates seamlessly with the Bently Nevada 3500/20 Rack Interface Module, which manages communication between field-mounted transducers and the plant DCS or safety instrumented system (SIS). In facilities running Emerson DeltaV or Honeywell Experion PKS distributed control systems, the 3500 rack’s Modbus TCP or FOUNDATION Fieldbus output provides direct integration without additional signal conditioning hardware.

Complementing the proximity probe in a complete machine train protection panel, engineers typically deploy the Bently Nevada 330500 Velomitor® CT piezoelectric velocity sensor for high-frequency casing vibration, and the 330400 series accelerometer for gear mesh and bearing defect frequency analysis. Together, these sensors provide multi-parameter coverage across the full frequency spectrum — from slow-roll runout at 1× to high-frequency structural resonance.

Power supply integrity is equally critical in harsh environments. The Bently Nevada 3500/15 Power Supply Module provides redundant 24 VDC rails to the monitoring rack, ensuring that a single power fault does not compromise the entire protection system. In remote or offshore installations where grid quality is poor, this redundancy is non-negotiable. Similarly, the 3500/92 Communication Gateway Module enables secure data transmission to SCADA and historian platforms even in electrically noisy environments.

For control cabinet installations, the 330102-00-40-10-11-05 is typically mounted in conjunction with Phoenix Contact CLIPLINE terminal blocks and Weidmüller signal conditioners to maintain signal integrity across long cable runs from the machine bearing housing to the control room. Proper grounding of the armored cable shield at a single point — typically at the Proximitor® sensor junction box — is essential to suppress common-mode EMI pickup in variable-frequency drive (VFD) environments.

Application in Critical Infrastructure

The Bently Nevada 330102-00-40-10-11-05 is deployed across the most demanding sectors of global critical infrastructure:

Oil & Gas: On offshore platforms and onshore gas compression stations, this probe monitors the radial shaft vibration of centrifugal compressors and gas turbines in real time. In these environments, the armored cable construction resists hydrocarbon fluid ingress and mechanical damage from personnel traffic, while the ATEX-rated probe body meets Zone 1 hazardous area requirements for explosive atmosphere installations.

Power Generation: Steam turbine generators in coal-fired and combined-cycle power plants rely on the 3300 XL transducer system for continuous shaft position and vibration monitoring. The probe’s wide operating temperature range — up to 177°C at the probe body — makes it suitable for high-pressure turbine bearing pedestals where ambient temperatures routinely exceed the limits of standard industrial sensors.

Mining & Minerals Processing: In ball mill drives, SAG mill pinion bearings, and large slurry pump installations, the armored probe cable withstands the severe mechanical vibration, dust, and moisture that characterize mineral processing environments. The IP67-rated probe body resists water jet cleaning and slurry splash without signal degradation.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from continuous vibration monitoring to prevent catastrophic bearing failure and unplanned service interruptions. The 330102-00-40-10-11-05 provides the measurement stability required for long-interval predictive maintenance programs.

Metallurgy & Steel: In rolling mill drives and blast furnace blower trains, where electromagnetic interference from large DC drives and induction furnaces is severe, the shielded armored cable of this probe maintains signal integrity that unshielded sensors cannot achieve. This makes it the preferred choice for steel plant machinery protection engineers specifying replacement transducers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the Bently Nevada 3300 XL datasheet. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the failure mode. Replacement units are typically dispatched within 3–5 business days of claim verification.

Q2: How is each unit tested before shipment?
Every 330102-00-40-10-11-05 unit undergoes pre-shipment functional verification including output voltage linearity check across the specified gap range, cable continuity and insulation resistance test, and visual inspection of the armored cable jacket and probe tip for mechanical damage. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request for critical plant applications.

Q3: Is this probe compatible with my existing 3300 XL or 3500 series system?
Yes. The 330102-00-40-10-11-05 is a direct drop-in replacement for any 8mm probe in the Bently Nevada 3300 XL eddy-current transducer family. It is fully compatible with the 330180 Proximitor® sensor, 330130 extension cables, and all 3500 series monitor modules that accept 3300 XL transducer inputs, including the 3500/42M, 3500/46M, and 3500/40M. No recalibration of the monitor is required when replacing a like-for-like probe in the same gap range.

Q4: Can TOPNLMS support long-term or recurring supply requirements?
Yes. TOPNLMS maintains standing inventory of high-demand Bently Nevada 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. For customers with recurring procurement needs, we offer reserved stock arrangements and priority dispatch agreements. Contact our technical sales team at [email protected] or +86 18359293191 to discuss volume pricing and supply continuity programs.
