Bently Nevada 330102-00-12-90-02-05 Original Industrial Spare 3300 XL Compatible: System Stability Through Verified Spare Parts

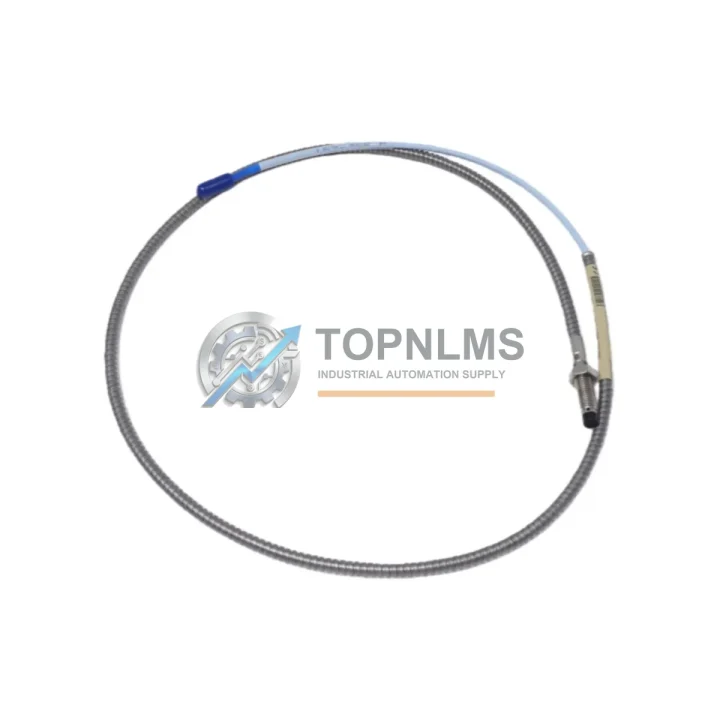

In continuous-process industries — oil & gas, petrochemical, power generation, and heavy manufacturing — rotating machinery health is the backbone of plant uptime. The Bently Nevada 330102-00-12-90-02-05 is an original 8mm Eddy Current Proximity Probe from the industry-standard 3300 XL Series, engineered for non-contact vibration and position measurement on critical rotating shafts. When this probe fails or degrades, the entire machinery protection loop is compromised. Stocking a verified original replacement is not optional — it is a fundamental element of any serious predictive maintenance program.

This probe operates within the Bently Nevada 3300 XL monitoring ecosystem, delivering precise radial vibration, axial position, and differential expansion measurements. Its 8mm tip diameter and standardized cable length (330102-00-12-90-02-05 denotes 12-inch extension cable) make it a direct drop-in replacement for existing installations without recalibration of the full loop — provided the matching 3300 XL Proximitor® Sensor (such as the 330180 series) and extension cable assembly remain in service. Maintaining original OEM components in the vibration monitoring chain ensures signal integrity and avoids false trips or missed alarms that can result from mixed-generation hardware.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity probe replacement event is rarely an isolated task. When a technician opens a machinery protection panel or bearing housing to replace the 330102-00-12-90-02-05, it is best practice to inspect and — where wear indicators are present — simultaneously replace or bench-test the surrounding components that share the same signal chain and environmental exposure.

The 3300 XL Proximitor® Sensor (330180 series) is the signal conditioning module that pairs directly with this probe. If the probe has been in service for more than three years or has experienced a cable fault event, the Proximitor should be tested for output linearity and DC bias voltage. A degraded Proximitor can produce false vibration readings even with a new probe installed, leading to unnecessary trips or — more dangerously — masked real vibration events.

The extension cable assembly (typically 330130 series for 3300 XL systems) is the most mechanically vulnerable element in the eddy current loop. Armored cable fatigue, connector corrosion, and insulation breakdown are common failure modes in high-temperature or high-vibration bearing housings. Replacing the extension cable at the same time as the probe eliminates the most common source of post-maintenance signal noise.

At the panel level, inspect the 3300/16 or 3500/42 monitor module that receives the Proximitor output. Verify that the OK relay is functioning, that the danger and alert setpoints have not drifted, and that the module firmware is current. If the plant runs a 3500 Series Machinery Protection System, also check the 3500/20 rack power supply module — a marginal power supply is a common root cause of intermittent monitor faults that are incorrectly attributed to probe failure.

For plants operating steam turbines, compressors, or large pumps, the vibration monitoring loop is only one layer of protection. During the same maintenance window, verify the condition of thermocouple or RTD temperature sensors on the bearing housing, check the speed sensor (330980 series or equivalent) for gap voltage and signal integrity, and confirm that the Keyphasor® transducer — if installed — is properly gapped and producing a clean once-per-revolution pulse. These components collectively define the health picture of the rotating asset.

If the plant uses a System 1® Evolution or System 1 Condition Monitoring platform, ensure that the new probe’s calibration data is entered correctly and that the dynamic data historian is capturing baseline waveforms immediately after restart. Establishing a new vibration baseline within the first 24 hours of operation is critical for early detection of any installation-related anomalies such as probe gap errors or shaft runout contributions.

For facilities managing aging DCS or PLC-integrated protection systems — including those running Honeywell Experion, Emerson DeltaV, or Siemens PCS 7 integration with Bently Nevada racks — confirm that the 4–20 mA or digital output from the monitor module is being received correctly by the process controller after the probe swap. A simple loop check at the DCS I/O card prevents the common scenario where a successful field repair goes undetected at the control room level due to a wiring fault introduced during maintenance.

Strategic Replacement Solutions

The 330102-00-12-90-02-05 is a legacy-compatible original part that bridges older 3300 Series installations and current 3300 XL infrastructure. Many plants that commissioned rotating machinery in the 1990s and 2000s are still operating original Bently Nevada monitoring hardware. Rather than undertaking a full system upgrade — which requires new cabling, new monitors, and a full recalibration outage — sourcing original OEM probes allows maintenance teams to extend the service life of existing installations by five to ten years at a fraction of the capital cost.

This probe is a direct replacement for worn or damaged units without requiring changes to the Proximitor gap voltage setpoint, provided the replacement probe is from the same 3300 XL 8mm family. The standardized scale factor (200 mV/mil) means that existing alarm and danger setpoints remain valid, eliminating the need for a formal Management of Change (MOC) process in most jurisdictions — a significant operational advantage during unplanned outages.

For plants managing multi-train installations — such as parallel compressor strings or turbine-generator sets — stocking a minimum of two units of the 330102-00-12-90-02-05 per train is recommended. This supports a rapid swap strategy: the failed probe is replaced from stock, the plant returns to operation, and the spare inventory is replenished on a planned procurement cycle rather than an emergency basis. Emergency procurement of OEM Bently Nevada parts can carry lead times of two to six weeks; on-hand stock eliminates this risk entirely.

All units supplied by TOPNLMS are tested for output linearity and DC bias voltage prior to shipment. Each probe is verified against the standard 3300 XL calibration curve and ships with a test report. The 12-month warranty covers functional failure under normal operating conditions and provides a clear recourse path if a unit does not perform to specification after installation.

Support FAQ

Q1: Is the 330102-00-12-90-02-05 compatible with both the 3300 and 3300 XL monitor series?
A: The 330102-00-12-90-02-05 is designed for the 3300 XL 8mm system. It is electrically compatible with 3300 XL Proximitor sensors (330180 series). Compatibility with older 3300 (non-XL) monitors should be verified against the specific monitor model’s input specification, as scale factor and OK threshold voltages may differ.

Q2: What pre-shipment testing is performed on each unit?
A: Each probe is tested for DC output voltage at standard gap distances, output linearity across the linear range, and cable/connector continuity. A test report is included with shipment. Units that do not meet the 3300 XL calibration specification are not shipped.

Q3: How should I verify the probe gap after installation?
A: Use a calibrated digital voltmeter to measure the Proximitor output voltage with the shaft stationary. For the 3300 XL 8mm system, the nominal gap voltage is approximately -10.0 VDC at the recommended 1.0 mm (40 mil) gap. Refer to Bently Nevada installation drawing 141536-01 for the full gap-versus-voltage calibration curve.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover physical damage from improper installation, chemical exposure beyond the probe’s rated environment, or electrical overstress. To initiate a warranty claim, contact TOPNLMS with the order number, installation date, and a description of the failure mode. Return shipping and replacement unit dispatch are coordinated within 5 business days of claim receipt.
