Bently Nevada 330101-32-70-05-12-05 Replacement 3300 XL

Product Overview

Bently Nevada 330101-32-70-05-12-05 Replacement 3300 XL — Seamless Transition for Legacy Vibration Monitoring Systems

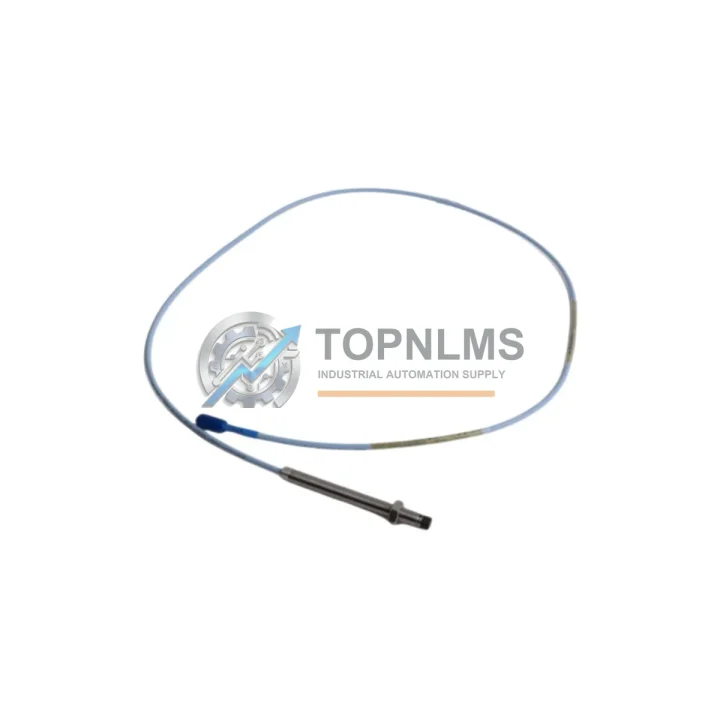

When a Bently Nevada 3300 XL Series proximity transducer reaches end-of-life or fails unexpectedly on the plant floor, every hour of unplanned downtime translates directly into production loss. The Bently Nevada 330101-32-70-05-12-05 is an 8mm eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery — turbines, compressors, pumps, and gearboxes operating in demanding industrial environments. This listing provides a fully tested, original-specification replacement unit ready for immediate drop-in installation into existing 3300 XL monitoring architectures.

Whether you are upgrading a legacy 3300 Series installation to the 3300 XL platform, replacing a failed sensor during a scheduled outage, or building a strategic spare-parts inventory to protect critical asset uptime, the 330101-32-70-05-12-05 delivers the electrical and mechanical compatibility your system requires without re-engineering the signal chain.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy 3300 Series or competing eddy-current platform to the Bently Nevada 3300 XL system involves more than swapping the probe. The 330101-32-70-05-12-05 transducer operates as part of a tightly integrated signal chain, and each component in that chain must be verified or replaced to ensure measurement accuracy and system stability.

The transducer pairs directly with a 3300 XL proximitor/driver — typically a 330180-X1-05 or 330180-51-05 — which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring system. If the existing driver is a legacy 3300 (non-XL) model, it must be replaced simultaneously with the probe; mixing XL probes with non-XL drivers will produce calibration errors and false alarms. During the outage window, it is advisable to inspect the extension cable (typically a 330130 series armored cable) for jacket damage, connector corrosion, or impedance drift caused by years of thermal cycling near hot bearing housings.

On the monitoring rack side, the conditioned signal feeds into a 3500 Series machinery protection rack — commonly a 3500/42M proximity monitor card or a 3500/40M proximitor I/O module. These cards accept the standard -18 VDC bias and 200 mV/mil sensitivity output of the 3300 XL system without re-ranging. If the plant is still running an older 3300 Series rack, this migration event is an ideal opportunity to evaluate a full rack upgrade to the 3500 platform, which offers enhanced diagnostics, Modbus/TCP and PROFIBUS communication options, and improved integration with modern DCS and SCADA systems.

For facilities running Bently Nevada System 1 condition monitoring software, the 3300 XL transducer data flows seamlessly through the 3500 rack into the historian without requiring tag remapping, provided the driver and I/O card configurations are updated to reflect the new probe serial number and calibration certificate. Plants using third-party condition monitoring platforms should verify that the 4–20 mA output module or relay output card in the 3500 rack is configured to match the alarm setpoints previously established for the legacy probe.

Beyond the vibration signal chain, a comprehensive outage inspection should include the Keyphasor transducer (often a 330980 or 330905 series) mounted on the shaft reference mark. The Keyphasor provides the once-per-revolution timing signal essential for phase and amplitude analysis; a degraded Keyphasor will corrupt vector data even if the radial probes are perfectly calibrated. Similarly, the thrust position transducer — typically a second 8mm or 5mm proximity probe mounted axially — should be inspected and gap-verified during the same access window to avoid a repeat entry into the bearing housing area.

For plants managing multiple machine trains, maintaining a strategic inventory of the 330101-32-70-05-12-05 alongside matched 330130 extension cables and at least one spare 330180 driver per machine type reduces mean-time-to-repair (MTTR) from days to hours. A single unplanned turbine trip caused by a failed proximity probe can cost multiples of the entire spare-parts inventory value in lost production and emergency logistics.

Retrofit Guidance FAQ

Q1: Can I install the 330101-32-70-05-12-05 directly into a system currently using a legacy Bently Nevada 3300 (non-XL) driver?
No. The 3300 XL probe series is calibrated specifically for 3300 XL drivers. Installing an XL probe on a non-XL driver will result in a sensitivity mismatch (the output scale factor will be incorrect), leading to inaccurate vibration readings and potential false trips or missed alarms. The driver must be upgraded to a compatible 3300 XL proximitor simultaneously.

Q2: Is the physical installation thread and mounting bracket compatible with the existing probe holder?
Yes. The 330101-32-70-05-12-05 uses a standard M10 x 1.0 thread, which is mechanically identical to the legacy 3300 Series 8mm probes. The probe holder, lock nut, and armored conduit entry point do not require modification. Gap setting must be re-verified after installation using a calibrated DC voltmeter; the nominal gap voltage for the 3300 XL system is -10.0 VDC ± 0.5 VDC at the linear midpoint.

Q3: What communication protocols does the 3300 XL system support when integrated with a 3500 monitoring rack?
The 3500 Series rack supports Modbus RTU, Modbus/TCP, and PROFIBUS DP via optional communication gateway modules. For plants integrating with a DCS (e.g., Emerson DeltaV, Honeywell Experion, or ABB 800xA), the 3500 rack can be configured to output 4–20 mA analog signals or digital status via the plant communication bus. No changes to the transducer or driver are required to enable these communication options.

Q4: What pre-shipment testing and warranty coverage is provided?
Every 330101-32-70-05-12-05 unit is bench-tested prior to shipment to verify output sensitivity (200 mV/mil ± 5%), bias voltage (-18 VDC ± 1 VDC), and cable continuity. Units are shipped with a calibration record. A 12-month warranty covers manufacturing defects and electrical performance under normal operating conditions. Replacement or refund is processed within 5 business days of confirmed fault diagnosis. Our technical team is available at [email protected] to support installation verification and commissioning queries.

Warranty Assurance

Every unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Pre-shipment inspection includes electrical performance verification, connector integrity check, and cable continuity test. A calibration record accompanies each unit. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement shipment or issue a refund within 5 business days. Our after-sales team responds to technical queries within 24 hours on business days. We support customers through installation verification, gap-setting guidance, and driver compatibility confirmation to ensure a successful first-time installation.
