Bently Nevada 330101-00-75-20-02-CN 3300 XL Upgrade

Product Overview

Bently Nevada 330101-00-75-20-02-CN 3300 XL Upgrade: Seamless Transition from Legacy Vibration Monitoring Systems

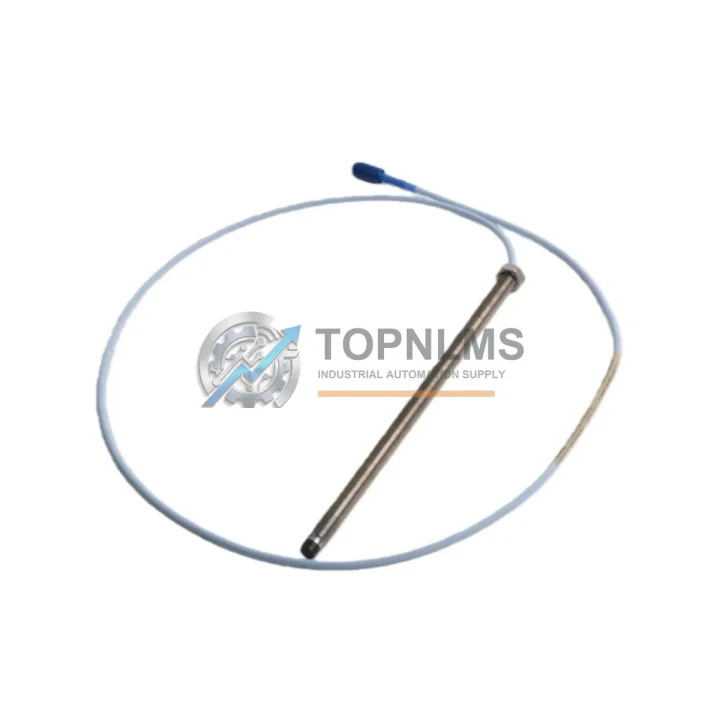

The Bently Nevada 330101-00-75-20-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series machinery protection platform. As aging vibration monitoring infrastructure reaches end-of-life or becomes increasingly difficult to source, this probe serves as the definitive drop-in replacement and upgrade solution for facilities operating legacy Bently Nevada 3300, 3300/16, and earlier 7200 Series installations. Whether your plant is executing a full DCS migration or simply replacing a worn field sensor, the 330101-00-75-20-02-CN delivers the signal fidelity, dimensional compatibility, and protocol alignment your system demands — with zero compromise on uptime.

Eddy-current proximity probes are the backbone of rotating machinery protection. In turbines, compressors, pumps, and motors, they provide continuous non-contact measurement of shaft radial vibration, axial position, and differential expansion. The 330101-00-75-20-02-CN operates on the same 8mm tip diameter and standard 5-metre extension cable interface as its predecessors, meaning existing conduit runs, probe holders, and junction boxes require no modification during replacement. The probe’s output sensitivity of 7.87 mV/µm (200 mV/mil) is fully compatible with the 3300 XL 8mm Proximitor® Sensor (such as the 330180-X1-05 series), ensuring that your existing signal conditioning hardware continues to function without recalibration.

For facilities transitioning from older 3300/16 Series or 3300/55 Series monitors, the 330101-00-75-20-02-CN integrates directly into the existing rack architecture. The probe connects via the standard TNC-to-BNC coaxial interface through the 330130 Series extension cables, maintaining the same impedance and signal path geometry. This eliminates the need to re-pull field wiring — a critical advantage in confined machinery spaces where cable access is restricted. The probe tip material and housing are rated for continuous operation in oil-mist, high-humidity, and elevated-temperature environments typical of turbomachinery bearing housings.

When upgrading to a 3300 XL 16-channel monitor from an older 3300/16 rack, the 330101-00-75-20-02-CN is the recommended field sensor. The monitor’s channel configuration accepts the probe’s standard -24 VDC bias voltage and 200 mV/mil scale factor without any jumper or DIP switch changes. Paired with the 3300 XL Keyphasor® module, the system can simultaneously track shaft speed, vibration amplitude, and phase angle — enabling full API 670 compliance for critical machinery protection. The probe’s stainless steel housing and armored cable jacket are compatible with the standard 330105 Series probe holders used across most OEM turbine and compressor skid designs.

For plants executing a broader control system migration — for example, moving from a legacy Honeywell TDC 3000 or Foxboro I/A Series DCS to a modern platform — the vibration monitoring layer is often the last subsystem to be addressed. The 330101-00-75-20-02-CN allows the machinery protection layer to be refreshed independently of the DCS migration timeline. The probe’s analog 4–20 mA output (via the Proximitor sensor) interfaces cleanly with any modern DCS analog input card, including those from Emerson DeltaV, ABB System 800xA, and Siemens SIMATIC PCS 7 platforms, without requiring signal converters or isolators in most installations.

Commissioning the 330101-00-75-20-02-CN in the field follows the standard Bently Nevada gap voltage procedure. With the shaft stationary, the technician adjusts the probe-to-shaft gap to achieve the nominal -10.0 VDC output from the Proximitor sensor, confirming the probe is operating in the linear range of its characteristic curve. This procedure is identical to that used for the earlier 330101-00-75-10-02-CN (1-metre cable) and 330101-00-75-30-02-CN (9-metre cable) variants, allowing maintenance teams to apply existing commissioning documentation without revision. The probe is also compatible with the Bently Nevada 3500 Series rack system when used with the appropriate 3500/42M Proximitor I/O module, providing a clear upgrade path for facilities planning a future migration to the 3500 platform.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring installation to a 3300 XL-based system typically involves more than a single probe swap. In most field scenarios, the 330101-00-75-20-02-CN is deployed alongside a set of complementary components that together ensure signal integrity, mechanical fit, and system-level compliance.

The 330180-X1-05 3300 XL 8mm Proximitor® Sensor is the signal conditioning unit that pairs directly with this probe. It converts the probe’s raw eddy-current signal into the calibrated voltage output consumed by the monitor rack. Where existing Proximitor sensors are aged or show drift, replacing them in tandem with the probe eliminates a common source of false alarms and calibration errors. The 330130-080-00-00 extension cable (8-metre) is frequently required when the Proximitor sensor is mounted remotely from the probe tip — a common arrangement in large turbine pedestals where the junction box is located outside the bearing housing zone.

At the monitor rack level, the 3300 XL 16-channel monitor provides the channel density needed for multi-bearing machines. For facilities upgrading from a 3300/16 rack, the XL monitor slots into the same 19-inch rack space, and the existing 3300 XL power supply module (typically a -24 VDC redundant unit) can often be retained. The 3300 XL Keyphasor® module is added when phase-referenced vibration analysis is required — essential for balancing and advanced diagnostics on variable-speed machines.

For installations where the DCS analog input cards require galvanic isolation from the vibration monitoring outputs, a signal isolator / repeater module (such as a DIN-rail-mounted 4–20 mA isolator) is inserted between the Proximitor output and the DCS marshalling cabinet. This is particularly relevant when migrating to modern platforms like Emerson DeltaV M-Series I/O or Siemens ET 200SP distributed I/O, where ground loop isolation is a standard requirement. In parallel, the 3500/42M Proximitor I/O module provides a direct upgrade path for facilities planning a future migration to the Bently Nevada 3500 Series rack — the 330101-00-75-20-02-CN probe is fully compatible with this module, protecting the field wiring investment across both migration phases.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the probe?
Yes. The 330101-00-75-20-02-CN uses the same TNC connector interface and cable geometry as the legacy 3300 Series probes. Existing conduit runs and junction box terminations are retained without modification. Only the probe body and tip assembly are replaced.

Q: Do I need to recalibrate the Proximitor sensor after installing this probe?
A gap voltage check is required at commissioning, but full recalibration of the Proximitor sensor is not necessary if the sensor is in good condition. Adjust the probe-to-shaft gap to achieve -10.0 VDC ±0.5 VDC at the Proximitor output with the shaft stationary. This procedure is identical to the original installation procedure.

Q: Is this probe compatible with the 3500 Series monitor rack?
Yes, when used with the 3500/42M Proximitor I/O module. The probe’s output characteristics are within the input specification of the 3500/42M, making it a valid field sensor for 3500 Series installations. Confirm the I/O module firmware version supports 8mm probe configuration before commissioning.

Q: What is the physical installation space requirement?
The probe body dimensions are identical to the legacy 3300 Series 8mm probes. Existing probe holders (330105 Series) and armored cable clamps are reused without modification. No machining or bracket fabrication is required.

Q: Can this probe interface with a non-Bently Nevada DCS or safety system?
Yes. The 4–20 mA analog output from the paired Proximitor sensor is a standard industrial signal compatible with any DCS, SIS, or PLC analog input card. Emerson DeltaV, ABB 800xA, Siemens PCS 7, and Yokogawa CENTUM VP have all been used in conjunction with 3300 XL Series vibration monitoring outputs in documented migration projects.

Q: What communication protocol does the 3300 XL monitor use for digital integration?
The 3300 XL monitor supports Modbus RTU via a serial interface card, enabling integration with SCADA systems and historian platforms. For facilities requiring OPC-DA or OPC-UA connectivity, a Modbus-to-OPC gateway is used. The probe itself is an analog device; digital protocol considerations apply at the monitor rack level.

Warranty Assurance

Every 330101-00-75-20-02-CN unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe undergoes output sensitivity verification and visual inspection to confirm dimensional compliance and connector integrity. Units that do not meet Bently Nevada specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse, with DHL Express and FedEx International Priority available for urgent requirements. Customs documentation, including commercial invoice and packing list, is prepared to minimize clearance delays at the destination port.

For procurement teams requiring traceability documentation, TOPNLMS provides a test report and shipment record for each unit. Bulk orders (5 units and above) are eligible for priority allocation from bonded stock, with lead times confirmed at order placement. Payment terms, export licensing, and HS code documentation are available upon request.

Stock availability is updated in real time. If the 330101-00-75-20-02-CN is temporarily out of stock, our team will advise on lead time and, where applicable, recommend a functionally equivalent substitute from the 3300 XL probe family.
