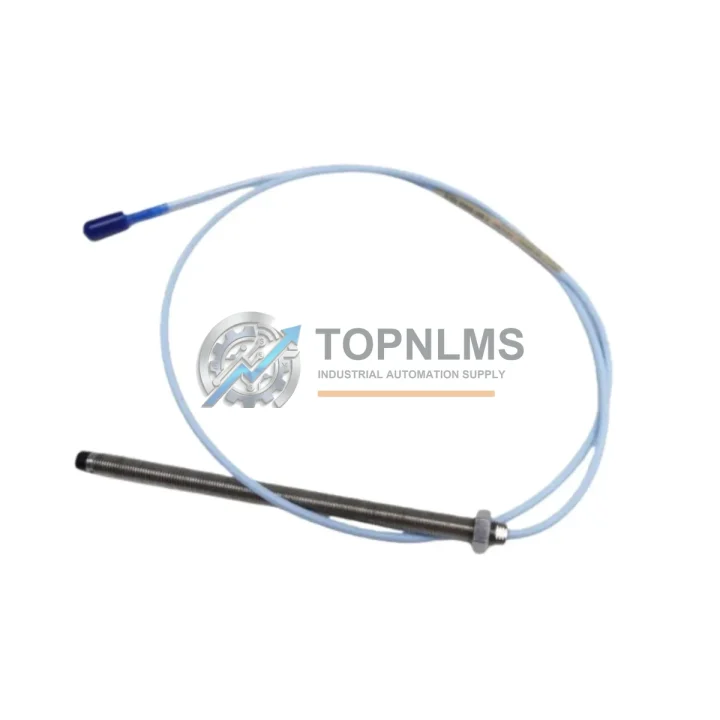

Bently Nevada 330101-00-66-20-02-CN Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330101-00-66-20-02-CN is a precision eddy-current proximity probe engineered for continuous, reliable operation in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series vibration monitoring system, this 25mm probe with 5-metre armoured cable delivers uncompromising shaft displacement and vibration measurement accuracy — even under extreme temperature cycling, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference (EMI) common to rotating machinery installations.

Designed for permanent installation on critical rotating equipment including steam turbines, gas compressors, centrifugal pumps, and large induction motors, the 330101-00-66-20-02-CN maintains measurement integrity where conventional sensors fail. Its ruggedised housing and armoured cable assembly resist vibration-induced fatigue, chemical exposure, and ingress from process fluids — making it the preferred choice for plant engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330101-00-66-20-02-CN proximity probe is rarely deployed in isolation. In a fully protected rotating machinery train, it works in concert with a complete suite of Bently Nevada 3300 XL and 3500 Series components to deliver system-level protection. The probe connects to a Bently Nevada 330180-91-00 extension cable, which routes the low-level signal to a Bently Nevada 330130-080-00-00 proximitor/driver — the signal conditioning module that converts probe gap voltage into a calibrated output compatible with the plant’s monitoring infrastructure.

At the rack level, the conditioned signal feeds into a Bently Nevada 3500/40M Proximitor Monitor or a 3500/42M Proximitor/Seismic Monitor, which performs real-time alarm and danger threshold evaluation. For axial position monitoring on thrust bearings, the same probe series integrates with the 3500/45 Position Monitor. Keyphasor signals — essential for phase-referenced vibration analysis — are captured by a dedicated Bently Nevada 3500/25 Keyphasor Module, enabling full vector analysis of shaft orbit and balance resonance data.

In hazardous area installations classified as Zone 1 or Zone 2 under IECEx/ATEX, the system is complemented by Bently Nevada 3300 XL Intrinsically Safe barriers and galvanic isolators to maintain safe energy levels at the probe tip. Power to the 3500 rack is supplied through a redundant Bently Nevada 3500/15 Power Supply Module, ensuring that a single power fault does not interrupt continuous machinery protection. Communication to the plant DCS or historian is handled via the 3500/92 Communication Gateway Module, supporting Modbus TCP, OPC-DA, and proprietary System 1 protocols — enabling seamless integration with ABB, Emerson DeltaV, Honeywell Experion, and Siemens PCS 7 distributed control systems.

Application in Critical Infrastructure

The Bently Nevada 330101-00-66-20-02-CN is a proven workhorse across the most safety-critical sectors of global industry. In oil and gas upstream and midstream facilities, it monitors shaft radial vibration on high-speed centrifugal compressors and gas turbine-driven pipeline pumps, where a bearing failure can trigger a catastrophic process upset. Offshore platform operators rely on its IP67-rated housing to withstand salt-laden humid air and the constant mechanical vibration of floating production units.

In thermal and combined-cycle power generation, the probe is installed on steam turbine LP and HP shafts, providing the continuous displacement data that allows operators to detect rotor bow, oil whirl, and rub events before they escalate to forced outages. Nuclear auxiliary facilities use the 3300 XL system — including this probe — as part of their seismically qualified machinery protection architecture.

In mining and mineral processing, large SAG mill drive motors and crusher pinion shafts operate under extreme dust loading and shock loading. The armoured cable of the 330101-00-66-20-02-CN resists abrasion from mineral dust and mechanical impact, maintaining signal integrity where flexible conduit installations would degrade rapidly. Similarly, in metallurgical plants — blast furnace blower trains, rolling mill main drives, and continuous caster pinch rolls — the probe’s high-temperature rating allows installation close to process heat sources without signal drift.

Water and wastewater treatment facilities deploy the 3300 XL proximity system on large vertical turbine pumps and blower trains, where the combination of high humidity, chemical vapour, and continuous duty demands a sensor with proven long-term stability. The 330101-00-66-20-02-CN’s non-contact measurement principle eliminates wear, making it ideal for assets that run continuously for 18–24 months between planned maintenance windows.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Bently Nevada 330101-00-66-20-02-CN unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, calibration drift beyond published tolerances, and premature failure under normal operating conditions. In the event of a warranty claim, we provide a replacement unit or full refund after technical review. Our warranty process is documented and traceable — each unit ships with a test record and serial number log.

Q2: How is each unit tested before shipment?
All proximity probes undergo pre-shipment functional verification including gap-voltage linearity checks across the full 0–2.54 mm measurement range, cable continuity and insulation resistance testing, and visual inspection of the probe tip, housing, and connector. Units that do not meet Bently Nevada published sensitivity tolerances (7.87 ± 0.25 V/mm) are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is the 330101-00-66-20-02-CN compatible with my existing 3300 XL or 3500 Series system?
Yes. The 330101-00-66-20-02-CN is a direct system-compatible component within the Bently Nevada 3300 XL Proximity Transducer System. It is designed to interface with 3300 XL extension cables (330180 series) and 3300 XL proximitor drivers (330130 series), and its output is fully compatible with all 3500 Series rack monitors that accept 3300 XL probe inputs. If you are replacing an existing probe on a running system, no recalibration of the driver or monitor is required provided the gap is reset to the original installation specification.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains buffer stock of the 330101-00-66-20-02-CN and related 3300 XL system components to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping to major industrial hubs globally, with same-day dispatch available for in-stock items. For customers with critical spares programmes, we can discuss consignment stock arrangements and long-term supply agreements to ensure continuity of machinery protection coverage.
