Bently Nevada 330101-00-32-05-01-05 Upgrade for 3300 XL: Seamless Transition from Legacy Vibration Monitoring Systems

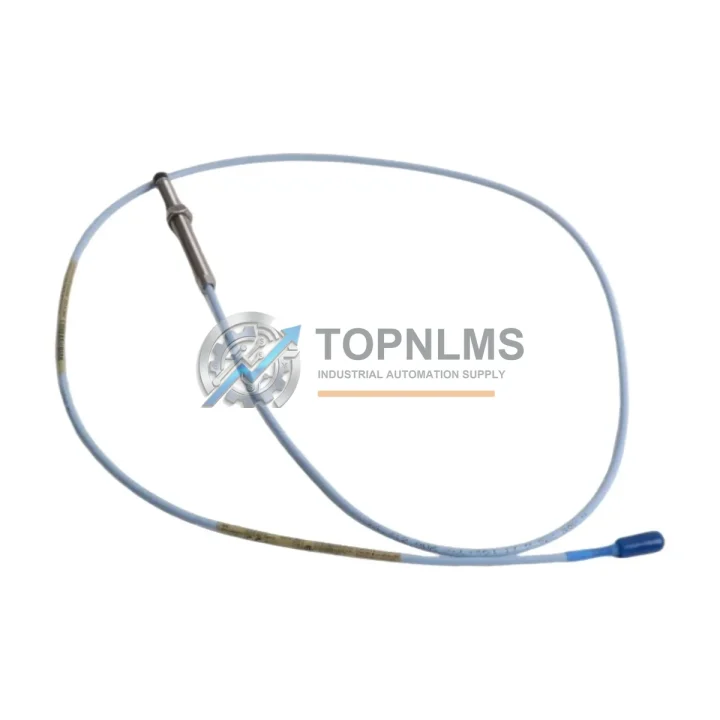

When your plant’s condition monitoring infrastructure depends on continuous, accurate shaft vibration data, a failed or end-of-life proximity probe cannot wait. The Bently Nevada 330101-00-32-05-01-05 is an 8mm eddy current proximity probe with a 5-metre extension cable, engineered for the 3300 XL Series monitoring platform. Whether you are replacing a worn probe in an existing rack, upgrading from an older 3300/16 Series installation, or standardizing your spare parts inventory across multiple turbine trains, this SKU delivers a direct, validated replacement path with minimal engineering overhead.

The 3300 XL system architecture is built around a matched probe-cable-driver trio. The 330101-00-32-05-01-05 probe is factory-calibrated to work with the 330130 extension cable and the 330180 proximitor/driver, maintaining the precise gap voltage sensitivity (–200 mV/mil, –7.87 V/mm) required by the 3500/40M proximitor monitor or the legacy 3300/16 monitor. When migrating from an older 7200 Series or early 3300 installation, engineers often discover that the probe tip diameter, thread size (M10 × 1), and cable connector (MIL-C-5015 style) are physically identical, allowing a drop-in swap without re-machining the probe boss or rewiring the junction box.

For sites running a Bently Nevada 3500 Series rack, the 330101-00-32-05-01-05 integrates directly with the 3500/42M velocity and acceleration monitor and the 3500/22M transient data interface, preserving all existing Keyphasor® reference signals and gap alarm setpoints stored in the rack configuration. No firmware changes are required on the 3500/05 power supply module or the 3500/01 rack interface module. This is a critical advantage during a planned outage window: technicians can swap the probe, verify the static gap voltage at the proximitor terminal strip, and return the machine to service without re-entering alarm thresholds or recalibrating the monitor card.

In DCS-integrated environments where the 3300 XL output feeds a Honeywell Experion PKS or Emerson DeltaV via 4–20 mA or Modbus RTU, the signal chain remains unchanged. The probe’s output is conditioned by the proximitor driver before reaching the monitor card, so the DCS engineering team sees no change in the I/O tag scaling or alarm logic. This is equally true for sites using a System 1 Evolution software platform for online machinery diagnostics — the probe replacement is transparent to the historian and trending database.

Physical installation follows the standard Bently Nevada procedure: clean the probe boss, apply anti-seize compound to the M10 thread, hand-tighten and then torque to 2.3 N·m, and set the initial gap to 2.0 mm (approximately –10.2 VDC at the proximitor output). The 5-metre armoured extension cable routes cleanly through standard 3/4-inch conduit and is compatible with existing 330130-080-00-00 cable assemblies already installed in the field. For installations where the original cable has been damaged or the routing path has changed, the extension cable can be replaced independently without disturbing the probe itself.

Procurement teams sourcing this part for MRO inventory should note that the 330101-00-32-05-01-05 is a current-production SKU, not a remanufactured or refurbished unit. Each probe ships with a factory test certificate confirming sensitivity, linearity, and temperature performance across the rated –35 °C to +177 °C operating range. Units are individually packaged with the probe tip protected by a plastic cap and the cable connector sealed against moisture ingress during transit from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful probe replacement rarely involves a single component. During a 3300 XL or 3500 Series retrofit, field engineers typically audit the entire measurement chain. The 330130 extension cable should be inspected for jacket abrasion and connector corrosion; if the cable has been in service for more than five years in a high-temperature or high-vibration environment, replacing it alongside the probe eliminates a common source of intermittent gap voltage drift. The 330180 proximitor driver — the signal conditioning module that converts the probe’s inductance change into a DC voltage — should be bench-tested for output linearity before reinstallation; a degraded proximitor can mask a healthy probe’s true performance.

For sites upgrading from a 3300/16 monitor card to a modern 3500/40M proximitor monitor, the rack migration also involves replacing the 3500/05 power supply module if the existing supply is a single-channel unit, and verifying that the 3500/01 rack interface module firmware supports the new monitor card’s configuration file. The 3500/22M transient data interface is often added during this upgrade to enable full waveform capture for machinery diagnostics, which requires no changes to the probe or cable but does require a new I/O cable from the monitor card to the TDI module.

In installations where the probe boss is located in a high-temperature zone near a steam turbine bearing housing, a high-temperature extension cable (330130-080-00-CN) rated to +260 °C may be substituted for the standard cable. The Keyphasor® probe — typically a 330180-91-00 or 330180-51-00 proximitor paired with a dedicated once-per-revolution probe — should also be verified for gap and sensitivity during the same outage window to avoid a second unplanned shutdown. Completing the full measurement chain audit — probe, cable, proximitor, monitor card, and Keyphasor® — during a single planned maintenance window is the most cost-effective approach to long-term system reliability.

Retrofit Guidance FAQ

Q: Can I replace only the probe without replacing the extension cable and proximitor?
A: Yes. The 330101-00-32-05-01-05 is designed for independent replacement. As long as the existing 330130 extension cable and 330180 proximitor are within specification, the probe can be swapped without disturbing the rest of the measurement chain. Verify the static gap voltage (target: –10.2 VDC ± 0.5 V at 2.0 mm gap) after installation.

Q: Is this probe compatible with the legacy 3300/16 monitor?
A: Yes. The 3300 XL probe series is backward-compatible with the 3300/16 monitor. The sensitivity and bias voltage specifications are identical, so no alarm setpoint changes are required.

Q: What programming or configuration changes are needed after replacement?
A: None, provided the replacement probe is the same SKU. The 3500 Series rack stores configuration in non-volatile memory on the monitor card. A same-SKU probe swap does not trigger a configuration mismatch alarm. If upgrading from a different probe model, a rack configuration download via Rack Configuration Software (RCS) may be required.

Q: How much physical space is required for installation?
A: The probe body is 8 mm in diameter with an M10 × 1 threaded section. Standard probe boss dimensions apply. The 5-metre cable routes through 3/4-inch conduit. No additional panel or cabinet space is required beyond the existing probe boss and conduit path.

Q: Can this probe be used with a Modbus RTU or PROFIBUS-integrated monitoring system?
A: The probe itself outputs an analog signal. Protocol conversion (Modbus RTU, PROFIBUS DP, or EtherNet/IP) is handled by the 3500 Series monitor card and the rack interface module, not the probe. Replacing the probe has no effect on the communication protocol configuration.

Q: What is the recommended gap setting and how do I verify it?
A: Set the initial gap to 2.0 mm using a non-metallic feeler gauge or by monitoring the proximitor output voltage (target: –10.2 VDC). Fine-adjust within the linear range (–10.2 VDC ± 2 V) to match the machine’s normal operating eccentricity position.

Warranty Assurance

Every Bently Nevada 330101-00-32-05-01-05 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test verifying probe sensitivity, cable continuity, connector integrity, and packaging condition. Units that do not meet factory specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. Replacement units are dispatched from our Xiamen warehouse via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to most destinations.

For urgent plant shutdowns or unplanned outages, we maintain buffer stock of high-demand Bently Nevada 3300 XL and 3500 Series components to support same-day or next-day dispatch. Contact our technical sales team to confirm real-time stock availability before raising a purchase order.
