Bently Nevada 135489-01 Original Industrial Spare 3500 Compatible: System Stability & Industrial Spare Parts Maintenance Value

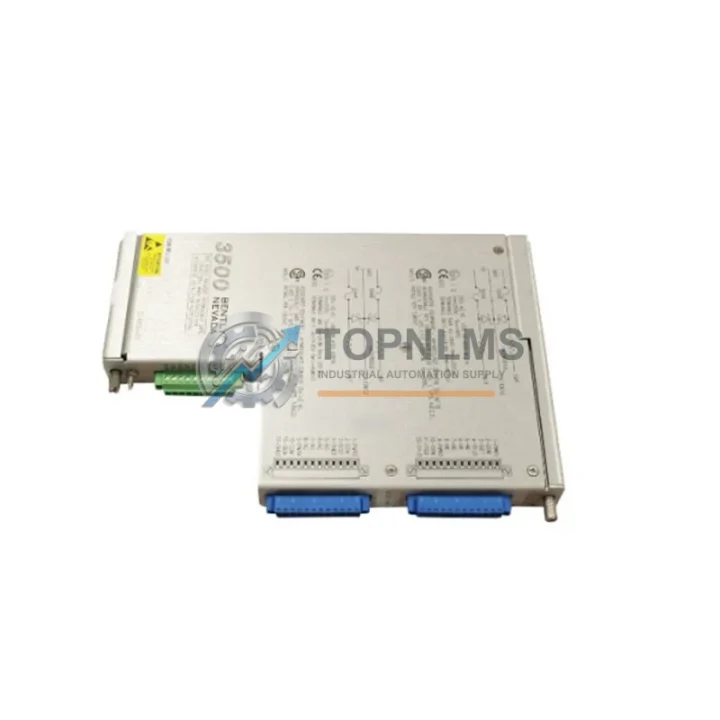

The Bently Nevada 135489-01 is an original intrinsic safety barrier module designed for the 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment environments worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a critical turbine or compressor train, the 135489-01 delivers the electrical isolation, signal conditioning, and hazardous-area compliance your facility demands without compromising system integrity or requiring reconfiguration of existing wiring infrastructure.

Industrial maintenance teams operating 3500 Series racks understand that the internal barrier module is not a peripheral accessory — it is a foundational safety component that sits between field-mounted sensors in Zone 0 or Zone 1 hazardous areas and the signal processing electronics in the safe area. A degraded or failed 135489-01 can cause spurious trips, loss of vibration monitoring channels, or — more critically — a gap in the intrinsic safety protection that regulators and insurance underwriters require. Sourcing a verified original replacement with documented test results and a 12-month warranty is therefore not a cost decision; it is a risk management decision.

Critical Technical Specs Table

Preventive Maintenance Strategy

A 3500 Series rack is an integrated system, and the reliability of the 135489-01 internal barrier is only as strong as the components surrounding it. During any scheduled outage or corrective maintenance event involving this module, experienced maintenance engineers consistently recommend a concurrent inspection of the broader monitoring chain to avoid repeat failures and unnecessary return visits.

Begin with the 3500/01 Rack Power Supply and the 3500/15 Power Supply Module. A barrier module that is operating at the edge of its voltage tolerance is frequently a symptom of a degrading rack power supply rather than a failed barrier itself. Verifying DC rail stability with a calibrated meter before condemning the 135489-01 can save significant diagnostic time. If the power supply shows ripple or voltage sag under load, plan to replace it in the same maintenance window.

Next, inspect the 3500/25 Enhanced Keyphasor Module and associated 3500/40M Proximitor/Seismic Monitor cards. These modules share the same backplane communication bus as the barrier, and a failing monitor card can generate fault codes that are incorrectly attributed to the barrier. Confirming that each monitor card passes its self-test routine before and after barrier replacement provides a clean baseline for post-maintenance sign-off documentation.

Field wiring integrity is equally important. The 3500 Series I/O Module terminal blocks and associated Bently Nevada armored extension cables (typically 330130-series or 330180-series coaxial cables for proximity probes) should be inspected for insulation breakdown, connector corrosion, and shield continuity. A compromised cable shield in a hazardous area installation can introduce noise that mimics a barrier fault and may also represent a genuine intrinsic safety violation.

For facilities running parallel monitoring on critical machinery, the 3500/22M Transient Data Interface (TDI) and 3500/60 Temperature Monitor modules are worth including in the inspection scope. Temperature excursions in the control cabinet — often caused by a failed cabinet cooling fan or a blocked air filter — accelerate the aging of all electronic modules simultaneously, meaning that a barrier failure today may be followed by a monitor card failure next quarter if the root thermal cause is not addressed.

Finally, review the status of any 3500/92 Communication Gateway Module or System 1 Evolution software interface in the rack. Firmware mismatches between a newly installed barrier and an older gateway module have been known to cause intermittent communication faults on legacy installations. Confirming firmware compatibility before the maintenance window closes prevents a post-startup troubleshooting call that could have been avoided.

Stocking a consolidated spare kit — including the 135489-01 barrier, a spare power supply module, one or two monitor cards appropriate to your machinery type, and a set of pre-terminated extension cables — is the most cost-effective way to minimize mean time to repair (MTTR) on a 3500 Series rack. A single unplanned shutdown on a critical compressor or turbine train typically costs far more than a comprehensive spare parts inventory for the entire rack.

Strategic Replacement Solutions

The 135489-01 was introduced as part of the 3500 Series platform to replace earlier Bently Nevada 3300 Series barrier configurations that required external DIN-rail-mounted Zener barriers. By integrating the intrinsic safety function directly into the rack, Bently Nevada eliminated a significant wiring complexity and reduced the number of potential failure points in the hazardous area circuit. Facilities that are still operating legacy 3300 Series racks with external barriers should consider the 3500 Series migration path, as the 135489-01 and its associated monitor cards provide substantially improved diagnostic resolution and self-test capability.

For plants where the 3500 rack itself is approaching end-of-life but a full System 1 migration is not yet budgeted, maintaining a verified stock of original 135489-01 modules is the most pragmatic strategy. Original modules — as opposed to aftermarket equivalents — preserve the intrinsic safety certification chain, satisfy insurance and regulatory audit requirements, and ensure that the module’s failure mode behavior matches the assumptions built into the original safety instrumented system (SIS) design. Substituting uncertified equivalents in a hazardous area application is a compliance risk that most HSE departments will not accept.

The 135489-01 is also directly relevant to facilities undergoing partial modernization. When a plant replaces individual monitor cards with newer 3500/40M or 3500/42M variants while retaining the existing rack and barrier infrastructure, confirming that the installed 135489-01 modules are within their service life and have not accumulated moisture ingress or thermal stress damage is a mandatory step in the upgrade validation process.

Support FAQ

Q1: What is the expected service life of the Bently Nevada 135489-01, and when should I plan for replacement?
Bently Nevada does not publish a fixed calendar-based end-of-life for the 135489-01, but industry practice for intrinsic safety barriers in continuous-duty rotating equipment monitoring applications is to inspect and functionally test barrier modules every 3–5 years as part of a scheduled SIS proof test. Modules showing increased leakage current, degraded isolation resistance, or physical signs of thermal stress (discoloration, swollen components) should be replaced immediately regardless of calendar age. Maintaining at least one spare per rack is strongly recommended.

Q2: Is the 135489-01 compatible with both standard and TMR (Triple Modular Redundant) 3500 rack configurations?
Yes. The 135489-01 internal barrier is designed for use in both standard 3500/01 racks and TMR configurations based on the 3500/05 rack. However, always verify the specific slot assignment and firmware revision requirements against your rack’s configuration documentation before installation, as TMR racks have additional voting logic that may require coordinated module replacement procedures to avoid spurious trips during maintenance.

Q3: What testing is performed on the 135489-01 before shipment, and what does the 12-month warranty cover?
Each 135489-01 unit supplied by TOPNLMS undergoes functional verification testing prior to shipment, including isolation resistance measurement, signal pass-through continuity, and visual inspection for physical damage. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. A test report is available upon request.

Q4: Can I use the 135489-01 to replace a failed barrier without taking the entire 3500 rack offline?
In most standard 3500 rack configurations, individual modules can be replaced with the rack powered, but this procedure carries risk in hazardous area installations and must be evaluated against your facility’s hot-work permit requirements and SIS bypass procedures. In TMR configurations, the redundancy architecture may allow single-module replacement without a full rack shutdown, but this must be confirmed with your site safety engineer and the applicable Bently Nevada installation documentation before proceeding. TOPNLMS recommends coordinating all barrier replacements with a planned maintenance window wherever operationally feasible.
