Bently Nevada 3500/50E Replacement for 3500 Series

Product Overview

Bently Nevada 3500/50E Replacement for 3500 Series: Smooth Migration from Legacy Speed Monitoring Systems

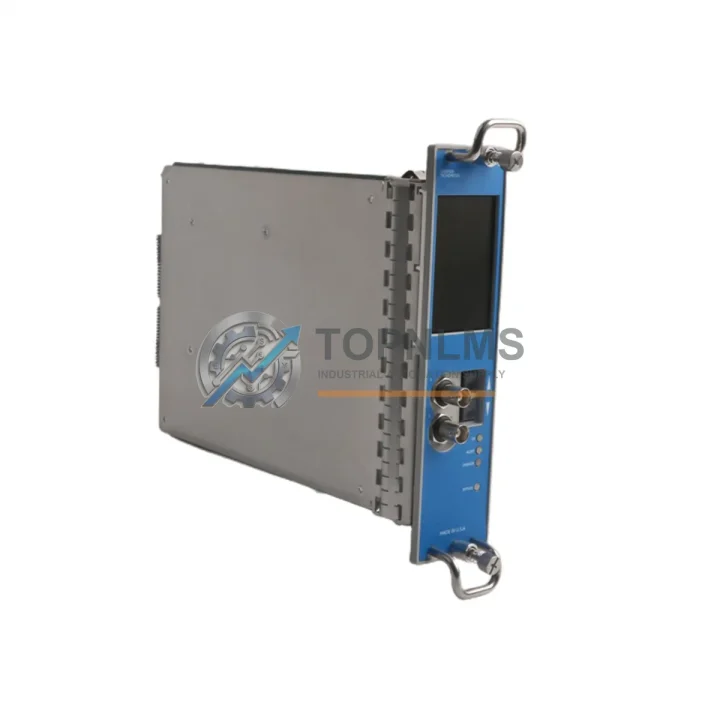

The Bently Nevada 3500/50E is a dual-channel tachometer and overspeed protection module designed for the Bently Nevada 3500 Series machinery protection platform. As plants operating aging speed monitoring hardware—including the Bently Nevada 3300 Series monitors, standalone relay-based overspeed systems, and earlier 3500/53 proximity transducer interface modules—face increasing obsolescence risk, the 3500/50E delivers a validated, drop-in upgrade path that preserves existing wiring infrastructure, rack architecture, and system logic with minimal engineering rework.

This module is purpose-built for rotating machinery applications including gas turbines, steam turbines, centrifugal compressors, pumps, and generators where continuous speed measurement and overspeed trip protection are safety-critical functions. The 3500/50E accepts inputs from standard passive magnetic pickups or active proximity probes, making it directly compatible with transducer wiring already installed on most legacy machinery trains. Engineers migrating from older relay-based overspeed systems will find that the 3500/50E integrates cleanly into the existing 3500 Series rack—including the 3500/05 Rack Interface Module (RIM) and 3500/15 Power Supply Module—without requiring rack replacement or rewiring of field junction boxes.

For facilities running Honeywell Experion, Emerson DeltaV, or ABB 800xA distributed control systems, the 3500/50E integrates seamlessly via the 3500/92 Communication Gateway, which provides Modbus RTU and TCP/IP connectivity to the plant DCS or SCADA historian without requiring custom protocol converters. This makes the 3500/50E an ideal replacement module for plants seeking to modernize their machinery protection layer while retaining their existing DCS investment and control architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 3500/50E rarely involves the speed monitor module alone. In practice, field engineers replacing a legacy overspeed system or decommissioning an older Bently Nevada 3300 Series rack will simultaneously evaluate adjacent modules to ensure the entire machinery protection chain is current and fully supportable through the next maintenance cycle.

The 3500/05 Rack Interface Module (RIM) is the communication backbone of every 3500 rack and must be confirmed compatible with the firmware version running on the 3500/50E. Where DCS integration is required, the 3500/92 Communication Gateway provides Modbus TCP/IP or OPC connectivity, eliminating the need for custom protocol converters that were common in older installations. Plants running legacy serial-based historian connections will find the 3500/92 a straightforward upgrade that unlocks Ethernet-based data access to the entire rack.

Vibration monitoring is almost always co-located with speed measurement on rotating machinery. Engineers will typically review the 3500/42M Proximitor Seismic Monitor and 3500/45 Position Monitor during the same outage window, since replacing only the speed module while leaving aging vibration cards in service creates an unbalanced maintenance posture. Similarly, the 3500/22M Transient Data Interface is frequently upgraded in parallel to ensure waveform capture capability is retained after the speed module swap.

On the transducer side, installations using older Bently Nevada 3300 XL 8mm proximity probes or 330180 series extension cables should verify probe gap voltage and sensitivity specifications against the 3500/50E input range before commissioning. In most cases, existing probes remain serviceable; however, sites with corroded connectors or out-of-tolerance gap settings will benefit from replacing probe assemblies during the same planned outage. The 3500/15E Enhanced Power Supply should also be inspected if the rack is operating near its power budget, particularly when adding dual-channel modules that draw additional current.

For plants integrating speed data into a SCADA or historian platform, the 3500/92 Modbus gateway combined with a System 1 Evolution software license provides a complete data path from the 3500/50E to the plant information network without requiring additional signal conditioning hardware or analog output wiring. This combination is the recommended architecture for new installations and for legacy systems being brought into compliance with modern cybersecurity and data integrity standards.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a 3500/53 with the 3500/50E?
A: In the majority of installations, yes. The 3500/50E uses the same I/O terminal block pinout as other 3500 Series monitor modules. Existing shielded twisted-pair cables from magnetic pickups or proximity probes connect directly to the module’s terminal block without re-termination, provided cable lengths and shield grounding practices meet Bently Nevada specifications.

Q: Do I need to modify my RCS configuration file?
A: A new module configuration must be created or imported in the Rack Configuration Software for the 3500/50E slot. However, setpoint values—including overspeed trip levels, alert thresholds, and time delays—can be transcribed directly from the legacy module’s configuration documentation, minimizing engineering time during the outage.

Q: Is the 3500/50E compatible with Modbus-based DCS integration?
A: The 3500/50E communicates natively over the 3500 rack’s TDI bus. Modbus RTU or TCP/IP integration to a DCS or SCADA system is achieved through the 3500/92 Communication Gateway module, which maps speed, overspeed status, and alarm data to standard Modbus registers accessible by any compliant host system.

Q: How much physical space does the 3500/50E require in the rack?
A: The 3500/50E occupies a single standard slot in the 3500 Series rack, identical to the modules it replaces. No rack expansion or chassis modification is required. Dual-channel operation is achieved within the single-slot form factor.

Q: What is the recommended commissioning procedure after installation?
A: After seating the module and loading the RCS configuration, perform a static channel check using a signal simulator to verify trip relay operation at the programmed overspeed setpoint. Confirm OK relay status, channel health indicators, and Modbus register mapping before returning the machine to service. Bently Nevada’s standard commissioning checklist for 3500 Series monitors applies without modification.

Q: Can the 3500/50E replace relay-based standalone overspeed systems?
A: Yes. The 3500/50E’s dual independent hardware trip relays provide equivalent or superior overspeed protection compared to legacy standalone relay systems, while adding continuous speed display, configurable alert/danger setpoints, and integration with the plant’s machinery protection network.

Q: What communication protocols does the 3500/50E support for SCADA integration?
A: Native communication is via the 3500 rack TDI bus. For external SCADA or DCS integration, Modbus RTU and Modbus TCP/IP are supported through the 3500/92 gateway. OPC-DA connectivity is available via System 1 Evolution software, providing a standards-based interface to any OPC-compliant historian or control system.

Warranty Assurance

Every Bently Nevada 3500/50E unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, channel output check, and relay operation confirmation. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our technical team is available to support installation queries, configuration questions, and compatibility verification before and after purchase. Typical response time for technical inquiries is within one business day.

We maintain stock of 3500 Series modules to support urgent replacement requirements, with express shipping available to minimize plant downtime. All units are sourced through verified supply channels and are accompanied by documentation confirming module revision and firmware version where applicable. Bulk procurement pricing and expedited shipping options are available on request.
