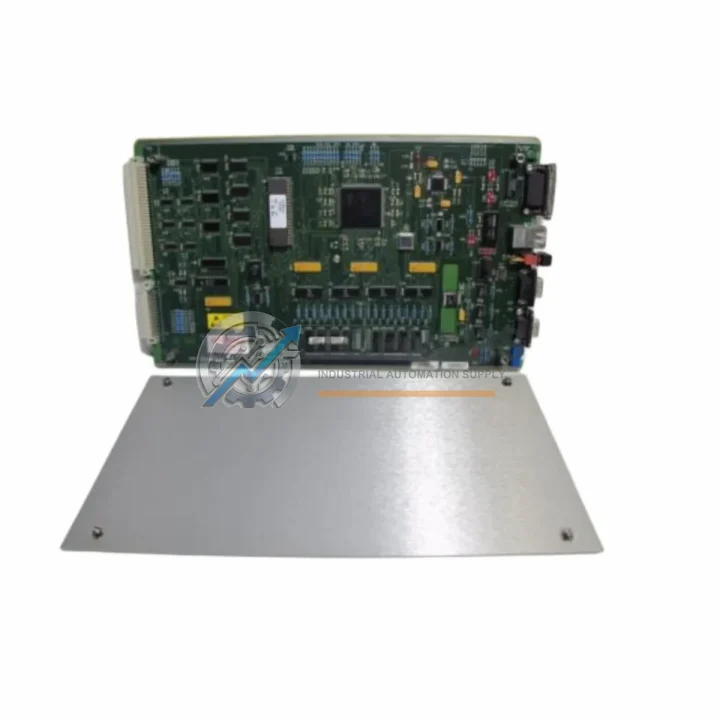

Bently Nevada 134652-01 Replacement for 3500 Series TDI: Smooth Transition & Legacy System Compatibility

The Bently Nevada 134652-01 Transient Data Interface (TDI) Module is a critical component within the 3500 Series machinery protection system platform. As aging distributed control systems and vibration monitoring networks approach end-of-life, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full backward compatibility with existing wiring, rack infrastructure, and communication architecture. This listing provides a tested, ready-to-ship replacement for the 134652-01 TDI module — engineered to support seamless migration from legacy 3500 Series configurations without requiring reprogramming, rewiring, or rack modifications.

Whether your facility is managing a planned upgrade cycle or responding to an unplanned failure of a discontinued module, the 134652-01 replacement is stocked and available for immediate dispatch from our Xiamen warehouse. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy 3500 Series configuration to a modernized machinery protection architecture typically involves more than a single module swap. In practice, plant engineers coordinating a full rack refresh will often source the 3500/20 Rack and Power Supply alongside the 134652-01 TDI, ensuring the backplane and power distribution infrastructure are renewed simultaneously. The 3500/15 Power Supply Module is the standard companion unit that feeds regulated 24 VDC to all installed cards, and its condition should be evaluated whenever a TDI replacement is planned.

For facilities running System 1 condition monitoring software, the TDI module interfaces directly with the host workstation via Ethernet or RS-232. Upgrading the 3500/22M Communication Gateway Module in parallel ensures that the data pipeline from field sensors to the SCADA or DCS layer remains uninterrupted during the transition. Sites using older serial-based architectures may also consider adding a 3500/92 Communication Module to bridge legacy Modbus RTU devices into the modernized network.

On the sensor side, the 134652-01 TDI collects transient waveform data from proximity probes and accelerometers already wired into the rack. If the field wiring harness or 3500 Series I/O Terminal Block assemblies show signs of wear, replacing them during the same maintenance window eliminates a secondary failure point. For turbine and compressor applications where shaft vibration monitoring is critical, the 3500/40M Proximitor I/O Module and 3500/42M Proximitor/Seismic Monitor are frequently upgraded alongside the TDI to bring the entire vibration monitoring chain to current firmware and hardware standards.

Facilities transitioning from older Bently Nevada 3300 Series or 7200 Series platforms to the 3500 architecture will find that the 134652-01 TDI is a key enabler of that migration, as it provides the transient capture capability absent in earlier generations. In these cross-generation upgrades, a 3500/05 System Rack Interface Module is typically required to integrate the new rack into the plant’s existing DCS or safety instrumented system (SIS) network. Signal isolators and DIN-rail mounted signal conditioners may also be needed at the I/O boundary to protect the new module from legacy field wiring that carries residual noise or ground loops from older installations.

Retrofit Guidance FAQ

Q: Can I replace the 134652-01 without rewiring the field terminals?
A: Yes. The replacement unit uses the same rear I/O terminal block pinout as the original 134652-01. Existing field cables connected to proximity probes, accelerometers, or keyphasor inputs can remain in place. No rewiring is required at the junction box or marshalling cabinet level.

Q: Will my existing System 1 configuration files work with the replacement module?
A: In most cases, yes. The replacement 134652-01 is firmware-compatible with System 1 Evolution and earlier System 1 versions. Configuration files (.cfg) created for the original module can be reloaded via the System 1 software interface without modification. If your System 1 version is older than v6.x, contact our technical team before ordering to confirm compatibility.

Q: What communication protocols does the 134652-01 support?
A: The module supports RS-232 serial communication for direct PC connection and Ethernet for network-based data acquisition. It is compatible with Modbus TCP when used in conjunction with the appropriate 3500 Series communication gateway. No protocol reconfiguration is required when replacing a like-for-like unit.

Q: How much physical space does the module require in the rack?
A: The 134652-01 occupies a single slot in the standard 3500/20 19-slot rack. No adjacent slot clearance is required. The module can be installed in any available slot position without affecting neighboring monitor cards.

Q: Can this module be used as a direct replacement for discontinued 3500 Series TDI variants?
A: Yes. The 134652-01 is the standard TDI module for the 3500 platform and serves as the direct replacement for earlier TDI revisions that have been discontinued by the OEM. Physical dimensions, connector types, and firmware interfaces are identical across revision levels.

Q: What is the lead time and how is the module tested before shipment?
A: Units are stocked in our Xiamen facility and typically ship within 1–3 business days of order confirmation. Each module undergoes a pre-shipment power-on test and functional verification against 3500 Series rack communication standards. A test report is available upon request.

Warranty Assurance

Every Bently Nevada 134652-01 Transient Data Interface Module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, component failures, and operational malfunctions arising under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Pre-Shipment Testing: All units are powered on and functionally tested in a 3500 Series rack environment prior to dispatch. Communication interfaces (RS-232 and Ethernet) are verified, and module self-diagnostics are confirmed to report no fault conditions. A test record is retained for each serial number shipped.

Replacement Support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 5 business days of claim approval. Defective units must be returned in original packaging with the original shipping documentation. Return shipping costs for confirmed warranty defects are covered by TOPNLMS.

After-Sales Response: Our technical support team is available Monday through Saturday, 09:00–18:00 CST, to assist with installation questions, compatibility verification, and warranty claims. Response time for email inquiries is typically within 4 business hours.

Procurement Assurance: TOPNLMS maintains stock of the 134652-01 and related 3500 Series components to support both planned maintenance schedules and emergency replacement requirements. Volume pricing is available for MRO procurement teams sourcing multiple units. All invoices include full part number, serial number, and warranty start date documentation for asset management records.
