Bently Nevada 125744-02 Ruggedized Proximitor Interface Module

Product Overview

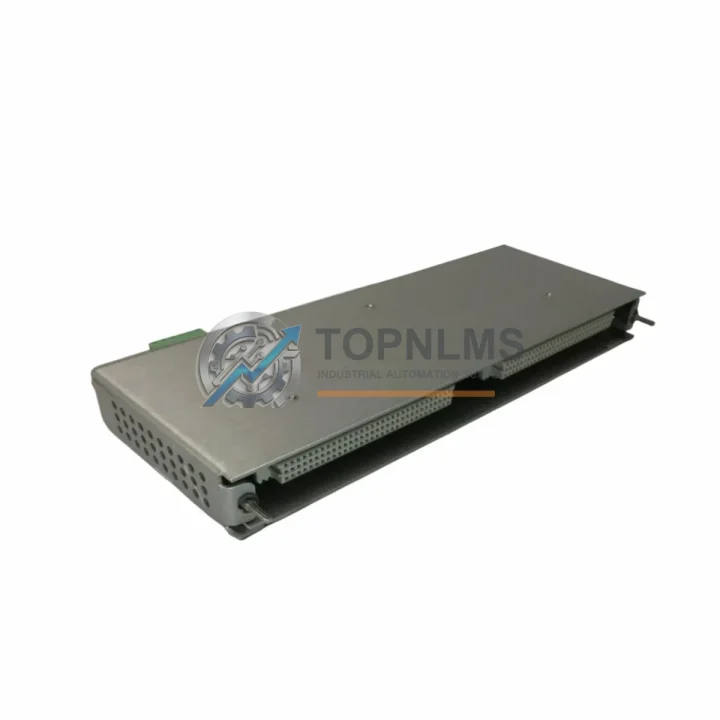

Bently Nevada 125744-02 Ruggedized Proximitor Interface Module for Harsh Industrial Environments

The Bently Nevada 125744-02 / 125760-01 Proximitor Interface Module is a mission-critical component within the 3500 Series Machinery Protection System (MPS), engineered to deliver uncompromising signal conditioning and proximity probe interfacing in the most demanding industrial environments. Designed for continuous operation in high-temperature, high-humidity, heavy-vibration, and electromagnetically noisy facilities, this module ensures that rotating machinery monitoring never falters — even when the environment does.

At TOPNLMS, we stock the 125744-02 / 125760-01 as a verified, tested spare, ready for immediate dispatch. Every unit undergoes pre-shipment functional inspection and ships with a 12-month replacement warranty, giving procurement engineers and plant maintenance teams the confidence to source critical spares without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The 125744-02 Proximitor Interface Module does not operate in isolation — it is the sensory nerve of a broader machinery protection architecture. In a typical turbine or compressor protection panel, this module works in concert with the Bently Nevada 3500/20 Power Supply Module, which delivers the stable –24 VDC rail that both the rack backplane and the Proximitor circuitry depend on. Upstream, the 3500/15 Key Phasor Module provides the once-per-revolution reference signal that allows the system to resolve shaft speed, phase angle, and vector vibration — data that the 125744-02 feeds into the monitor cards with precision.

On the monitoring side, the module interfaces directly with the Bently Nevada 3500/40M Proximitor Monitor and the 3500/42M Proximitor / Velomitor Monitor, enabling radial vibration, axial position, and differential expansion measurements across multiple measurement planes. For facilities running steam turbines or large centrifugal compressors, the 3500/44M Aeroderivative Turbine Monitor extends this capability to high-speed, high-temperature shaft dynamics.

Communication and data integration are handled through the 3500/22M Transient Data Interface (TDI), which captures high-resolution waveform data and routes it to plant DCS or historian systems via Modbus TCP or OPC-DA. In control cabinets where the 3500 rack shares space with Bently Nevada 3500/32 Relay Module units, the Proximitor Interface Module’s alarm outputs trigger protective relay actions — isolating machinery before catastrophic failure can occur.

For plants integrating vibration monitoring with broader process control, the 125744-02 is frequently deployed alongside Rockwell Automation 1756-series ControlLogix I/O modules or Emerson DeltaV SIS safety instrumented system nodes, where its analog outputs feed into safety logic solvers. Terminal block assemblies and shielded cable assemblies rated for Class I, Division 2 hazardous areas complete the installation, ensuring signal integrity from probe tip to control room.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — compressor stations, gas turbine-driven pumping units, and offshore platform machinery decks — the Bently Nevada 125744-02 is a standard fitment. Rotating equipment in these environments is subject to extreme thermal cycling, salt-laden humid air, and persistent mechanical vibration. The module’s shielded signal conditioning architecture rejects common-mode noise from variable frequency drives and high-current bus bars, delivering clean proximity probe signals even in electrically hostile switchgear rooms.

In coal-fired and combined-cycle power generation plants, the 125744-02 monitors turbine shaft eccentricity and bearing housing vibration on units that run continuously for 8,000+ hours per year. Unplanned downtime in these facilities carries costs measured in hundreds of thousands of dollars per hour; a verified spare module held in the plant’s critical spares inventory is a straightforward risk mitigation measure.

In mining and mineral processing, large ball mills, SAG mills, and slurry pumps operate under extreme load cycling and dust ingress conditions. The 3500 Series rack — with the 125744-02 at its core — is mounted in sealed, climate-controlled control cabinets to protect electronics while maintaining real-time shaft monitoring. Similarly, in water and wastewater treatment facilities, high-service pumps and blower trains rely on continuous vibration monitoring to prevent bearing failures that would disrupt municipal supply.

Metallurgical and steel mill applications present perhaps the harshest electromagnetic environment of any industrial sector. Arc furnace switching transients, overhead crane motors, and induction heating systems generate broadband EMI that can corrupt proximity probe signals. The 125744-02’s differential input architecture and internal filtering make it the preferred interface module for these installations, where signal fidelity directly determines whether a protection trip is genuine or spurious.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
Every 125744-02 / 125760-01 unit shipped by TOPNLMS carries a 12-month replacement warranty covering functional failure under normal operating conditions. If the module fails to perform its specified Proximitor interface function within the warranty period, we will replace it at no additional cost. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
All modules undergo a pre-shipment functional inspection that verifies power consumption within specification, signal conditioning output linearity, and connector integrity. Units sourced as surplus new are additionally inspected for physical condition, label legibility, and firmware revision compatibility with current 3500 Series rack configurations. A test report is available upon request for critical plant applications.

Q3: Is the 125744-02 compatible with my existing 3500 Series rack?
Yes. The 125744-02 / 125760-01 is designed for direct installation into any standard Bently Nevada 3500 Series rack. It is compatible with the 3500/20 Power Supply, all 3500/40M–3500/50M monitor cards, and the 3500/15 Key Phasor Module. If you are integrating into a legacy rack revision or a specific firmware baseline, our technical team can advise on any revision-specific considerations before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. We maintain standing inventory of the 125744-02 / 125760-01 and can support scheduled spare parts programs, annual blanket orders, and emergency same-day dispatch for critical plant shutdowns. For OEM-discontinued or allocation-constrained part numbers within the Bently Nevada 3500 Series, we proactively source and hold buffer stock to ensure continuity of supply for our industrial clients.
