Beckhoff EK1914 Original Industrial Spare EK Series Compatible

Product Overview

Beckhoff EK1914 Original Industrial Spare EK Series Compatible: System Stability & Industrial Spare Maintenance Value

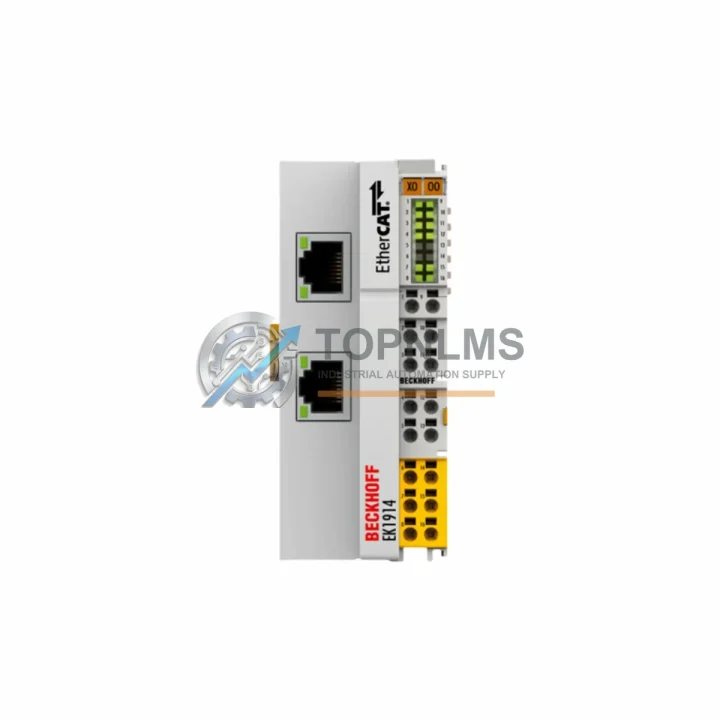

The Beckhoff EK1914 is an original EtherCAT bus coupler engineered for TwinSAFE safety I/O networks, forming a critical node in safety-rated automation architectures across manufacturing, packaging, automotive assembly, and process control environments. As a genuine EK Series component, the EK1914 bridges the EtherCAT fieldbus to TwinSAFE I/O terminals, enabling real-time, fail-safe communication between the safety controller and field devices. When this coupler fails or degrades, the entire safety I/O segment goes offline — making a verified original spare unit an essential element of any responsible maintenance strategy.

For maintenance engineers managing aging Beckhoff TwinCAT-based control systems, the EK1914 represents one of the highest-priority spare parts to stock. Its role as the gateway between the EtherCAT backbone and the safety terminal bus means that a single failed unit can halt an entire production line. Facilities operating 24/7 continuous processes — such as automotive stamping, food and beverage filling lines, or chemical dosing systems — cannot afford unplanned downtime caused by an unavailable coupler. Stocking a verified EK1914 spare reduces mean time to repair (MTTR) from days to minutes.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for any Beckhoff TwinSAFE installation should treat the EK1914 as the anchor point of the safety I/O segment inspection. During scheduled shutdowns or annual control cabinet audits, technicians should verify the EK1914’s EtherCAT link status LEDs, inspect the RJ45 connectors for corrosion or mechanical damage, and confirm that the coupler’s firmware version is compatible with the current TwinCAT 3 project. Any firmware mismatch between the EK1914 and the connected EL6910 TwinSAFE Logic Terminal can cause the safety program to refuse activation — a subtle fault that is often misdiagnosed as a PLC issue.

Beyond the coupler itself, a complete cabinet inspection should include the EL1904 4-channel digital safety input terminal and EL2904 4-channel digital safety output terminal, which are the most common TwinSAFE I/O modules paired with the EK1914. These terminals handle E-stop loops, light curtain signals, and safety relay outputs — all of which degrade over time due to contact wear and environmental exposure. Inspecting and pre-staging replacement EL1904 and EL2904 units alongside the EK1914 spare ensures that a full safety I/O segment can be restored within a single maintenance window.

The EtherCAT backbone feeding the EK1914 should also be audited. The EK1100 EtherCAT Coupler (for standard I/O segments adjacent to the safety segment) and EK1101 EtherCAT Coupler with ID switch are frequently installed in the same cabinet and share the same Ethernet infrastructure. Verifying cable integrity, checking the EL6692 EtherCAT Bridge Terminal if cross-network communication is in use, and inspecting the 24 V DC power supply rail — typically a Beckhoff PS2000-series or equivalent 24 V DIN-rail PSU — are all part of a thorough preventive maintenance pass. A failing power supply is one of the leading causes of intermittent EK1914 faults that are incorrectly attributed to the coupler itself.

For facilities running mixed safety and standard I/O in the same cabinet, it is also advisable to inspect the EL9011 bus end terminal and EL9080 potential distribution terminal at each segment end. These passive components are often overlooked but can cause ground loops or floating potentials that manifest as spurious safety faults. Including a set of EL9011 and EL9080 spares in the maintenance kit adds negligible cost while eliminating a common diagnostic dead-end. Additionally, if the installation uses EL3314 thermocouple input terminals or EL3204 PT100 input terminals for temperature monitoring in the same EtherCAT segment, these should be calibration-checked during the same maintenance window to ensure process data integrity is maintained alongside safety system integrity.

Strategic Replacement Solutions

The EK1914 remains the current-generation solution for TwinSAFE segment management and provides a direct upgrade path for facilities still operating legacy Beckhoff safety coupler designs. The migration preserves full compatibility with existing TwinSAFE I/O terminals — EL1904, EL2904, EL6900, EL6910 — without requiring rewiring or terminal replacement. Only a TwinCAT 3 Safety Editor project update and a coupler firmware flash are needed, both completable within a planned maintenance window of under two hours.

For OEMs and system integrators managing installed base across multiple customer sites, maintaining a centralized EK1914 spare pool is significantly more cost-effective than sourcing units reactively during a breakdown. Emergency procurement of safety-rated components from authorized channels typically carries lead times of 2–6 weeks; a pre-stocked EK1914 unit eliminates this risk entirely. Our EK1914 units are sourced as original Beckhoff components, individually tested for EtherCAT link integrity and TwinSAFE handshake functionality prior to shipment, and shipped with full documentation to support incoming inspection at your facility.

Replacing an EK1914 in the field requires no special tooling: the coupler snaps onto a standard 35 mm DIN rail, the EtherCAT cables reconnect via RJ45, and the TwinSAFE terminal bus self-assembles upon power-up. The TwinCAT 3 runtime will automatically detect the new coupler and re-establish the safety program connection, provided the replacement unit carries the same or compatible firmware version. This plug-and-restore capability makes the EK1914 one of the most field-serviceable safety components in the Beckhoff ecosystem — a key advantage when minimizing downtime is the primary objective.

Support FAQ

Q1: Is this EK1914 an original Beckhoff component or a compatible replacement?
This is an original Beckhoff EK1914 unit — not a third-party compatible or clone product. Each unit is sourced through verified industrial supply channels and tested for EtherCAT link integrity and TwinSAFE communication handshake before shipment.

Q2: What is the warranty coverage and what does pre-shipment testing include?
All EK1914 units carry a 12-month warranty from the date of shipment. Pre-shipment testing includes power-on verification, EtherCAT port link-up confirmation, and TwinSAFE bus initialization check. A test report is available upon request for incoming inspection purposes.

Q3: Can the EK1914 replace an older Beckhoff safety coupler without hardware changes?
Yes. The EK1914 is backward-compatible with all current TwinSAFE I/O terminals (EL1904, EL2904, EL6900, EL6910) and mounts on the same 35 mm DIN rail footprint as previous EK Series couplers. A TwinCAT 3 Safety Editor project update is required; no rewiring or terminal replacement is necessary.

Q4: How should I manage EK1914 inventory for a multi-site facility?
For facilities with 3 or more TwinSAFE segments across multiple lines or sites, we recommend maintaining a minimum of one EK1914 spare per 5 installed units, with at least one unit at each physical site. Given typical lead times for safety-rated components, a pre-stocked spare pool is the most reliable strategy for achieving sub-4-hour MTTR targets on safety I/O faults.
