BAUMULLER BUH2-90/90-34-101-00 Original Industrial Spare BUH2

Product Overview

BAUMULLER BUH2-90/90-34-101-00 Original Industrial Spare BUH2: System Stability and Industrial Spare Maintenance Value

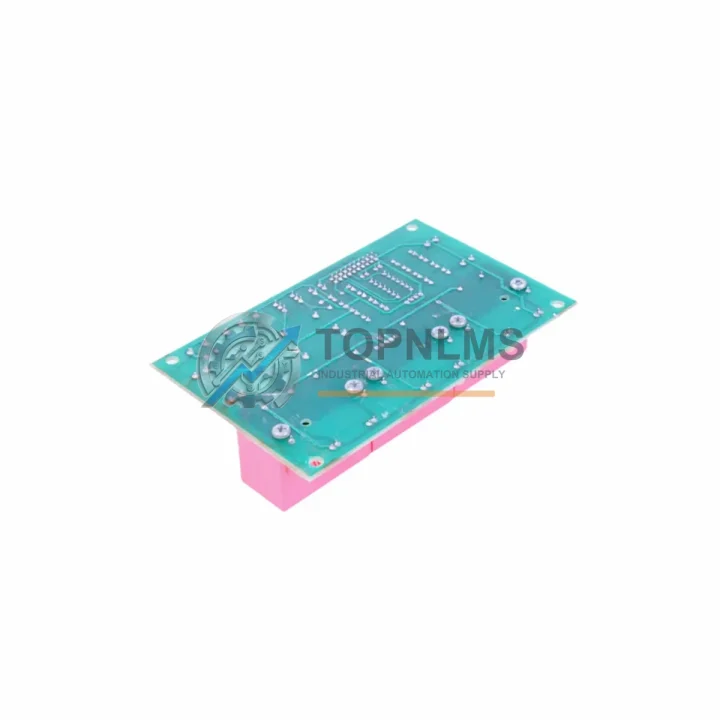

In modern industrial automation environments, the reliability of servo drive systems is a cornerstone of uninterrupted production. The BAUMULLER BUH2-90/90-34-101-00 (3.8638AA) is an original BUH2 Series drive controller module engineered for high-performance servo and spindle drive applications. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, this module delivers the electrical precision and mechanical compatibility required to restore system stability with minimal downtime.

BAUMULLER’s BUH2 Series has been widely deployed across CNC machining centers, automated assembly lines, printing machinery, and textile production equipment throughout Europe and Asia. As these systems age, sourcing original replacement modules becomes increasingly critical. A single failed drive controller can halt an entire production cell. Having a verified, tested spare on hand is not a luxury — it is a maintenance imperative.

Critical Technical Specs Table

Preventive Maintenance Strategy

A drive controller module like the BUH2-90/90-34-101-00 does not operate in isolation. It is the nerve center of a servo axis, and its health is directly tied to the condition of every component in the same electrical loop. When performing scheduled maintenance or responding to a drive fault, experienced maintenance engineers know that replacing the drive module alone is rarely sufficient — a thorough inspection of the surrounding system is essential to prevent repeat failures and extend the operational life of the entire control cabinet.

Begin with the DC bus capacitor bank and the braking resistor module. Capacitor degradation is one of the leading causes of drive controller failure in systems older than five years. If the BUH2 module has failed due to overvoltage or thermal stress, the braking resistor should be tested and replaced if its resistance has drifted beyond tolerance. At the same time, inspect the BAUMULLER power supply module (PSU) that feeds the drive bus — an unstable DC bus voltage will cause repeated nuisance trips even after a new drive module is installed.

Next, verify the integrity of the encoder feedback cable and the resolver or EnDat encoder mounted on the servo motor. A damaged or shielded-improperly feedback cable introduces noise that can cause the drive to report position errors or overcurrent faults. While the cabinet is open, check the motor power cable for insulation breakdown, particularly at the cable entry gland and at the motor terminal box — these are high-stress points in machines with frequent axis reversals.

The I/O interface module connected to the BUH2 drive should also be inspected. In many BAUMULLER installations, a dedicated digital I/O expansion module handles enable signals, fault resets, and speed reference inputs. A faulty I/O module can mimic drive controller symptoms, leading to misdiagnosis and unnecessary module replacement. Similarly, the communication module — whether PROFIBUS-DP, CANopen, or EtherCAT — should be seated firmly and its termination resistors verified.

Do not overlook the terminal block assemblies and control wiring within the cabinet. Loose terminals on the 24VDC control circuit are a common source of intermittent faults that are difficult to reproduce during static testing. A thermal imaging scan of the cabinet under load is a best practice before closing up after any drive replacement. Finally, review the fuse modules protecting the drive input — blown or weakened fuses indicate upstream overcurrent events that must be investigated before the new BUH2-90/90-34-101-00 is energized.

For facilities running multiple BAUMULLER axes, it is advisable to maintain at least one spare BUH2 Series axis module of each current rating used in the plant, alongside a spare BAUMULLER controller backplane or rack if the system uses a modular chassis architecture. This approach dramatically reduces mean time to repair (MTTR) and supports a proactive maintenance culture rather than a reactive one.

Strategic Replacement Solutions

The BUH2-90/90-34-101-00 (3.8638AA) is a direct replacement for worn or failed units within the BAUMULLER BUH2 drive family. Because it carries the original firmware version code 3.8638AA, it is compatible with existing parameter sets stored in the machine’s CNC or PLC controller — in most cases, no re-parameterization is required beyond a standard axis commissioning check. This plug-and-play compatibility is a significant advantage over third-party alternatives, which may require extensive parameter mapping and carry the risk of subtle behavioral differences that affect machining accuracy or process repeatability.

For facilities managing legacy systems where the original BUH2 series is no longer in active production by the OEM, sourcing a verified original spare from a specialist industrial parts supplier is the most cost-effective strategy. The alternative — a full drive system upgrade — typically involves mechanical modifications to the control cabinet, new motor cabling, updated HMI programming, and extended commissioning time, often costing ten to fifty times more than a direct spare replacement. The BUH2-90/90-34-101-00 preserves your existing system architecture, protects your capital investment in the machine, and allows your maintenance team to execute the replacement using existing knowledge and tooling.

Every unit supplied by TOPNLMS undergoes functional verification prior to shipment, including insulation resistance testing, bus communication checks, and where applicable, dynamic load testing. Units are shipped in anti-static packaging with full documentation. A 12-month warranty covers all supplied modules against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the BUH2-90/90-34-101-00 3.8638AA compatible with my existing BAUMULLER BUH2 system without re-parameterization?
In the majority of installations, yes. The firmware version code 3.8638AA is a factory-set identifier. If your existing system was commissioned with this version, the replacement module will accept the same parameter set. We recommend performing a standard axis commissioning verification after installation to confirm encoder offset and current loop tuning values are within specification.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure and manufacturing defects under normal industrial operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond rated limits, or physical damage. To initiate a warranty claim, contact us at [email protected] with your order number, a description of the fault, and any available fault codes from the drive or controller. We will arrange return shipping and provide a replacement or repair within an agreed timeframe.

Q3: How do I verify the module is genuine before installation?
All units supplied by TOPNLMS include the original BAUMULLER part label with the full part number and version code. We recommend cross-referencing the label against your machine’s spare parts list or the original commissioning documentation. If you require a pre-shipment inspection report or functional test certificate, please request this at the time of order.

Q4: What is the recommended inventory strategy for BUH2 Series modules in a multi-axis plant?
For plants operating three or more BAUMULLER BUH2 axes, we recommend maintaining a minimum of one spare module per current rating tier in use (e.g., one 90A unit, one 45A unit). For critical production lines where downtime cost exceeds the spare part cost within hours, a two-unit buffer per rating is justified. Spare modules should be stored in a dry, temperature-controlled environment in their original anti-static packaging and inspected annually for any signs of capacitor aging or connector corrosion.
