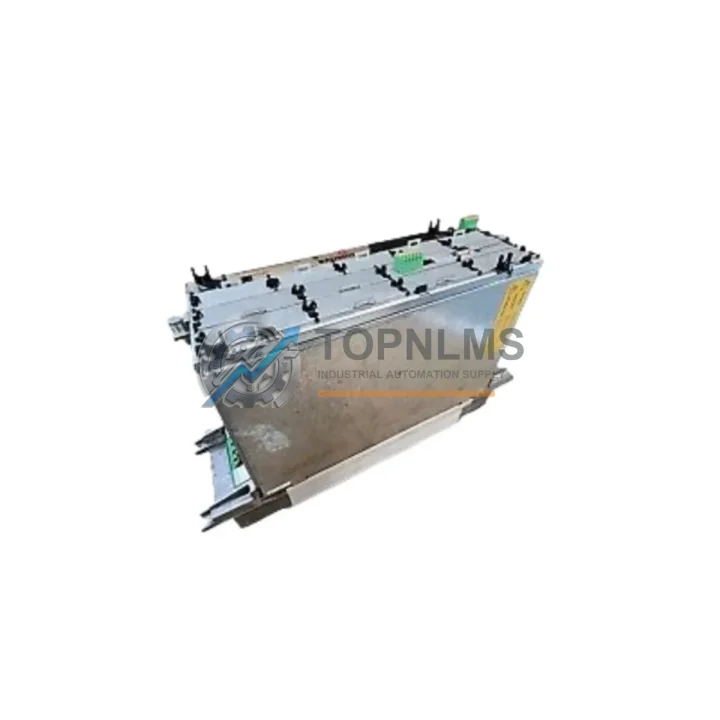

BAUMULLER BM4422-ST1-01242-0309 Original Industrial Spare BM44: System Stability and Industrial Spare Maintenance Value

The BAUMULLER BM4422-ST1-01242-0309 is a genuine original servo drive module from BAUMULLER’s BM44 Series, engineered for demanding industrial motion control environments. In modern manufacturing facilities — from automotive assembly lines to precision CNC machining centers and packaging systems — servo drive reliability is the backbone of production continuity. An unplanned servo drive failure can cascade into hours or days of costly downtime, making the availability of a verified original spare module a critical asset in any maintenance strategy.

This BM44 Series module is designed to deliver precise torque and speed regulation, seamless integration with BAUMULLER servo motors and controllers, and robust performance under continuous industrial duty cycles. Whether you are managing a planned overhaul, responding to an emergency breakdown, or building a strategic spare parts inventory, the BM4422-ST1-01242-0309 provides the exact form, fit, and function required to restore your system to full operational status without engineering workarounds or compatibility compromises.

Every unit supplied by TOPNLMS undergoes pre-shipment functional verification, is packaged in anti-static protective materials, and is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive module does not operate in isolation. The BM4422-ST1-01242-0309 sits at the heart of a coordinated motion control architecture, and its long-term reliability depends on the health of every component in the same electrical cabinet and drive chain. Experienced maintenance engineers know that when a servo drive is replaced during a scheduled shutdown, it is equally important to inspect and — where necessary — proactively replace adjacent components that share the same operational stress cycles.

During any BM44 Series drive replacement or inspection, the BAUMULLER servo motor feedback cable (resolver or EnDat cable assembly) should be checked for insulation wear, connector pin corrosion, and shield continuity. A degraded feedback cable is one of the most common root causes of recurring drive faults and encoder errors, and replacing the drive without addressing cable integrity will often result in repeat failures within weeks.

The DC bus capacitor bank within the BM44 drive rack should be evaluated for capacitance drift and ESR increase, particularly in systems that have been in service for more than five years. Capacitor aging directly affects drive stability during acceleration and deceleration transients. Similarly, the BM44 Series power supply module (24VDC logic supply) should be load-tested to confirm it can sustain rated output under full cabinet load — a marginal power supply is a frequent but overlooked contributor to intermittent drive faults.

The BAUMULLER ProMaster controller module or BM4 axis controller that commands the BM4422-ST1-01242-0309 should have its firmware version verified against the drive’s parameter set. Mismatched firmware revisions between controller and drive can cause subtle motion errors that are difficult to diagnose without version documentation. Maintaining a spare controller module in inventory alongside the drive module eliminates the risk of a controller failure extending an already disruptive downtime event.

Within the same control cabinet, I/O expansion modules connected to the BM44 system bus, PROFIBUS-DP communication modules, and signal isolation modules for analog speed and torque references should all be inspected for loose terminal connections and thermal discoloration. Loose field wiring at terminal blocks — particularly on the motor power output terminals and the STO (Safe Torque Off) safety circuit — is a leading cause of nuisance trips that are often misattributed to drive hardware failure.

For facilities operating multiple BM44 axis drives in a coordinated multi-axis gantry or winding system, maintaining a minimum stock of one spare BM4422-ST1-01242-0309 per production line, alongside a spare regenerative braking resistor module and a set of drive rack bus bar connectors, is a recognized best practice for reducing mean time to repair (MTTR) to under two hours. Facilities that have implemented this spare parts strategy consistently report a 60–80% reduction in servo-related production losses compared to those relying on emergency procurement.

Strategic Replacement Solutions

The BM4422-ST1-01242-0309 is a direct replacement for earlier BM44 Series variants that may have reached end-of-life or become difficult to source through original equipment manufacturer channels. BAUMULLER’s BM44 platform has been deployed across a wide range of industries — including printing machinery, plastics extrusion, wire drawing, and textile manufacturing — and many of these installations continue to operate well beyond their original design lifecycle.

For maintenance teams managing aging BM44 installations, sourcing a verified original spare module is significantly more cost-effective than undertaking a full drive system retrofit. A retrofit requires new motor sizing, cable replacement, controller reprogramming, and extended commissioning time — typically representing 8–15× the cost of a spare module replacement. The BM4422-ST1-01242-0309 restores full original system performance, preserves existing parameter sets and PLC program interfaces, and requires only standard commissioning procedures familiar to any BAUMULLER-trained technician.

TOPNLMS maintains stock of BM44 Series modules to support rapid dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments, with express options available. Each unit is shipped with full documentation support and pre-shipment test records upon request.

Support FAQ

Q1: Is the BM4422-ST1-01242-0309 compatible with my existing BM44 Series drive rack and BAUMULLER controller?
A: Yes. The BM4422-ST1-01242-0309 is designed for direct slot-in replacement within the BM44 Series drive rack. It is compatible with BAUMULLER ProMaster and BM4 axis controllers. We recommend confirming your controller firmware version prior to installation. If you provide your system configuration details, our technical team can confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact us at [email protected] with your order number and a description of the fault. We will arrange return logistics and provide a replacement or repair within an agreed timeframe.

Q3: How is the unit tested before shipment?
A: Every BM4422-ST1-01242-0309 unit undergoes functional verification prior to dispatch. This includes power-on testing, communication interface checks, and output stage verification. Test records are available upon request. Units are packaged in anti-static bags with foam protection to prevent transit damage.

Q4: What is the recommended spare parts inventory strategy for BM44 Series installations?
A: For production-critical applications, we recommend maintaining at least one BM4422-ST1-01242-0309 spare module per production line, supplemented by spares for the feedback cable assembly, 24VDC logic power supply module, and PROFIBUS communication module. This configuration supports a target MTTR of under two hours for the most common servo drive failure scenarios. Contact our team for a customized spare parts planning consultation based on your installed base.
