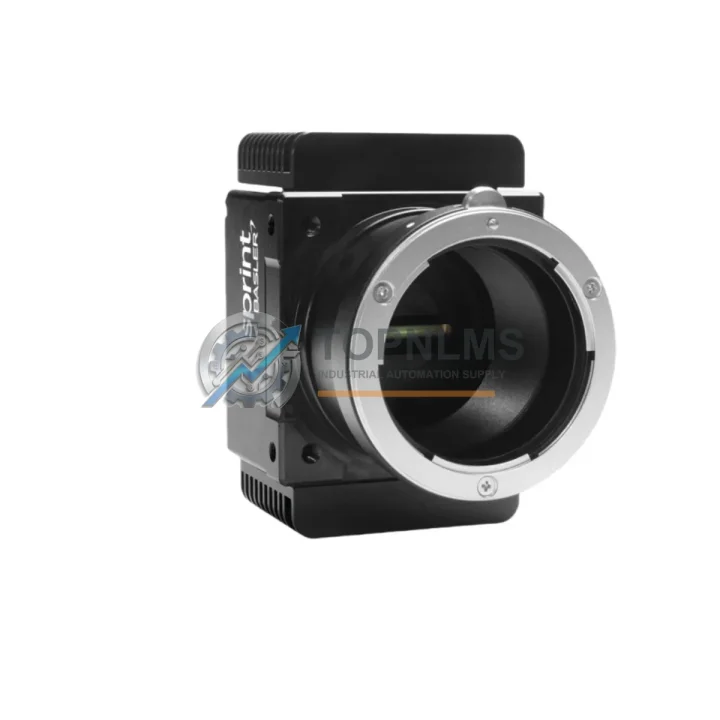

Basler SPL4096-140KM Ruggedized Line Scan Camera

Product Overview

Basler SPL4096-140KM Ruggedized Line Scan Camera for Harsh Industrial Environments

The Basler SPL4096-140KM is a high-performance monochrome line scan camera from Basler’s renowned sprint series, engineered to deliver exceptional imaging reliability in the most demanding industrial environments. With a 4096-pixel CCD sensor and a maximum line rate of 140 kHz, this camera is purpose-built for continuous, high-speed inspection tasks where image fidelity, thermal stability, and electromagnetic resilience are non-negotiable. Whether deployed on a high-throughput production line, inside a dusty packaging facility, or within a vibration-intensive metal processing plant, the SPL4096-140KM maintains consistent output without compromise.

Industrial machine vision systems are only as reliable as their weakest component. The SPL4096-140KM addresses this directly through its robust mechanical housing, precision-engineered optics interface, and Camera Link interface that ensures deterministic, low-latency data transfer even in electrically noisy environments. Its design philosophy aligns with the operational demands of 24/7 production lines where unplanned downtime translates directly into financial loss and safety risk.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, the Basler SPL4096-140KM does not operate in isolation. It functions as a critical sensing node within a broader control and safety ecosystem. On high-speed packaging lines, the camera works in concert with Siemens S7-1500 PLC modules and ET 200SP distributed I/O stations to trigger inspection cycles with microsecond-level precision, ensuring that every product unit is evaluated without slowing throughput. The Camera Link interface connects to industrial-grade frame grabbers housed within ruggedized control cabinets, where Phoenix Contact QUINT power supplies provide stable, filtered DC power that protects sensitive imaging electronics from voltage transients common in heavy manufacturing environments.

In applications involving conveyor-driven web inspection — such as steel strip, aluminum foil, or printed circuit board manufacturing — the SPL4096-140KM is typically paired with encoder input modules and Beckhoff EtherCAT I/O terminals to synchronize line rate with material travel speed. This eliminates geometric distortion in the captured image and ensures that defect coordinates are accurately mapped to physical positions on the web. For facilities operating under IEC 61508 or IEC 62061 safety standards, the camera system integrates with Pilz PNOZ safety relays and Sick safety light curtains to enforce machine guarding zones, preventing personnel exposure during high-speed inspection cycles.

Communication between the vision system and the plant-level SCADA or MES is typically handled through Profinet or EtherNet/IP communication modules, enabling real-time defect data to be logged, trended, and acted upon by upstream control systems. In environments with significant electromagnetic interference — such as induction heating stations or large variable frequency drives (VFDs) controlling conveyor motors — shielded Camera Link cables and proper grounding of the Basler sprint series camera housing are essential practices that our technical team can advise on during pre-shipment consultation.

Application in Critical Infrastructure

The Basler SPL4096-140KM has established a strong track record across critical infrastructure sectors where imaging system failure is not an option. In oil and gas pipeline manufacturing, the camera is deployed for weld seam inspection on steel pipe production lines, where it must operate reliably in environments characterized by metal dust, hydraulic oil mist, and significant mechanical vibration from rolling mills. Its stable Camera Link output ensures that frame grabbers receive clean, artifact-free image data even when the surrounding electrical environment is compromised by large motor drives.

In power generation and electrical equipment manufacturing, the SPL4096-140KM is used for surface inspection of transformer laminations, copper bus bars, and insulation films. The camera’s high line rate allows it to keep pace with fast-moving material webs without sacrificing resolution, enabling detection of micro-cracks, pinholes, and coating defects that would be invisible to lower-speed imaging systems. Water treatment and chemical processing facilities use the camera for label verification and fill-level inspection on bottling lines, where the combination of high resolution and high speed is essential for regulatory compliance.

In metallurgy and heavy industry, the camera operates in close proximity to hot rolling mills and continuous casting lines, where ambient temperatures and radiant heat require careful thermal management of the imaging enclosure. Facilities in the mining sector deploy the SPL4096-140KM for ore sorting and conveyor belt surface monitoring, where the camera’s robust housing and reliable Camera Link interface provide the uptime consistency that remote, unmanned operations demand. Across all these sectors, the availability of genuine, tested replacement units with a 12-month warranty is a critical procurement consideration — and TOPNLMS maintains ready stock to support rapid field replacement without extended lead times.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every Basler SPL4096-140KM unit shipped by TOPNLMS carries a 12-month quality warranty covering manufacturing defects, functional failures, and performance deviations from Basler’s published specifications. Prior to shipment, each unit undergoes functional verification including power-on testing, Camera Link signal integrity checks, and visual inspection of the sensor window and housing. If a warranty claim arises, TOPNLMS provides direct technical support and replacement coordination without requiring the customer to engage Basler’s regional service network, minimizing downtime for critical production lines.

Q2: How do I confirm compatibility with my existing frame grabber and software environment?
The SPL4096-140KM uses the standard Camera Link interface and is compatible with all major Camera Link frame grabbers from manufacturers including Matrox, Euresys, and National Instruments. It is fully supported by Basler’s pylon SDK, which provides drivers for Windows and Linux environments. TOPNLMS technical staff can assist with compatibility verification against your specific frame grabber model and operating system before purchase. Please contact us with your system configuration details.

Q3: Can this camera be used as a direct replacement for an existing sprint series unit in a running production line?
Yes. The SPL4096-140KM is a form-fit-function replacement for other Basler sprint series cameras sharing the same resolution and interface. The C-mount lens interface, Camera Link connector pinout, and pylon SDK compatibility ensure that replacement can be completed without modifying the existing optical setup, cabling, or software configuration. TOPNLMS recommends maintaining at least one spare unit in inventory for facilities where imaging system downtime has a direct impact on production output or regulatory compliance.

Q4: What is the typical lead time, and do you support long-term supply agreements?
In-stock units are dispatched within 1–3 business days of order confirmation. For customers requiring guaranteed supply continuity — particularly in industries with long maintenance cycles such as power generation, oil and gas, or rail — TOPNLMS offers long-term supply agreements with reserved inventory allocation. This ensures that replacement units are available on demand without exposure to global component shortages or extended manufacturer lead times. Contact our team to discuss volume pricing and supply agreement terms.
