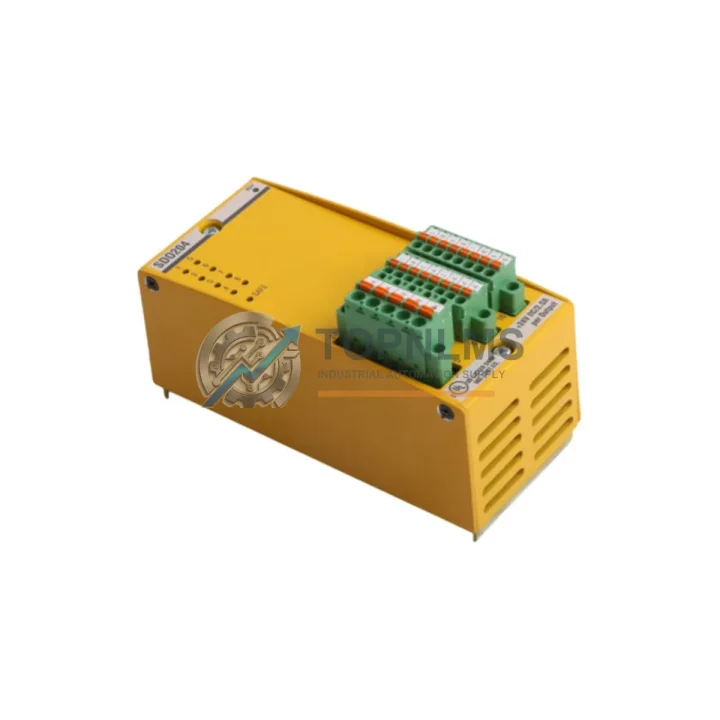

BACHMANN SDO204 SD0204 Original Industrial Spare MX Series Compatible

Product Overview

BACHMANN SDO204 SD0204 Original Industrial Spare MX Series Compatible: Ensuring System Stability in Safety-Critical Automation

The BACHMANN SDO204 (SD0204) is an original Safety Digital Output Module engineered for the BACHMANN MX Series modular control platform. Rated to IEC 61508 SIL2, this module provides four independently monitored digital output channels designed for safety-instrumented systems (SIS) in process automation, power generation, and heavy industrial environments. When a safety output module fails or approaches end-of-life, unplanned downtime can cascade across an entire control loop — making a verified, in-stock spare an essential element of any maintenance strategy.

At TOPNLMS, every SDO204 unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and backed by a 12-month quality warranty. Orders are processed and dispatched within 1–3 business days, with worldwide logistics support to minimize your plant’s exposure to extended downtime.

Critical Technical Specs

Preventive Maintenance Strategy

Safety output modules like the SDO204 operate continuously under demanding electrical loads, and their diagnostic self-test cycles accumulate wear over time. A structured preventive maintenance program for any MX Series cabinet should treat the SDO204 not in isolation, but as part of an interconnected safety loop. During scheduled shutdowns or annual inspections, maintenance teams should simultaneously evaluate the health of the BACHMANN SDI204 Safety Digital Input Module, which feeds the upstream signal chain that the SDO204 acts upon. A degraded input module can mask output faults and complicate root-cause analysis.

The BACHMANN MPC240 or MPC265 controller CPU module should also be inspected for firmware currency and battery backup integrity — a controller running outdated firmware may misinterpret SDO204 diagnostic feedback, leading to nuisance trips or, worse, missed fault conditions. Alongside the CPU, the BACHMANN PS204 or PS207 Power Supply Module is a frequent contributor to intermittent output faults; voltage ripple or under-voltage events at the rack bus can cause the SDO204 to enter a safe state unnecessarily. Keeping a spare power supply module on the shelf alongside the SDO204 is a low-cost insurance policy against extended downtime.

Field wiring integrity is equally critical. The BACHMANN terminal block assemblies and field wiring connectors for MX Series modules should be inspected for oxidation, loose crimps, and insulation degradation during every planned outage. Corroded terminals are a leading cause of intermittent output faults that are often misattributed to the module itself. Similarly, the BACHMANN AIO288 Analog I/O Module or DIO216 Digital I/O Module installed in adjacent rack slots should be checked for cross-talk or grounding issues that can affect safety channel isolation.

For plants running BACHMANN MX Series in a redundant or hot-standby configuration, the BACHMANN CNT204 Communication Module or ETH202 Ethernet Module governs inter-controller synchronization. A communication module fault can prevent the standby controller from assuming control during an SDO204 replacement, so verifying communication module health before performing a hot-swap is essential. Finally, the BACHMANN MX Series rack backplane itself should be visually inspected for bent connector pins or contamination — a damaged backplane slot will cause recurring module faults regardless of how many replacement SDO204 units are installed.

Maintaining a minimum stock of one SDO204 spare per safety-critical cabinet, combined with spares for the SDI204, PS204, and at least one communication module, represents best practice for facilities targeting less than four hours of mean time to repair (MTTR) on safety system faults.

Strategic Replacement Solutions

The BACHMANN SDO204 has been in service across wind energy SCADA systems, hydropower control platforms, and process automation installations for over a decade. As original equipment manufacturers phase out legacy support contracts, sourcing verified original spare modules becomes the most reliable path to maintaining SIL2 certification without costly system redesigns.

Replacing the SDO204 with a non-original or uncertified substitute risks invalidating the safety function’s SIL rating, triggering mandatory re-validation under IEC 61511 or IEC 62061 — a process that can take weeks and cost significantly more than the module itself. By stocking original BACHMANN SDO204 units, maintenance teams can execute like-for-like replacements that preserve the existing safety case documentation, minimize re-commissioning effort, and keep the plant operating within its certified safety envelope.

For aging MX Series installations where the full rack is approaching end-of-life, a phased replacement strategy — replacing safety I/O modules first while retaining the controller and communication infrastructure — extends system life by three to five years at a fraction of the cost of a full platform migration. The SDO204’s hot-swap capability means replacements can often be performed during brief process interruptions rather than full planned shutdowns, further reducing production impact.

Support FAQ

Q1: Is the SDO204 supplied by TOPNLMS an original BACHMANN module or a compatible substitute?
All SDO204 units supplied by TOPNLMS are original BACHMANN-manufactured modules sourced through verified industrial supply channels. No third-party reproductions or compatible substitutes are offered. Each unit retains its original part markings, firmware, and certification labels.

Q2: What pre-shipment testing is performed on the SDO204?
Each module undergoes visual inspection, connector integrity verification, and functional power-on testing prior to dispatch. Units that do not pass inspection are quarantined and not shipped. A test report summary is available upon request for critical procurement orders.

Q3: How do I verify compatibility with my existing BACHMANN MX Series rack before ordering?
The SDO204 is compatible with all standard BACHMANN MX Series rack configurations supporting the MX backplane bus. Confirm your rack model (e.g., MX200, MX220) and controller type (MPC240, MPC265, MPC270) against the BACHMANN MX Series hardware manual. If you require compatibility confirmation before purchase, contact our technical team at [email protected] with your rack configuration details.

Q4: What does the 12-month warranty cover, and what is the RMA process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic logs. Replacement or repair will be arranged within 5 business days of fault confirmation.
