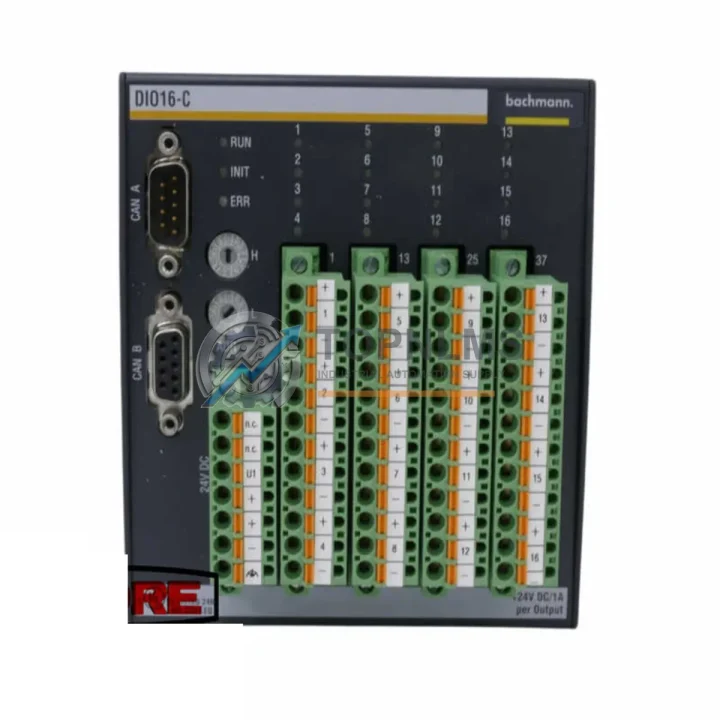

BACHMANN DIO16-C Original Industrial Spare MX Series Compatible

Product Overview

BACHMANN DIO16-C Original Industrial Spare MX Series Compatible: System Stability Through Verified Replacement

In industrial automation environments, the reliability of every I/O module directly determines the uptime of the entire control system. The BACHMANN DIO16-C is a 16-channel digital I/O module engineered for the BACHMANN MX Series modular controller platform — a system widely deployed in power generation, renewable energy, mechanical engineering, and process automation facilities worldwide. When a DIO16-C fails or reaches end-of-service, the consequences extend beyond a single channel: the entire rack’s signal integrity, PLC scan cycle, and field device communication can be compromised. Sourcing a verified original spare is not optional — it is a maintenance imperative.

At TOPNLMS, every BACHMANN DIO16-C unit is sourced from authorized supply chains, individually inspected, and shipped with a 12-month quality warranty. Whether you are executing a planned preventive maintenance cycle, responding to an unscheduled shutdown, or building a strategic spare parts inventory for a long-running MX Series installation, this module is ready for immediate dispatch.

Critical Technical Specs

Preventive Maintenance Strategy

A DIO16-C replacement event is rarely isolated. In a BACHMANN MX Series control cabinet, the digital I/O module operates as part of a tightly integrated signal chain — and experienced maintenance engineers know that when one module shows signs of degradation, adjacent components deserve equal scrutiny.

During a scheduled inspection or emergency shutdown involving the DIO16-C, it is sound practice to simultaneously evaluate the BACHMANN AIO288-C analog I/O module, which often shares the same rack and handles process variable acquisition. If the cabinet includes communication-intensive applications, the BACHMANN CAN-2 or PROFIBUS DP fieldbus communication module should be checked for connector wear and firmware currency — fieldbus faults frequently masquerade as I/O errors.

The BACHMANN MX200 or MX213 power supply module feeding the rack is another critical inspection point: an aging or under-spec power supply can cause intermittent I/O faults that are misdiagnosed as module failure. Verifying output voltage stability under load takes minutes and can prevent unnecessary module replacements. Similarly, the BACHMANN MC200 or MC210 CPU controller module should have its firmware version confirmed to ensure full compatibility with a replacement DIO16-C.

At the field wiring level, inspect the terminal blocks and wiring harnesses connected to the DIO16-C’s I/O terminals. Corroded terminals, loose ferrules, or undersized conductors are common root causes of digital signal errors that are incorrectly attributed to the module itself. If the installation uses signal isolators or relay output modules between the DIO16-C and field actuators, these should be tested for contact resistance and isolation integrity during the same maintenance window.

For facilities running extended MX Series installations, maintaining a minimum buffer stock of one spare DIO16-C, one spare AIO288-C, and one spare power supply module per control cabinet is a widely adopted best practice in the power and mechanical engineering sectors. This three-module buffer covers the highest-probability failure points and enables same-shift restoration without waiting for international logistics.

If the plant operates multiple BACHMANN MX Series cabinets, a consolidated spare parts audit — covering all installed DIO16-C, DIO216-C, AIO288-C, and communication module variants — should be conducted annually to align inventory levels with actual system age and criticality.

Strategic Replacement Solutions

The BACHMANN DIO16-C has been in active deployment for over a decade across wind turbine controllers, hydraulic press automation, and industrial test bench systems. As original equipment ages and OEM support windows narrow, the ability to source a verified original spare — rather than an unvalidated substitute — becomes a strategic differentiator for maintenance teams.

A genuine DIO16-C replacement preserves the original rack configuration without requiring software re-parameterization, backplane address reassignment, or I/O mapping changes in the BACHMANN SolutionCenter engineering environment. This means a trained technician can execute a hot-swap replacement, restore the module, and return the system to production within a single maintenance window — minimizing mean time to repair (MTTR) and protecting production schedules.

For facilities transitioning away from legacy BACHMANN MX Series hardware, the DIO16-C also serves as a bridge component: maintaining the existing control architecture while a phased migration to newer platforms is planned and budgeted. This approach avoids the capital expenditure and engineering risk of a full system cutover while keeping the existing installation fully operational and compliant.

TOPNLMS maintains stock of BACHMANN MX Series modules across multiple SKUs to support multi-unit procurement. Volume orders, project-based quotations, and consignment stocking arrangements are available for OEM integrators, EPC contractors, and facility maintenance departments managing large installed bases.

Support FAQ

Q1: Is this DIO16-C a new original part or a refurbished unit?
All BACHMANN DIO16-C units supplied by TOPNLMS are original spare parts sourced from authorized distribution channels. Each unit undergoes pre-shipment functional testing. Refurbished or remanufactured units are clearly identified as such and are never substituted without explicit customer agreement.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions consistent with BACHMANN’s published specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the rated operating range. Warranty claims are processed with priority dispatch of a replacement unit.

Q3: How do I verify compatibility with my existing MX Series rack before installation?
Confirm your rack model (MX200, MX213, or equivalent), the installed CPU firmware version via BACHMANN SolutionCenter, and the slot address assigned to the existing DIO16-C. The replacement module is a direct form-fit-function substitute and does not require firmware flashing prior to installation. If you require compatibility verification support, contact our technical team at [email protected] before ordering.

Q4: What is the recommended spare parts stocking strategy for a multi-cabinet MX Series installation?
For installations with three or more MX Series cabinets, we recommend maintaining at least one DIO16-C spare per four installed units, with a minimum of one unit on-hand regardless of installation size. For critical production lines where downtime cost exceeds USD 5,000/hour, a one-to-one spare ratio for all high-cycle I/O modules is advisable. TOPNLMS can assist with a site-specific spare parts matrix upon request.
