Bachmann SDI208 Replacement/Upgrade Solution for MX Series

Product Overview

Bachmann SDI208 Replacement/Upgrade Solution for MX Series: Smooth Transition & Legacy System Compatibility

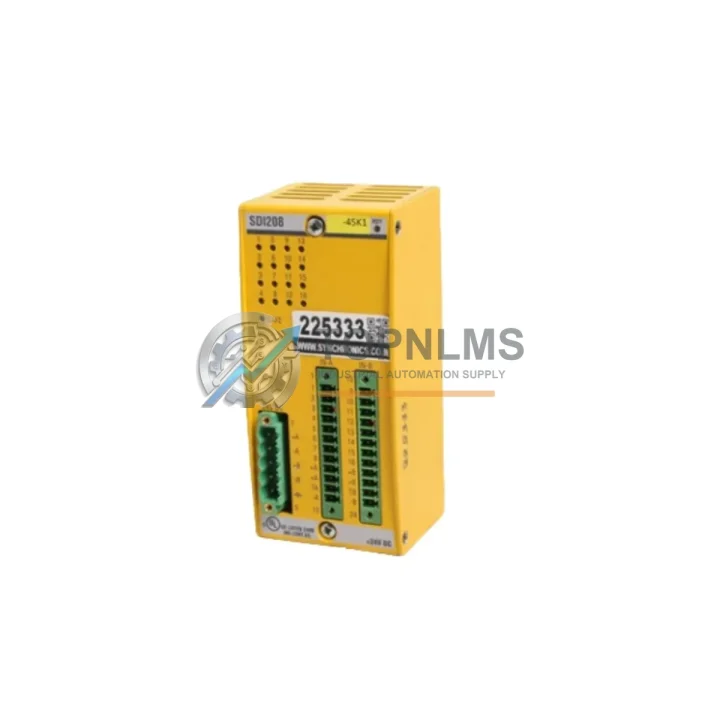

The Bachmann SDI208 is an 8-channel SIL3-rated Safety Digital Input Module designed for the Bachmann MX Series modular control platform. As industrial facilities transition away from aging safety PLCs, discontinued I/O architectures, and end-of-life DCS configurations, the SDI208 serves as a direct replacement and functional upgrade path for legacy safety input modules that no longer meet current IEC 61508 or IEC 62061 compliance requirements. Whether you are retiring an older Bachmann M1 Series safety rack or migrating from a third-party safety controller, the SDI208 integrates into your existing MX Series backplane without requiring structural changes to your control cabinet.

For facilities running legacy Bachmann SDI104 or SDI106 4-channel and 6-channel safety input modules, the SDI208 provides a channel-density upgrade within the same MX Series rack footprint. The module occupies a standard MX Series slot and connects directly to the MX200 or MX220 controller backplane, preserving existing rack wiring harnesses and terminal block assignments. Engineers migrating from older Bachmann DIO216 combined digital I/O modules to dedicated safety-rated inputs will find the SDI208’s isolated channel architecture eliminates cross-channel interference that was common in earlier mixed-function modules.

Wiring compatibility is a primary concern during any safety system retrofit. The SDI208 accepts 24 VDC digital input signals across all 8 channels, with each channel independently monitored for open-circuit, short-circuit, and cross-fault conditions. Existing field wiring from emergency stop circuits, light curtains, safety gate switches, and two-hand control devices can be reconnected to the SDI208 terminal blocks without modification, provided the original wiring was rated for 24 VDC discrete input service. For installations previously using Bachmann SDO208 safety digital output modules in adjacent rack slots, the SDI208 maintains the same physical form factor and connector pinout convention, simplifying mixed-module rack layouts.

Communication and system architecture compatibility is maintained through the MX Series internal backplane bus. The SDI208 communicates with the MX200 or MX220 safety CPU via the high-speed MX backplane protocol, eliminating the need for additional fieldbus wiring or protocol converters. Facilities that have integrated their Bachmann MX system with PROFIBUS DP, PROFINET, or EtherCAT networks through a Bachmann MX communication gateway module will find that the SDI208 safety input data is transparently available on the network without additional configuration. For sites using Bachmann SolutionCenter or the older Bachmann M-Target for Simulink toolchain, the SDI208 is recognized automatically upon rack scan, and existing safety function blocks referencing the predecessor module can be remapped to the SDI208 channel addresses with minimal program modification.

Physical installation space is a frequent constraint in brownfield control cabinet upgrades. The SDI208 fits the standard MX Series module slot width of 25.4 mm, identical to other MX Series I/O modules including the SDO208 safety digital output module, the AI208 analog input module, and the MX-PS24 power supply module. Facilities replacing multiple legacy modules in a single cabinet can consolidate safety input capacity by substituting two older 4-channel modules with a single SDI208, freeing rack slots for additional communication modules or redundant power supply units. The module’s front-face LED diagnostics for each channel allow field technicians to verify input status during commissioning without connecting a programming terminal.

For sites decommissioning older safety relay panels and migrating to software-based safety logic on the Bachmann MX platform, the SDI208 provides the certified SIL3 input layer required to interface physical field devices with the MX200 safety CPU. This migration path is commonly paired with the Bachmann SDO208 for output control, the MX-NET Ethernet module for remote diagnostics, and the Bachmann MX Series programming cable for initial configuration and safety function validation. Facilities that previously relied on standalone safety relay modules from third-party suppliers can consolidate their safety architecture onto the MX platform, reducing the number of discrete components in the control cabinet and simplifying periodic proof-test documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SDI208 migration typically involves coordinating several MX Series components. The Bachmann SDO208 8-channel SIL3 Safety Digital Output Module is the natural output-side counterpart, handling actuator control for safety-rated outputs such as contactors, solenoid valves, and motor starters. For analog process signals that accompany safety digital inputs in mixed-signal control cabinets, the Bachmann AI208 Analog Input Module provides 8-channel 4–20 mA or 0–10 V acquisition within the same rack. Power distribution within the MX rack is managed by the MX-PS24 24 VDC Power Supply Module, which should be verified for adequate current capacity when adding higher-density modules like the SDI208.

Communication infrastructure upgrades often accompany safety module replacements. The Bachmann MX-NET Ethernet Module enables remote diagnostics and OPC UA data access, while the Bachmann PROFIBUS DP Master Module supports legacy field device networks that have not yet migrated to Ethernet-based protocols. For initial programming, safety function validation, and firmware updates, the Bachmann MX Series USB Programming Cable is required to establish a direct connection between the MX200 or MX220 CPU and an engineering workstation running Bachmann SolutionCenter. Sites integrating the SDI208 into a larger safety architecture may also require DIN-rail mounted signal isolators to condition field signals from sensors located in electrically noisy environments before they reach the module’s input terminals.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an SDI104 with the SDI208?
A: Yes, provided the existing wiring is 24 VDC rated and the terminal block pitch matches the SDI208 connector. In most MX Series installations, the field wiring can be transferred directly to the SDI208 terminal block without re-pulling cables.

Q: Do I need to modify my safety program after replacing the module?
A: The SDI208 is recognized automatically by Bachmann SolutionCenter. You will need to remap channel addresses if replacing a 4- or 6-channel predecessor module, and re-validate safety functions per your site’s functional safety management plan.

Q: Is the SDI208 compatible with PROFINET and EtherCAT networks?
A: Yes, via the MX Series communication gateway modules. The SDI208 safety input data is exposed on the network through the gateway without additional wiring to the module itself.

Q: How much cabinet space does the SDI208 require?
A: The SDI208 occupies one standard 25.4 mm MX Series slot. Replacing two 4-channel legacy modules with one SDI208 frees one additional slot in the rack.

Q: What is the commissioning procedure for the SDI208 in a brownfield installation?
A: Insert the module into the MX rack, connect field wiring, perform a rack scan in Bachmann SolutionCenter, remap I/O addresses, download the updated safety program, and conduct a full proof test of all connected safety functions before returning the system to service.

Warranty Assurance

Every Bachmann SDI208 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including backplane communication check, per-channel input signal test, and fault detection validation. In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit and provide return shipping coordination. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. We maintain stock of MX Series modules to support urgent replacement requirements, with same-day dispatch available for in-stock items. All units are shipped with appropriate ESD protective packaging and documentation.

For volume procurement, long-term supply agreements, or expedited sourcing of discontinued Bachmann MX Series components, contact our industrial automation parts team directly.
