BACHMANN DO232 Replacement/Upgrade Solution for MPC Series: Seamless Transition from Legacy Digital Output Systems

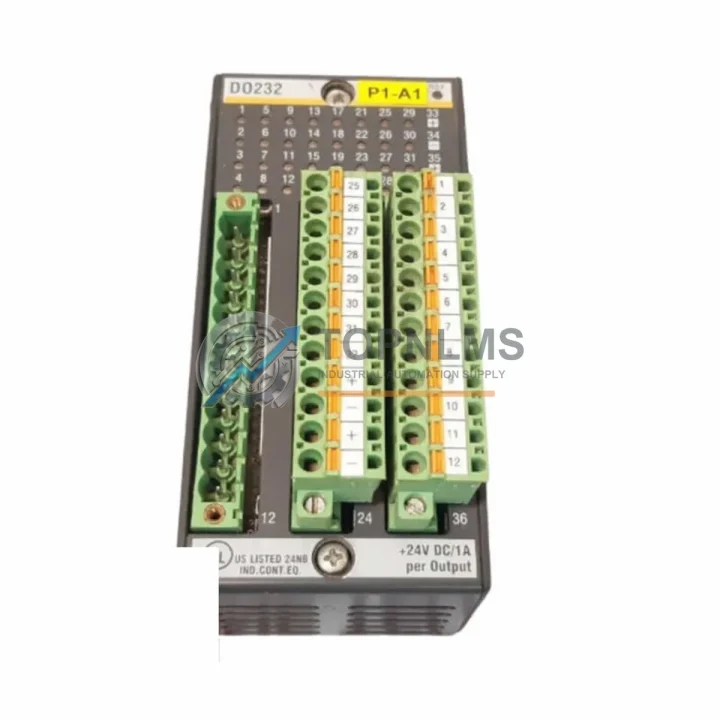

The BACHMANN DO232 is a 32-channel digital output module designed for the BACHMANN MPC Series modular PLC platform. For facilities running aging MPC-based control architectures — whether in wind turbine control, industrial automation, or process management — the DO232 represents the most direct, lowest-risk path to restoring or modernizing your digital output layer without redesigning the entire control cabinet.

Whether you are replacing a failed unit, upgrading from an earlier-generation output module, or consolidating spare parts inventory ahead of a planned maintenance window, the DO232 slots directly into the existing MPC rack without requiring changes to your control program, field wiring, or cabinet layout. This guide covers everything your engineering and procurement teams need to evaluate, source, and commission a DO232 replacement with confidence.

Compatibility Comparison Table

Seamless Upgrade Solutions

A DO232 replacement rarely happens in isolation. In most MPC-based control systems, the digital output module works in close coordination with several other components that may also require attention during a retrofit or modernization project.

On the input side, the BACHMANN DI232 32-channel digital input module is the natural counterpart to the DO232, sharing the same rack slot format and backplane communication protocol. If your system is experiencing intermittent I/O faults, it is worth inspecting both the DI232 and DO232 simultaneously, as degraded backplane connectors can affect both modules equally.

For mixed analog and digital control loops, the BACHMANN AO202 analog output module and BACHMANN AI202 analog input module are commonly installed in the same MPC rack. When upgrading the DO232, engineers often take the opportunity to verify firmware compatibility across all installed I/O modules using the BACHMANN SolutionCenter engineering software, ensuring the entire rack operates on a consistent firmware baseline.

The MPC controller itself — typically a BACHMANN MC206 or MC210 CPU module — communicates with the DO232 via the internal backplane bus. No changes to the CPU module are required for a direct DO232 swap, but if the CPU is also approaching end-of-life, a coordinated upgrade of both the CPU and I/O modules during the same maintenance window minimizes total downtime and reduces the number of future service interventions.

Power distribution within the MPC cabinet is handled by a dedicated BACHMANN PS201 power supply module. Before installing a replacement DO232, verify that the rack power supply is delivering stable 24 VDC within specification, as an undersized or aging power supply can cause intermittent output faults that are incorrectly attributed to the output module itself.

For systems that rely on fieldbus communication — particularly those integrating the MPC platform with PROFIBUS DP, CANopen, or EtherCAT networks — the BACHMANN FM211 or equivalent fieldbus master module manages protocol translation between the MPC backplane and the field network. The DO232 operates transparently behind this communication layer, so fieldbus configuration does not need to be modified during a DO232 replacement.

In wind turbine and renewable energy applications, the DO232 is frequently paired with BACHMANN SEM201 safety extension modules and dedicated safety relay assemblies. If your application involves safety-rated outputs, confirm with your system integrator whether the DO232 channels in question are mapped to standard or safety-rated I/O paths before proceeding with replacement.

Finally, for commissioning and diagnostics, a BACHMANN programming cable or USB-to-MPC interface adapter is required to connect a laptop running SolutionCenter to the MPC CPU for online monitoring, force-testing of output channels, and firmware verification after module swap. Having this cable on-site before the maintenance window begins eliminates a common source of commissioning delays.

Retrofit Guidance FAQ

Q: Do I need to modify my existing field wiring when replacing the DO232?
No. The DO232 uses the same terminal block pitch and pin assignment as its predecessors in the MPC I/O family. Your existing field cables connect directly to the replacement module without modification. Label verification against your as-built drawings is recommended as a standard commissioning step.

Q: Will my existing PLC program need to be recompiled or reloaded after swapping the DO232?
For a direct same-model replacement, no program changes are required. The MPC CPU recognizes the DO232 by its module type identifier on the backplane. If you are upgrading from a different-channel-count module, I/O address mapping in SolutionCenter will need to be reviewed and updated accordingly.

Q: Is the DO232 compatible with both PROFIBUS and EtherCAT-based MPC configurations?
Yes. The DO232 communicates via the internal MPC backplane bus and is independent of the fieldbus protocol used by the system’s communication modules. Whether your MPC rack uses PROFIBUS DP, CANopen, or EtherCAT for external network communication, the DO232 replacement procedure remains identical.

Q: How much physical space does the DO232 require in the control cabinet?
The DO232 occupies a single standard MPC rack slot. No additional DIN rail space or cabinet modification is required. The module’s form factor is identical to other MPC I/O modules, making it a true drop-in replacement from a mechanical standpoint.

Q: What is the recommended procedure for testing output channels after installation?
Connect a laptop running BACHMANN SolutionCenter to the MPC CPU via the programming interface. Use the online force function to individually activate each of the 32 output channels and verify field device response. This procedure typically takes 20–40 minutes for a full 32-channel verification and should be performed before returning the system to automatic operation.

Q: Can the DO232 be used as a spare part for multiple MPC racks of different vintages?
Yes, provided all racks are running MPC Series hardware. The DO232 is compatible across MPC rack generations that share the same backplane bus standard. Confirm firmware version compatibility via SolutionCenter before deploying a spare into a rack running a significantly older firmware baseline.

Warranty Assurance

Every BACHMANN DO232 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, output channel continuity check, and backplane connector inspection. Units that do not pass pre-shipment testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Contact our technical team with your order reference and a description of the fault. Replacement units are dispatched within 2 business days of claim confirmation for stocked items. Our after-sales response target is 24 hours for initial technical assessment.

For procurement teams managing planned maintenance schedules, TOPNLMS maintains buffer stock of high-demand MPC Series modules including the DO232, enabling same-week shipment for urgent replacement orders. Export documentation, commercial invoices, and packing lists are provided with every international shipment to support customs clearance.

We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide available as carrier options. Typical transit times are 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia and the Middle East.
