BACHMANN DIO216 Ruggedized Digital I/O Module for Harsh Environments

Product Overview

BACHMANN DIO216 Ruggedized Digital I/O Module: Industrial Resilience for Harsh Environments

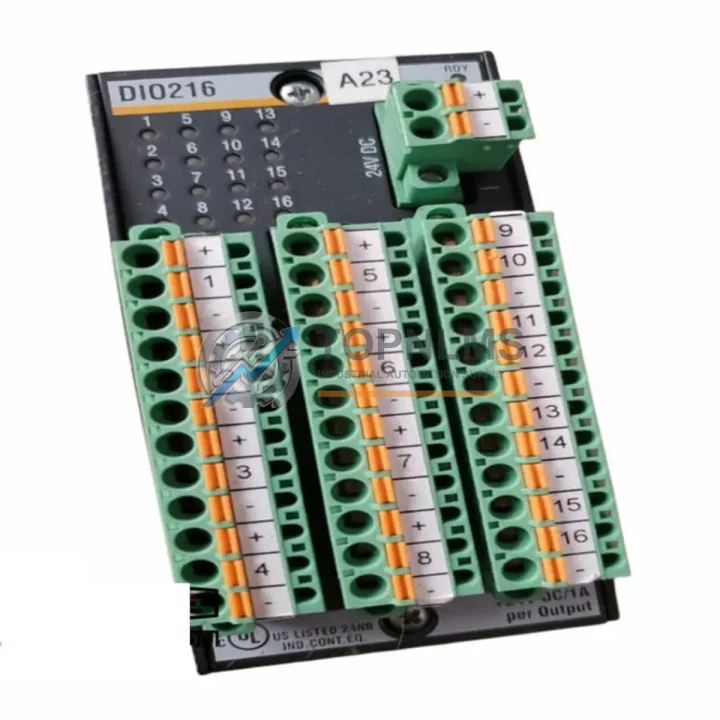

The BACHMANN DIO216 is a 16-channel, 24 VDC digital input/output module engineered for the BACHMANN M1 Series automation platform. Designed to operate reliably in the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, continuous mechanical vibration, and intense electromagnetic interference — the DIO216 delivers the signal integrity and uptime that critical production environments demand. Whether deployed in a compact control cabinet on a continuous process line or integrated into a distributed I/O rack in a hazardous-area enclosure, this module maintains deterministic scan-cycle performance without compromise.

Industrial facilities cannot afford unplanned downtime. The DIO216’s robust hardware design, conformally coated PCB, and wide operating temperature range make it a preferred choice for engineers specifying replacement or expansion I/O in oil and gas wellhead panels, mineral processing plants, power generation substations, water treatment SCADA systems, and heavy metallurgical lines. Its direct compatibility with the BACHMANN M1 CPU modules — including the MPC240 and MPC265 processor cards — means integration is straightforward, with no additional signal conditioning required.

Rugged Specifications Table

Comprehensive Protection Solutions

The DIO216 does not operate in isolation — it is a critical node within a broader BACHMANN M1 control architecture. In a typical wind turbine nacelle or industrial press control cabinet, the DIO216 works alongside the BACHMANN MPC240 CPU module to execute IEC 61131-3 ladder and structured-text programs at deterministic cycle times. Analog process values from field transmitters are conditioned by the BACHMANN AIO288 analog I/O module, while high-speed counter inputs from encoder feedback are handled by the BACHMANN CNT204 counter module. Communication with supervisory SCADA systems is routed through the BACHMANN ETH201 Ethernet communication module, supporting Modbus TCP and IEC 61850 protocols commonly required in power and utilities applications.

For installations where functional safety is mandated — such as emergency shutdown systems (ESD) or safety instrumented systems (SIS) — the DIO216 is often paired with dedicated safety relay modules and hardwired interlock circuits that provide a redundant layer of protection independent of the PLC scan cycle. In high-vibration environments such as compressor skids or offshore platforms, DIN-rail mounted terminal blocks and vibration-dampening backplane mounting hardware are recommended to complement the DIO216’s onboard vibration tolerance. Industrial power supply units delivering stable, filtered 24 VDC — such as those from the BACHMANN PS series — ensure that input voltage ripple does not degrade digital signal thresholds, preserving the accuracy of every I/O point across all 16 channels.

Where fieldbus connectivity is required, the DIO216 integrates seamlessly within M1 racks that include BACHMANN PROFIBUS DP master/slave modules or CANopen interface cards, enabling the digital I/O data to be transparently mapped to distributed control networks. This flexibility makes the DIO216 equally suitable for new greenfield installations and for brownfield retrofits where legacy fieldbus infrastructure must be preserved.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the DIO216 monitors valve position feedback, pump run/stop status, and emergency shutdown relay outputs in wellhead control panels and pipeline compressor stations. Its wide temperature tolerance and EMC robustness allow it to function reliably in outdoor equipment shelters where temperature swings and radio-frequency interference from nearby communications equipment are constant concerns.

In mining and mineral processing, the module controls conveyor belt interlocks, crusher motor starters, and dust suppression solenoids — applications where vibration from heavy rotating machinery and conductive dust ingress are persistent threats to electronic components. The DIO216’s conformal coating and sealed backplane connector provide a meaningful barrier against these failure modes.

In power generation and electrical utilities, the DIO216 is deployed in turbine governor control panels and substation automation cabinets, where it interfaces with protection relays, circuit breaker auxiliary contacts, and transformer tap-changer position indicators. Compliance with IEC 61000-4 EMC standards ensures that high-energy switching transients from nearby high-voltage equipment do not corrupt digital I/O states.

In water and wastewater treatment plants, the module manages pump sequencing, valve actuation, and level switch monitoring across remote lift stations and treatment process trains. Its compatibility with BACHMANN M1 SCADA integration tools allows plant operators to monitor all 16 I/O channels in real time from a central control room HMI.

In metallurgy and heavy industry — including steel rolling mills, aluminum smelters, and cement kilns — the DIO216 withstands the thermal radiation, electromagnetic noise from large variable-frequency drives (VFDs), and mechanical shock that routinely damage less ruggedized I/O hardware. Specifying the DIO216 as a standard spare part in these facilities reduces mean time to repair (MTTR) and supports continuous production targets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the DIO216 fails to perform to its published specifications within the warranty period, we will repair or replace the unit at no charge. Warranty claims are processed promptly, with a target response time of 3 business days from receipt of the returned module.

Q2: How is each unit tested before shipment?
Every BACHMANN DIO216 unit in our inventory undergoes a pre-shipment functional verification process. This includes power-on self-test confirmation, channel-by-channel I/O continuity checks, and backplane bus communication validation. Units that do not pass all test criteria are quarantined and not offered for sale. A test record is available upon request for quality-critical procurement processes.

Q3: Is the DIO216 compatible with my existing BACHMANN M1 rack and CPU?
Yes. The DIO216 is designed for direct plug-in installation into any standard BACHMANN M1 Series rack. It is compatible with all M1 CPU modules, including the MPC240, MPC265, and MPC270, and requires no additional adapter hardware. Configuration is performed through BACHMANN’s SolutionCenter engineering software using standard IEC 61131-3 I/O mapping. If you are uncertain about compatibility with a specific rack revision or firmware version, contact our technical team before ordering.

Q4: Can you support long-term or repeat supply of the DIO216?
Yes. We maintain dedicated stock of BACHMANN M1 Series modules, including the DIO216, to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. We can provide scheduled delivery agreements for facilities that require guaranteed spare-part availability. For large-quantity orders or multi-year supply contracts, please contact our sales team directly to discuss pricing and lead-time commitments.
