BACHMANN BS209 Original Industrial Spare MX/MC Compatible

Product Overview

BACHMANN BS209 Original Industrial Spare MX/MC Compatible: System Stability and Industrial Spare Parts Maintenance Value

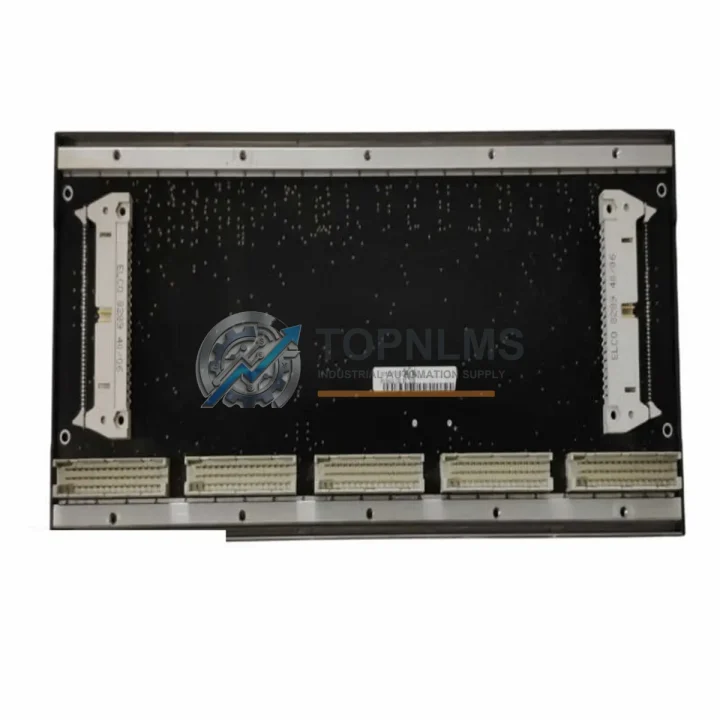

The BACHMANN BS209 is a genuine backplane rack module engineered for the BACHMANN MX/MC Series control platform — one of the most widely deployed modular PLC/DCS architectures in European industrial automation. As a critical bus infrastructure component, the BS209 provides the physical and electrical backbone that interconnects CPU modules, I/O modules, communication modules, and power supply units within the control cabinet. Maintaining a verified spare of the BS209 is not optional for facilities running BACHMANN-based control systems — it is a fundamental element of any responsible preventive maintenance and business continuity strategy.

In high-availability production environments — including paper mills, water treatment plants, chemical processing lines, and discrete manufacturing cells — an unplanned backplane failure can cascade into a full system shutdown within seconds. The BS209 eliminates that risk by providing a tested, original-specification replacement that can be installed without firmware reconfiguration or bus address reassignment, preserving the integrity of the existing control architecture and minimizing mean time to repair (MTTR).

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or emergency replacement of the BACHMANN BS209 backplane, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet. The backplane is the central nervous system of the MX/MC rack — any degradation in its bus connectors, slot contacts, or power distribution rails will affect every module seated in the rack. A proactive maintenance visit should therefore include inspection and, where appropriate, spare procurement for the following associated components:

The BACHMANN PS205 or PS207 power supply module feeds regulated 24 VDC to the backplane bus; a failing PSU is the most common root cause of intermittent BS209 bus errors and should always be tested in parallel. The BACHMANN MC206 or MC207 CPU module seated in the primary slot should have its firmware version logged and its battery-backed RAM verified — a spare CPU is the highest-priority item in any BACHMANN MX/MC spare parts kit. Digital I/O modules such as the DI212 and DO212 connect field devices to the backplane via the BS209 bus; worn slot connectors on these modules can cause false diagnostics that are incorrectly attributed to the backplane itself.

Communication continuity depends on the BACHMANN CM202 or CM203 PROFIBUS/Ethernet communication module, which must be re-seated and re-tested after any backplane replacement to confirm network address retention. Terminal blocks and field wiring connectors on the I/O modules should be inspected for oxidation and torque compliance during the same maintenance window — loose terminals are a leading cause of signal drift in aging BACHMANN installations. If the system includes analog signal conditioning, the AI204 or AO204 analog I/O modules should be calibrated post-replacement to confirm that the new backplane’s bus impedance has not introduced offset errors.

For facilities managing legacy BACHMANN systems beyond their original design life, maintaining a buffer stock of the BS209 backplane alongside the MPC240 or MPC265 controller modules is strongly recommended. These controller modules are frequently discontinued or on extended lead times, and a single unplanned failure without a spare can result in weeks of downtime while sourcing a replacement. Pairing the BS209 with a tested spare BACHMANN SPS module or redundancy controller further reduces single-point-of-failure risk in critical process applications.

Strategic Replacement Solutions

The BACHMANN BS209 is a direct form-fit-function replacement for aging or failed backplane modules within the MX/MC Series rack architecture. Unlike third-party or aftermarket alternatives, the original BS209 maintains full compatibility with BACHMANN’s proprietary bus protocol, ensuring that no changes are required to the CPU configuration, I/O addressing, or communication node settings after installation. This is particularly valuable in legacy system environments where the original engineering documentation may be incomplete or where re-commissioning time must be minimized.

Facilities transitioning from older BACHMANN rack generations can use the BS209 as a bridge component — retaining existing I/O wiring and field instrumentation while upgrading CPU and communication modules to current-generation hardware. This approach significantly reduces capital expenditure compared to a full system migration and allows maintenance teams to implement upgrades in phases without production interruption. The BS209’s standardized slot geometry also means that spare modules sourced today will remain physically compatible with installed racks for the foreseeable service life of the platform.

All BS209 units supplied by TOPNLMS are subject to pre-shipment functional testing, including bus continuity verification, slot contact resistance measurement, and visual inspection for mechanical damage. Units are shipped in anti-static packaging with full traceability documentation, and each unit is covered by a 12-month warranty from the date of shipment.

Support FAQ

Q1: Is the BS209 compatible with all BACHMANN MX/MC Series racks?
A: The BS209 is designed for the BACHMANN MX/MC Series modular platform. Compatibility should be verified against your specific rack generation and slot count. Our technical team can assist with cross-referencing your existing rack part number prior to order confirmation.

Q2: What is the lead time and how is the unit tested before shipment?
A: In-stock units typically ship within 1–3 business days. Every BS209 undergoes full functional verification — including bus continuity and slot contact testing — before dispatch. A test report is available upon request.

Q3: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround.

Q4: Can I order the BS209 alongside other BACHMANN MX/MC spare modules?
A: Yes. TOPNLMS maintains stock of a broad range of BACHMANN MX/MC Series components including CPU modules, power supply modules, I/O modules, and communication modules. Consolidated shipment is available to reduce freight costs and simplify incoming inspection.
