BACHMANN BS206 Ruggedized Backplane Module for Harsh Environments

Product Overview

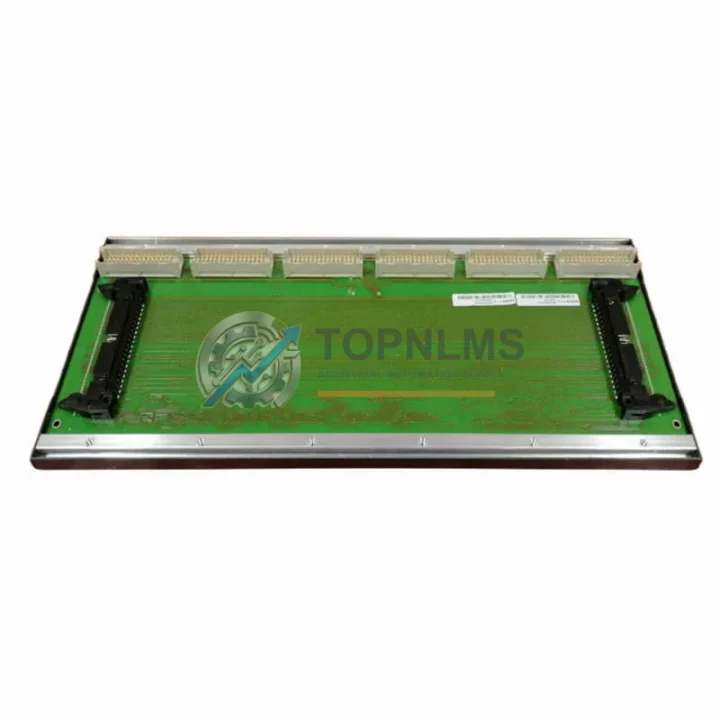

BACHMANN BS206 Ruggedized Backplane Module for Harsh Environments

The BACHMANN BS206 is a 6-slot passive backplane designed for the MPC240 modular PLC rack system, engineered to deliver unwavering structural and electrical integrity in the most demanding industrial environments. Whether deployed in high-temperature foundries, dust-laden mining galleries, high-humidity water treatment facilities, or vibration-intensive heavy manufacturing lines, the BS206 provides the backbone connectivity that keeps your entire control architecture operational without compromise.

As the physical and electrical hub of the MPC240 rack, the BS206 interconnects all installed modules — including CPU units, I/O modules, communication modules, and power supply modules — through a robust passive bus architecture. Unlike active backplanes, the passive design of the BS206 eliminates internal active components that could fail under thermal stress or electromagnetic interference (EMI), making it inherently more resilient in environments where variable-frequency drives, high-power motors, and arc welding equipment generate significant electrical noise.

In continuous production environments such as petrochemical plants, steel mills, and offshore platforms, the integrity of the PLC rack backplane is a foundational element of system uptime. A degraded or failed backplane can cause intermittent communication faults between the BACHMANN MPC240 CPU and its peripheral modules, leading to unpredictable control behavior, nuisance trips, or complete system shutdown. Maintaining a certified original BS206 spare on-site is therefore a critical element of any responsible preventive maintenance program.

Rugged Specifications Table

Comprehensive Protection Solutions

When replacing or inspecting the BS206 backplane in an MPC240 rack, experienced maintenance engineers treat the event as an opportunity for a full rack health audit. The backplane is the common bus for every module installed in the rack, so any replacement should be accompanied by a systematic check of all connected components.

Begin with the BACHMANN PS204 power supply module, which feeds regulated DC power to the backplane bus. A power supply operating near its thermal limits or showing output ripple beyond specification can accelerate connector wear on the backplane itself. Verify output voltage stability before re-seating the new BS206.

Next, inspect the BACHMANN MPC240 or MPC265 CPU module seated in slot 1. The CPU communicates with all peripheral modules through the backplane bus; any oxidation or mechanical damage to the CPU’s backplane connector will manifest as intermittent module faults even after a backplane replacement. Clean all gold-plated edge connectors with isopropyl alcohol before reinstallation.

The BACHMANN DIO280 digital I/O module and AIO288 analog I/O module should also be removed, inspected, and re-seated during the backplane replacement. These modules are frequently the first to exhibit communication errors when backplane bus integrity degrades, and their connectors should be checked for signs of fretting corrosion — a common failure mode in high-vibration environments such as compressor stations or rolling mills.

In facilities with networked control architectures, the BACHMANN CM202 communication module (supporting PROFIBUS, Modbus, or Ethernet/IP depending on configuration) should be verified for firmware version compatibility with the replacement backplane assembly. Communication modules are sensitive to bus timing, and a fresh backplane installation is an ideal time to confirm that all firmware versions across the rack are aligned.

For installations in hazardous areas or those subject to significant EMI from variable-frequency drives or large motor starters, consider adding signal isolation modules and surge protection terminal blocks at the field wiring interface. These components protect the I/O modules from transient overvoltages that can propagate through field cables and damage backplane-connected modules.

Finally, review the condition of the rack mounting hardware and DIN rail grounding straps. A poorly grounded rack is a leading cause of EMI-induced faults in PLC systems, and the BS206 backplane’s passive design relies on the rack’s mechanical ground path for EMI shielding effectiveness.

Application in Critical Infrastructure

The BACHMANN MPC240 platform, with the BS206 as its structural core, is deployed across a wide range of critical infrastructure sectors where control system reliability is non-negotiable.

In oil and gas processing facilities, MPC240-based control panels manage wellhead pressure regulation, separator control, and emergency shutdown (ESD) logic. The BS206 backplane must maintain reliable module interconnection in environments subject to H₂S exposure, wide ambient temperature swings, and continuous mechanical vibration from pumping equipment. Scheduled backplane inspection intervals of 18–24 months are recommended in these applications.

In mining and mineral processing, the BS206 is found in conveyor control panels, crusher automation systems, and ventilation management controllers. These environments combine high dust concentrations, vibration from blasting and heavy machinery, and frequent power quality disturbances — all conditions that stress backplane connectors and bus integrity over time.

In power generation and grid infrastructure, BACHMANN controllers are used in turbine governor systems, transformer protection panels, and substation automation. The BS206 must perform reliably in environments with strong electromagnetic fields from high-voltage switchgear and bus bars. The passive backplane architecture is particularly well-suited to these applications because it introduces no additional active noise sources into the control rack.

In water and wastewater treatment, MPC240 systems control pump stations, dosing systems, and SCADA-connected remote terminal units (RTUs). High ambient humidity and the presence of corrosive chemicals in the atmosphere make regular inspection of backplane connectors and rack sealing essential.

In metallurgical and steel production environments, the combination of radiated heat from furnaces, airborne metallic particulates, and high-current motor drives creates one of the most challenging operating environments for any PLC hardware. The BS206’s robust passive construction and BACHMANN’s industrial-grade manufacturing standards make it a trusted choice for these applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the BS206?
The 12-month warranty covers all functional defects arising under normal operating conditions, including bus communication failures, connector integrity issues, and mechanical defects present at the time of shipment. Each BS206 unit is functionally tested prior to dispatch. Warranty claims are supported by our technical team at [email protected].

Q2: How is the BS206 tested before shipment?
Each unit undergoes a pre-shipment inspection that includes visual examination for physical damage, connector pin integrity verification, and where test fixtures are available, functional bus continuity testing. Units that do not pass inspection are not shipped. A test report can be provided upon request for critical infrastructure procurement.

Q3: Is the BS206 compatible with all MPC240-series modules?
Yes. The BS206 is the standard 6-slot passive backplane for the BACHMANN MPC240 modular PLC platform and is compatible with all MPC240-series CPU, I/O, communication, and power supply modules. If you are integrating the BS206 into an existing rack with mixed module generations, please contact our technical team to confirm compatibility with your specific module firmware versions.

Q4: Can TOPNLMS support long-term supply of BS206 for multi-year maintenance contracts?
Yes. TOPNLMS maintains stock of BACHMANN MPC240-series components including the BS206 backplane and can support blanket purchase orders and scheduled delivery programs for facilities requiring guaranteed spare parts availability over multi-year maintenance cycles. Contact [email protected] to discuss volume pricing and supply agreements.
