Bachmann 200150-05-05 Replacement Solution for M1 Series

Product Overview

Bachmann 200150-05-05 Replacement Solution for M1 Series: Seamless Transition from Legacy I/O Systems

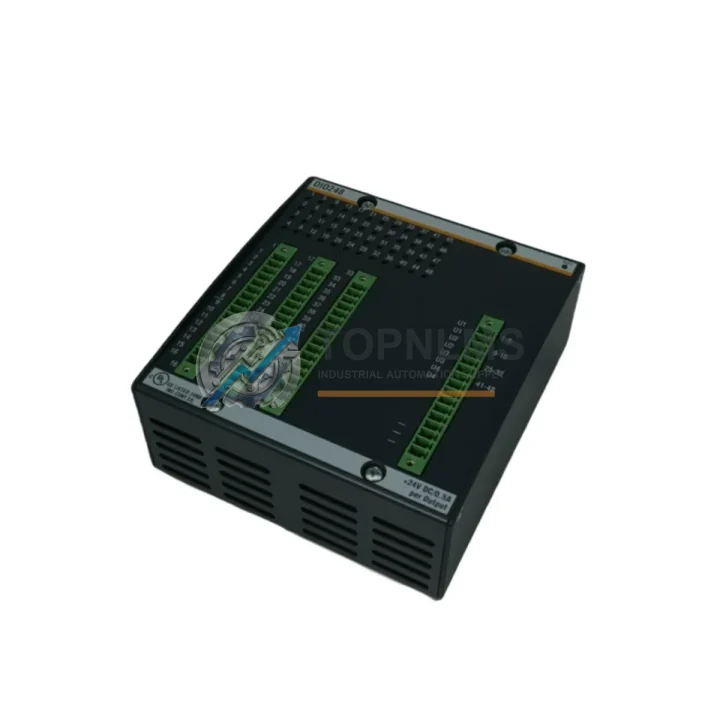

The Bachmann DIO248 (part number 200150-05-05) is a high-density Digital I/O Module designed for the Bachmann M1 Series automation platform. As legacy control systems age and original spare parts become increasingly scarce, facilities running Bachmann M1-based architectures face mounting pressure to source reliable, specification-accurate replacements that preserve existing wiring infrastructure, program logic, and communication topology. TOPNLMS supplies the DIO248 200150-05-05 as a direct replacement module, fully tested and ready for installation, enabling engineers to restore or upgrade their control systems with minimal disruption to production.

The DIO248 module provides 24 digital inputs and 24 digital outputs on a single M1 rack-mounted card, making it a compact and cost-effective solution for mixed I/O applications in machine control, process automation, and infrastructure monitoring. When migrating from an older Bachmann MPC240 or MPC265 controller-based system, the DIO248 slots directly into the M1 backplane without requiring rack modifications. Engineers replacing a failed or end-of-life I/O card can retain existing 24 VDC field wiring, terminal assignments, and I/O mapping within the Bachmann SolutionCenter programming environment, dramatically reducing commissioning time on the plant floor.

For sites upgrading from third-party PLC platforms — such as Siemens S7-300 distributed I/O or Schneider Electric Modicon Quantum I/O racks — to a Bachmann M1 architecture, the DIO248 200150-05-05 serves as the digital I/O backbone of the new system. Its compatibility with the M1 internal bus ensures deterministic scan-cycle performance, and its 24 VDC sourcing/sinking input circuitry accommodates the majority of field sensors already installed, including proximity switches, limit switches, and digital transmitters. This means field wiring can often be re-terminated directly to the new module’s front connector without rewiring the entire cabinet.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or around the Bachmann DIO248 200150-05-05 rarely involves a single module in isolation. In practice, field engineers working on M1 Series control cabinets will encounter a cluster of interdependent components that must be evaluated together. The M1 CPU module — such as the MPC240 or MPC265 — serves as the central controller that manages the DIO248 over the M1 internal bus; if the CPU is also aging, it is prudent to source a replacement unit at the same time to avoid a second unplanned outage. Similarly, the M1 power supply module (PS204 or equivalent) must be verified to deliver adequate current for the expanded I/O load when adding or replacing DIO248 cards in a populated rack.

Communication continuity is another critical consideration. Many M1 installations use the Bachmann ETH202 Ethernet communication module or a PROFIBUS master module to interface with SCADA systems, HMI panels, or field devices. When replacing the DIO248, engineers should confirm that the communication module firmware is compatible with the current SolutionCenter project version to avoid protocol mismatches after the swap. For sites using EtherCAT-based I/O expansion, the Bachmann ECS series coupler modules must also be checked for compatibility with the updated rack configuration.

On the field wiring side, terminal modules and signal isolators play an important role in protecting the new DIO248 from voltage spikes and ground loops common in industrial environments. Installing DIN-rail mounted signal conditioning modules between field devices and the DIO248 front connector is a best practice that extends module life and reduces nuisance faults. For applications involving analog signals that were previously handled by a combined analog/digital module, a dedicated Bachmann AIO288 or similar analog I/O module may need to be added to the rack alongside the DIO248 to maintain full signal coverage.

HMI connectivity should also be reviewed during the migration window. Panels communicating with the M1 CPU via Modbus TCP or OPC UA will continue to function without reconfiguration, but if the HMI project references specific I/O addresses mapped to the old module, those address assignments must be verified against the new DIO248 channel map in SolutionCenter. Programming cables — specifically the Bachmann USB-to-M1 diagnostic cable — are essential for on-site firmware verification and project download during commissioning, and having a spare on hand prevents delays if the existing cable is damaged.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a failed DIO248?
A: Yes. The DIO248 200150-05-05 uses the same 48-pin front connector pinout as previous DIO248 revisions. In most cases, the existing wiring harness can be unplugged from the failed module and plugged directly into the replacement unit. Always verify terminal assignments against the original project documentation before powering up.

Q: Do I need to modify my SolutionCenter program after the swap?
A: No program modification is required for a like-for-like replacement. The DIO248 is recognized automatically by the M1 CPU during rack initialization. If you are replacing a different I/O module type with the DIO248, you will need to update the hardware configuration in SolutionCenter and remap I/O variables accordingly.

Q: What communication protocols does the DIO248 support?
A: The DIO248 communicates exclusively over the M1 internal backplane bus. External communication protocols (EtherCAT, PROFIBUS, Modbus TCP, OPC UA) are handled by the M1 CPU and communication modules, not by the DIO248 itself. This architecture means the DIO248 is protocol-agnostic from a field perspective.

Q: Will the DIO248 fit in my existing M1 rack without mechanical modification?
A: Yes. The DIO248 occupies a single M1 rack slot and uses the standard M1 backplane connector. No mechanical modification to the rack or cabinet is required. Ensure the rack has sufficient power budget from the PS204 or equivalent power supply before installation.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, connect the programming cable and open the SolutionCenter diagnostic view. The DIO248 should appear in the rack configuration with green status indicators. Force individual I/O channels in test mode to verify field wiring continuity before returning the system to automatic operation.

Q: What if my system uses a discontinued Bachmann module that is not a DIO248?
A: Contact TOPNLMS with your existing module part number. Our technical team can advise on cross-compatibility, adapter requirements, or alternative M1 Series modules that provide equivalent functionality. We maintain stock of multiple M1 Series I/O and communication modules to support complete system retrofits.

Warranty Assurance

Every Bachmann DIO248 200150-05-05 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional testing to verify digital input response, output switching, backplane communication, and power consumption within specification. Modules that do not pass our outgoing quality inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, depending on the customer’s preference and stock availability. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage, or physical impact.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of conformance with every shipment. Express shipping via DHL, FedEx, or UPS is available for urgent replacement orders, with dispatch from our Xiamen warehouse typically within 1–2 business days of payment confirmation. Bulk orders for maintenance stock programs are welcome, and volume pricing is available upon request.

For technical pre-sales support, compatibility verification, or to place an order, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
