B&R X20SO4120 Replacement/Upgrade Solution for X20 Series: Smooth Migration from Legacy Output Modules

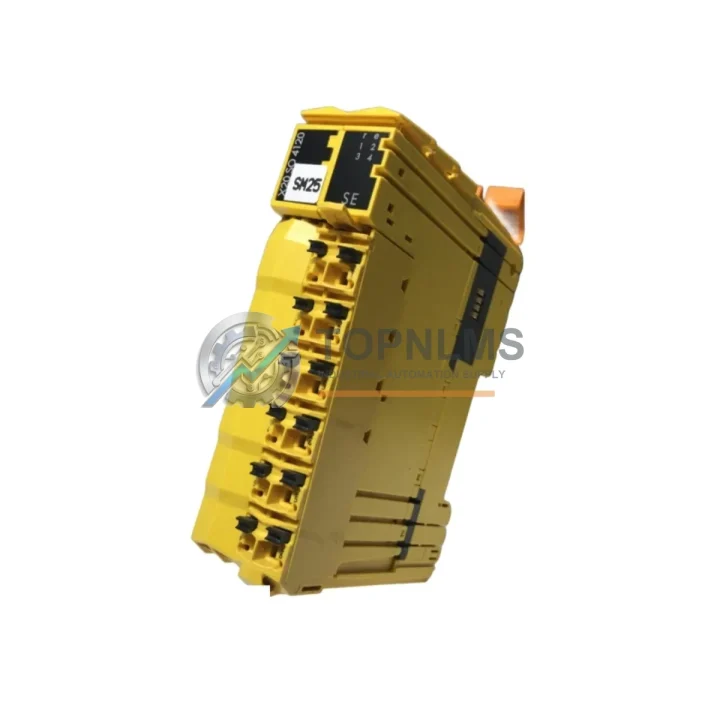

The B&R X20SO4120 is a 4-channel solid-state digital output module designed for seamless integration into B&R’s X20 System — one of the most widely deployed modular PLC platforms in industrial automation. Whether you are replacing a failed unit, retiring an end-of-life configuration, or executing a planned control system modernization, the X20SO4120 delivers a verified drop-in upgrade path that minimizes engineering rework, reduces downtime, and preserves your existing wiring infrastructure.

This module operates within the X20 backplane ecosystem, drawing power directly from the X20 power supply module (such as the X20PS9400 or X20PS9402) via the internal bus. No external 24 VDC output power wiring to the module body is required — a key advantage when retrofitting tight control cabinet layouts where space and cable routing are constrained. The X20SO4120 occupies a standard X20 slot width, making it physically interchangeable with earlier-generation solid-state output modules in the same series without panel cutout modifications.

For facilities migrating from older B&R 2003, 2005, or Provit 5000 series controllers, the X20SO4120 represents a forward-compatible output stage that integrates directly with the X20CP series CPUs — including the X20CP1484, X20CP1585, and X20CP3585 — via the X2X Link or POWERLINK communication backbone. No gateway or protocol converter is needed when the host controller already supports the X20 bus standard, which dramatically simplifies the migration bill of materials and reduces commissioning time on the plant floor.

Wiring compatibility is a primary concern during any output module replacement. The X20SO4120 uses the standard X20 terminal block connector, which is mechanically identical across the X20 I/O family. Field wiring connected to a predecessor module — such as the X20DO4322 or X20DO9322 — can typically be re-terminated to the X20SO4120 without re-labeling or re-routing, provided the load voltage and current ratings of the new module are confirmed against the existing actuator specifications. The solid-state output design eliminates relay contact wear, making it particularly suitable for high-cycle applications such as solenoid valve control, indicator lamp switching, and conveyor interlock circuits.

From a software and programming perspective, migration to the X20SO4120 within an existing Automation Studio project requires only a module swap in the hardware configuration tree. The I/O mapping, variable declarations, and ladder or structured text logic referencing the output channels remain unchanged. This is a significant advantage over cross-brand migrations, where full I/O remapping and driver reconfiguration are typically required. Engineers upgrading from third-party output modules — such as Siemens ET 200SP digital output modules or Allen-Bradley 1734 POINT I/O DO modules — will need to account for differences in backplane communication protocol, terminal assignment, and diagnostic behavior, but the X20SO4120’s Automation Studio integration provides a well-documented migration framework.

System architects planning a broader control cabinet upgrade will find the X20SO4120 compatible with the full X20 ecosystem, including X20AI analog input modules for process signal acquisition, X20DI digital input modules for field device feedback, X20BB bus base modules for mechanical mounting, and X20BM bus modules for segment expansion. When combined with an X20IF communication interface module — supporting PROFIBUS, PROFINET, EtherNet/IP, or Modbus TCP depending on variant — the X20SO4120 can serve as part of a distributed I/O node in multi-network architectures, enabling phased migration strategies where legacy fieldbus segments are retained while new Ethernet-based control layers are introduced.

For procurement teams and maintenance engineers, sourcing a verified X20SO4120 replacement unit is a time-sensitive decision. Production lines dependent on a single failed output module cannot afford extended lead times from OEM distribution channels. TOPNLMS maintains ready stock of the X20SO4120 and ships from Xiamen within 1–3 business days of order confirmation. Each unit undergoes pre-shipment functional verification to confirm output channel switching, bus communication integrity, and module identification response before dispatch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete X20SO4120 migration typically involves more than a single module swap. Depending on the scope of your retrofit, the following X20 system components are commonly sourced alongside the X20SO4120 to complete the upgrade. The X20BB80 bus base provides the mechanical mounting and backplane connection for the output module within the X20 rack assembly. The X20PS9400 power supply module delivers the internal bus voltage required to power the I/O segment. For applications requiring analog process control alongside digital switching, the X20AI4622 analog input module integrates into the same X20 rack without additional wiring infrastructure. Where the existing control cabinet includes a legacy PROFIBUS DP network, the X20IF1041 PROFIBUS interface module enables the X20 I/O segment to participate as a DP slave, preserving the existing fieldbus topology during a phased migration. For new installations or full rack replacements, the X20CP1484 or X20CP1585 CPU modules serve as the host controller, with Automation Studio providing unified configuration for all X20 I/O including the X20SO4120. Engineers replacing wiring harnesses during the retrofit will also commonly source X20 terminal block accessories and DIN rail mounting hardware to complete the mechanical installation.

Retrofit Guidance FAQ

Q: Can I re-use existing field wiring when replacing with the X20SO4120?
A: Yes, in most cases. The X20SO4120 uses the standard X20 terminal block connector. If the predecessor module used the same connector format, field wiring can be re-terminated directly. Confirm load voltage and current ratings match the X20SO4120 output specifications before energizing.

Q: Do I need to modify my Automation Studio program after swapping to the X20SO4120?
A: No program logic changes are required if you are replacing a functionally equivalent X20 digital output module. Update the hardware configuration in Automation Studio to reflect the new module type, then rebuild and download. Existing I/O variable mappings remain valid.

Q: Is the X20SO4120 compatible with POWERLINK and X2X Link architectures?
A: Yes. The X20SO4120 communicates via the X20 internal bus, which supports both X2X Link and POWERLINK topologies depending on the host CPU and network configuration. No additional communication module is required for standard X20 rack installations.

Q: What are the physical space requirements for installation?
A: The X20SO4120 occupies a single standard X20 slot on the X20 bus base. No additional panel cutout or DIN rail space beyond the standard X20 slot width is required, making it suitable for dense control cabinet layouts.

Q: How do I handle the transition from a relay output predecessor to the solid-state X20SO4120?
A: Verify that the connected loads are compatible with solid-state switching characteristics (leakage current, minimum load, voltage range). Inductive loads should include appropriate suppression. Consult the X20SO4120 datasheet for full electrical specifications before commissioning.

Warranty Assurance

Every X20SO4120 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes output channel switching verification, X20 bus communication response, and module identification confirmation. In the event of a verified defect within the warranty period, TOPNLMS provides replacement dispatch or credit resolution within agreed response timelines. Our procurement support team is available to assist with urgent sourcing requirements, technical compatibility queries, and multi-unit order coordination. Stock availability is confirmed at time of order, and export documentation for international shipments is prepared in compliance with applicable trade regulations.
