B&R X20 CS 1030 Original Industrial Spare X20 Compatible

Product Overview

B&R X20 CS 1030 Original Industrial Spare X20 Compatible

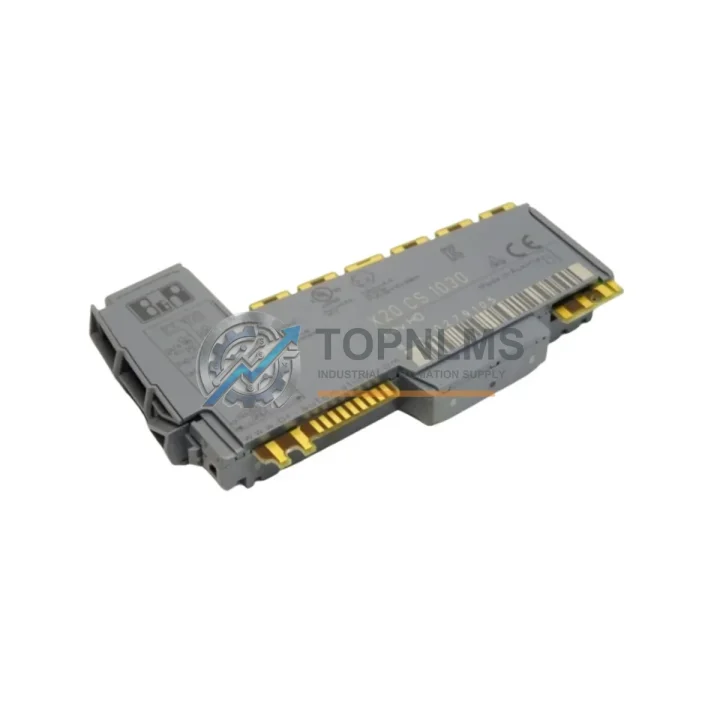

The B&R X20 CS 1030 is a genuine POWERLINK communication module designed for the B&R X20 modular PLC platform — one of the most widely deployed automation architectures in precision manufacturing, packaging, and process control. As a critical node in the X20 backplane communication chain, the X20 CS 1030 enables deterministic, real-time Ethernet POWERLINK data exchange between the controller and distributed I/O stations, ensuring cycle-accurate synchronization across the entire control system.

For maintenance engineers and spare parts planners managing aging B&R X20 installations, sourcing a verified original X20 CS 1030 is not merely a procurement task — it is a system stability decision. A failed or counterfeit communication module can disrupt the entire POWERLINK network segment, triggering cascading faults across connected I/O modules, motion axes, and safety nodes. Holding a tested, genuine replacement in your spare parts inventory is the most cost-effective insurance against unplanned downtime.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any B&R X20 control cabinet must treat the communication backbone as a priority inspection zone. The X20 CS 1030 sits at the heart of this backbone, and its health directly determines the reliability of every downstream node on the POWERLINK segment.

During scheduled cabinet inspections, maintenance teams should simultaneously audit the X20 PS 9400 power supply module, which feeds the X20 backplane — a degraded power supply is one of the leading causes of intermittent communication faults that are often misdiagnosed as module failures. Alongside the power supply, the X20 BM 01 bus module and X20 TB 06 terminal block should be inspected for oxidation, loose contacts, and mechanical wear, as these passive components are frequently overlooked until they cause hard-to-trace signal interruptions.

For systems with distributed I/O, the X20 DI 9371 digital input module and X20 DO 9322 digital output module are common co-residents in the same X20 station as the CS 1030. Their firmware versions and diagnostic LED states should be logged during every maintenance cycle. If the POWERLINK network also carries motion data, the X20 DS 1119 drive interface module warrants inspection for connector integrity and cable routing.

RJ45 patch cables connecting the X20 CS 1030 to the POWERLINK ring or line topology are a surprisingly common failure point in high-vibration environments. Industrial-grade shielded Cat5e or Cat6 cables with locking connectors should be part of the spare parts kit alongside the module itself. Similarly, the X20 CP 1586 CPU module — the POWERLINK Managing Node in many X20 configurations — should have a verified spare on hand, as its failure would render the entire CS 1030 network segment inoperative regardless of the communication module’s condition.

For safety-rated installations, the X20 SAI 1400 safe analog input module and associated safety CPU modules share the same X20 backplane infrastructure. Maintenance planners should ensure that safety module firmware and the CS 1030 firmware are kept at compatible revision levels, as mismatched firmware can cause network initialization failures after a module swap.

Strategic Replacement Solutions

The B&R X20 CS 1030 has been deployed in production lines since the mid-2000s, and many facilities are now operating systems that are 10–15 years into their service life. B&R’s modular X20 architecture was specifically designed to support long-term backward compatibility, meaning a new genuine X20 CS 1030 will slot directly into an existing X20 station without requiring controller reprogramming or network reconfiguration — provided the replacement module is an authentic original and not a clone or refurbished unit of uncertain provenance.

When replacing the X20 CS 1030 in the field, the recommended procedure is to power down the affected X20 station segment, document the existing POWERLINK node address (configured via rotary switches on the module face), swap the module, restore the node address setting, and power up. The POWERLINK Managing Node — typically the X20 CP series CPU — will automatically re-establish communication with the replaced Controlled Node within one network cycle. This plug-and-replace simplicity is a core advantage of the X20 platform and makes maintaining a spare X20 CS 1030 in the cabinet a straightforward risk mitigation strategy.

For facilities managing multiple X20 stations across a plant floor, a centralized spare parts strategy — holding one X20 CS 1030 per POWERLINK segment, plus shared spares for high-density I/O modules — can reduce mean time to repair (MTTR) from hours to minutes. TOPNLMS supplies X20 CS 1030 modules with full pre-shipment electrical testing, ensuring that the replacement unit is verified functional before it reaches your maintenance team.

Support FAQ

Q1: Does the X20 CS 1030 come with a warranty?
Yes. Every X20 CS 1030 supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment electrical testing and functional verification before dispatch.

Q2: How do I verify compatibility with my existing X20 system?
The X20 CS 1030 is compatible with all standard B&R X20 bus modules and X20 backplane configurations supporting POWERLINK V2. Compatibility is determined by the X20 station hardware revision and the Automation Studio project configuration. If you provide your existing system’s CPU part number and Automation Studio version, our technical team can confirm compatibility before shipment.

Q3: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days from our Xiamen warehouse. We support DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Export documentation, including commercial invoice and packing list, is provided with every shipment.

Q4: Can this module replace an older X20 CS 1030 with a different firmware revision?
Genuine B&R X20 CS 1030 modules are designed for forward and backward firmware compatibility within the X20 platform. In most cases, a new module will operate correctly with existing Automation Studio projects without firmware modification. For safety-critical applications, we recommend verifying the firmware revision against your project’s hardware configuration file (HWC) before installation. Our technical support team is available to assist with revision matching.
