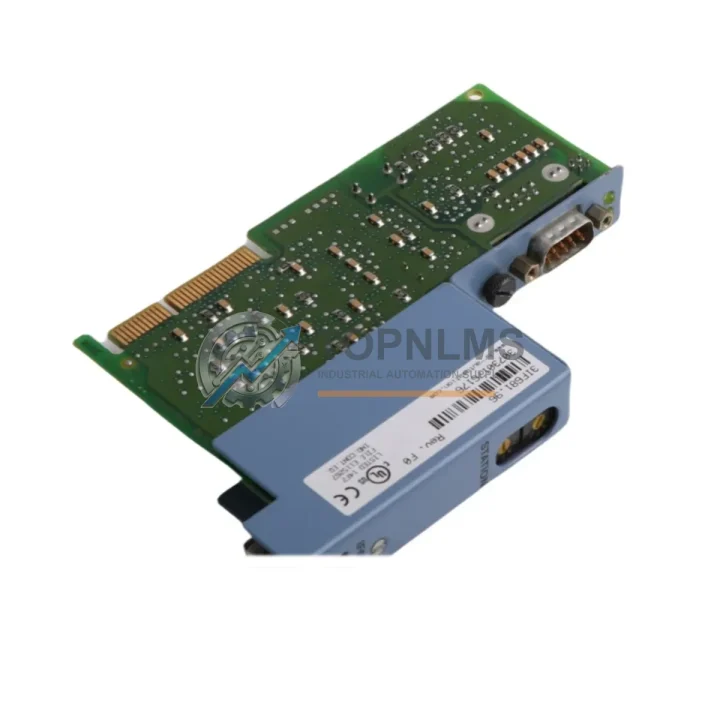

B&R 3IF681.86 Ruggedized PROFIBUS DP Interface Module

Product Overview

B&R 3IF681.86 Ruggedized PROFIBUS DP Interface Module: Industrial Resilience for Harsh Environments

The B&R IF681 (3IF681.86) is a high-performance PROFIBUS DP interface module engineered for the B&R Automation 2000 platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the communication integrity and system stability that mission-critical automation demands.

In continuous production environments where downtime is measured in thousands of dollars per minute, the 3IF681.86 provides deterministic PROFIBUS DP communication between the B&R CP476 or CP486 central processing units and distributed I/O nodes, variable frequency drives, safety controllers, and intelligent field devices. Its robust design tolerates the electromagnetic interference (EMI) common in arc furnace facilities, high-voltage switchgear rooms, and large motor drive installations, ensuring uninterrupted data exchange across the PROFIBUS DP network at speeds up to 12 Mbit/s.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3IF681.86 is rarely deployed in isolation. In a fully integrated B&R Automation 2000 control cabinet, it works in concert with the B&R CP476 central processing unit, which handles the real-time PLC logic, while the B&R IF661 (3IF661.60) PROFIBUS DP slave interface extends the network to remote I/O racks. Digital and analog signals from the field are collected through B&R DI435 digital input modules and B&R AO352 analog output modules, all communicating back through the PROFIBUS DP backbone managed by the 3IF681.86.

On the power side, the B&R PS465 power supply module provides stable 24 VDC to the backplane, ensuring that voltage fluctuations from heavy motor starts or welding equipment do not disrupt the communication bus. For installations involving variable frequency drives — such as the ABB ACS880 or Siemens SINAMICS G120 configured as PROFIBUS DP slaves — the 3IF681.86 serves as the master controller, issuing speed and torque references with cycle times well within the drive’s response window.

In safety-critical zones, the 3IF681.86 coexists with B&R X20 Safety modules and dedicated Pilz PNOZ safety relays wired into the emergency stop circuit, while the PROFIBUS DP network carries diagnostic and status data to the SCADA layer. Terminal modules such as the B&R TB702 terminal block provide clean, vibration-resistant field wiring termination points within the same control cabinet, reducing the risk of intermittent connections in high-vibration environments like compressor stations or rolling mills.

For plants requiring redundant communication paths, the 3IF681.86 can be paired with an HMS Anybus Communicator gateway to bridge PROFIBUS DP segments with PROFINET or Modbus TCP networks, enabling seamless integration into hybrid automation architectures common in petrochemical and power generation facilities.

Application in Critical Infrastructure

The B&R 3IF681.86 has proven its reliability across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream and midstream facilities, the 3IF681.86 manages PROFIBUS DP communication between the main PLC and distributed valve actuators, pressure transmitters, and flow meters installed in classified hazardous areas. The module’s EMI tolerance is essential in environments where high-voltage cable trays run parallel to signal wiring.

Mining & Mineral Processing: Continuous dust exposure and mechanical vibration from crushers and conveyors place extreme demands on communication hardware. The 3IF681.86, installed in sealed IP54 or IP65 control enclosures, maintains reliable PROFIBUS DP polling cycles even as ambient conditions fluctuate dramatically between shifts.

Power Generation & Utilities: In coal-fired and hydroelectric power plants, the 3IF681.86 coordinates I/O data from turbine control panels, generator protection relays, and excitation systems. Its deterministic communication ensures that protection logic receives real-time status updates without latency spikes that could compromise grid stability.

Water & Wastewater Treatment: High humidity, chemical vapors, and 24/7 continuous operation characterize water treatment automation. The 3IF681.86 supports uninterrupted PROFIBUS DP communication between the central PLC and remote pump stations, dosing systems, and level sensors, reducing the need for on-site maintenance visits.

Metallurgy & Steel: Arc furnace and continuous casting environments expose control hardware to extreme thermal cycling and electromagnetic pulses. The 3IF681.86’s robust design and B&R’s industrial-grade manufacturing standards make it a trusted component in steel plant automation upgrades and spare parts programs.

Security & Quality FAQ

Q1: Does the 3IF681.86 come with a warranty, and what does it cover?
Yes. Every B&R 3IF681.86 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing prior to shipment, including PROFIBUS DP communication verification and power-on diagnostics. If a unit fails within the warranty period, we provide a replacement or full refund.

Q2: How is the module tested before shipment?
Each 3IF681.86 is bench-tested using a B&R Automation 2000 test rack. Tests include backplane bus communication, PROFIBUS DP master/slave handshake at multiple baud rates, and visual inspection for physical damage. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 3IF681.86 compatible with my existing B&R Automation 2000 system?
The 3IF681.86 is designed for the B&R Automation 2000 platform and is compatible with CP476, CP486, and other Automation 2000 series CPUs. It is fully supported by B&R Automation Studio for configuration and diagnostics. If you are unsure about compatibility with your specific hardware revision or firmware version, contact our technical team with your system configuration details.

Q4: Can TOPNLMS support long-term or repeat supply of the 3IF681.86?
Yes. TOPNLMS maintains dedicated stock of B&R Automation 2000 spare parts, including the 3IF681.86, to support planned maintenance programs, emergency replacements, and capital project builds. We can provide volume pricing, lead time commitments, and consignment stock arrangements for OEMs and system integrators managing multi-site installations.
