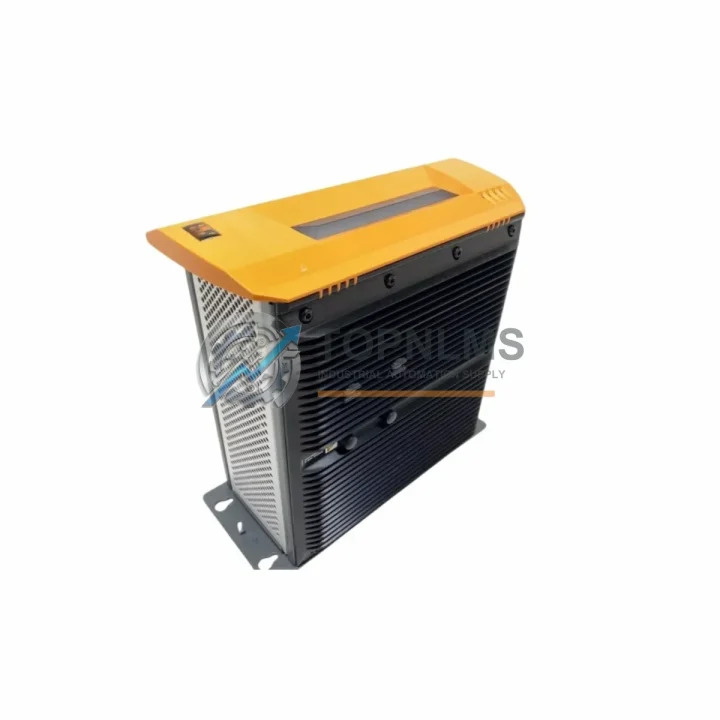

B&R E1696.31 Ruggedized Servo Drive Control Module

Product Overview

B&R E1696.31 Ruggedized Servo Drive Control Module: Industrial Resilience for Harsh Environments

The B&R E1696.31 is a high-performance servo drive control module engineered for the ACOPOS series motion control platform. Designed to deliver unwavering reliability in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module represents the gold standard in motion axis control for continuous production systems.

Built on B&R’s proven ACOPOS architecture, the E1696.31 integrates seamlessly into multi-axis servo systems where precision, speed, and fault tolerance are non-negotiable. Whether deployed in a steel rolling mill, an offshore oil platform control cabinet, or a high-speed packaging line, this module maintains stable closed-loop servo control even under severe electromagnetic interference (EMI), voltage transients, and mechanical shock loads that would compromise lesser components.

In critical infrastructure environments — petrochemical refineries, power generation facilities, water treatment plants, and metallurgical processing lines — unplanned downtime carries enormous operational and safety costs. The E1696.31 is engineered to minimize that risk. Its robust PCB design, conformal coating options, and thermally optimized layout ensure continuous operation across wide ambient temperature ranges, making it a trusted choice for plant engineers and procurement specialists who cannot afford field failures.

Rugged Specifications Table

Comprehensive Protection Solutions

The E1696.31 does not operate in isolation — it is the nerve center of a coordinated motion control architecture. In a typical ACOPOS-based control cabinet, this module works in concert with the B&R ACOPOS 8V1010.00-2 servo drive to regulate motor torque and velocity with sub-millisecond response times. Upstream, a B&R X20CP1586 PLC CPU module issues motion commands via the POWERLINK real-time Ethernet protocol, ensuring deterministic communication even in electrically noisy environments.

For multi-axis applications — common in CNC machining centers, robotic welding lines, and automated material handling systems — the E1696.31 pairs with B&R ACOPOS multi-axis plug-in modules and X20 I/O expansion modules to create a scalable, distributed control architecture. The B&R X20PS9400 power supply module provides stable 24 VDC bus power to the I/O backplane, while dedicated B&R X20DO9322 digital output modules handle actuator control signals with galvanic isolation to protect against ground loops and surge events.

In safety-critical zones — SIL 2 or SIL 3 classified areas in chemical plants or offshore platforms — the E1696.31 is typically deployed alongside B&R X20SL8100 safety logic modules and X20SI9100 safe input modules, forming a complete functional safety layer compliant with IEC 62061 and ISO 13849. Communication integrity is maintained through B&R X20BC0083 POWERLINK communication modules, which bridge the servo control network to the plant-wide DCS or SCADA backbone.

Industrial power quality is another critical factor. Voltage sags, harmonic distortion, and transient spikes from variable frequency drives (VFDs) — such as the B&R ACOPOSmulti 8EI series inverter modules — can degrade control board performance over time. The E1696.31’s robust power input filtering and onboard protection circuitry mitigate these risks, extending service life in environments where power quality cannot be guaranteed. Terminal block modules and B&R X20TB12 terminal base units complete the wiring interface, providing secure, vibration-resistant field connections that maintain signal integrity under continuous mechanical stress.

Application in Critical Infrastructure

In oil and gas upstream operations, the E1696.31 controls servo-driven valve actuators and pump positioning systems on wellhead platforms where salt air corrosion, explosive atmospheres, and temperature extremes are daily realities. Its sealed PCB construction and compliance with industrial EMC standards make it suitable for installation in Ex-rated control enclosures when properly housed.

In mining and mineral processing, conveyor drive systems, ore crushers, and flotation cell agitators demand servo control modules that can withstand constant vibration, coal dust ingress, and the electrical noise generated by large motor starters. The E1696.31’s motion axis control capabilities allow precise speed and torque regulation of conveyor drives, reducing mechanical wear and improving throughput consistency.

In power generation and grid infrastructure — including thermal power plants, hydroelectric stations, and wind turbine nacelle control systems — the E1696.31 manages servo-driven pitch control and valve positioning with the millisecond-level precision required for grid stability. Its compatibility with POWERLINK Ethernet enables integration into plant-wide DCS architectures from leading vendors.

In metallurgical and steel production environments, where ambient temperatures near rolling mills and casting lines can exceed 50°C and electromagnetic interference from large induction furnaces is severe, the E1696.31’s thermal design and EMI hardening provide the operational margin needed for 24/7 continuous production. Planned maintenance windows are reduced because the module’s self-diagnostic capabilities — accessible via B&R Automation Studio — allow predictive fault detection before failures occur.

In water and wastewater treatment facilities, servo-driven dosing pumps, sluice gate actuators, and aeration blower controls rely on the E1696.31 for precise flow regulation. The module’s resistance to high-humidity environments and its long-term availability as a stocked spare part make it a preferred choice for plant engineers managing aging ACOPOS-based control systems that must remain operational for decades.

Security & Quality FAQ

Q1: What warranty coverage is provided for the B&R E1696.31?
All E1696.31 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Every module undergoes functional testing and inspection prior to dispatch. If a unit fails within the warranty period under normal operating conditions, we provide replacement or repair support. Our quality assurance process includes visual inspection, board-level continuity testing, and firmware version verification where applicable.

Q2: Is the E1696.31 compatible with my existing ACOPOS servo drive system?
The E1696.31 is designed as a control board for the B&R ACOPOS servo drive platform and is compatible with ACOPOS 1010, 1016, 1022, 1045, and 1090 series drives. It communicates via the ACOPOS internal bus and supports POWERLINK Ethernet for integration with B&R X20 PLC systems. If you are unsure about compatibility with your specific drive firmware version or system configuration, our technical team can assist with cross-referencing your existing hardware revision.

Q3: How quickly can the E1696.31 be shipped, and what documentation is provided?
In-stock units are typically dispatched within 1–3 business days from our Xiamen, China warehouse. We ship globally via DHL Express, FedEx, and UPS with full tracking. Each shipment includes a packing list and test record. For customers requiring certificates of conformity, material declarations, or customs documentation (HS code 8537.10), these can be provided upon request. Expedited shipping options are available for urgent production line recovery situations.

Q4: Can TOPNLMS support long-term supply of the E1696.31 as a spare part?
Yes. TOPNLMS maintains ongoing stock of B&R ACOPOS series modules, including the E1696.31, to support customers managing legacy automation systems where OEM supply lead times may be extended. We understand that industrial facilities often operate ACOPOS-based systems for 10–20 years, and reliable spare part availability is critical to maintenance planning. We recommend customers with high-criticality applications contact us to discuss buffer stock arrangements and long-term supply agreements.
