B&R 8V1010.00-2 Replacement/Upgrade for ACOPOS Series

Product Overview

B&R 8V1010.00-2 Replacement/Upgrade for ACOPOS Series: Smooth Transition from Legacy Servo Systems

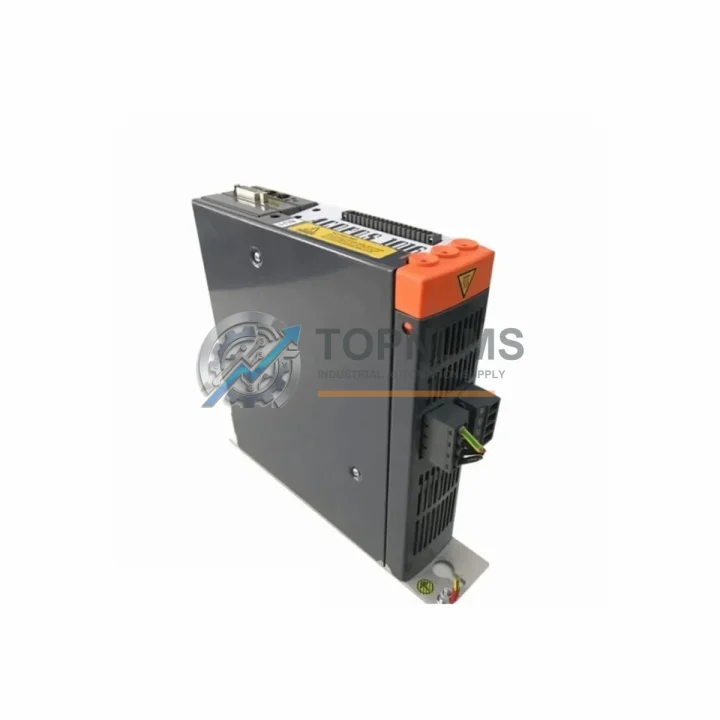

The B&R 8V1010.00-2 is a single-axis servo drive from the ACOPOS series, rated at 10A continuous output current and engineered for high-precision motion control in demanding industrial automation environments. Whether your existing ACOPOS drive has failed, reached end-of-life, or your facility is migrating away from an older B&R motion control platform, the 8V1010.00-2 provides a direct, validated replacement path that minimizes engineering rework, preserves existing wiring infrastructure, and reduces machine downtime to the absolute minimum.

This unit is sourced from verified supply channels, fully inspected prior to shipment, and backed by a 12-month warranty. Stock is available for immediate dispatch from our Xiamen warehouse, with global logistics support for customers across Asia, Europe, and the Americas.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 8V1010.00-2 rarely involves the servo drive in isolation. In most ACOPOS-based motion systems, the drive operates as part of a coordinated axis group sharing a common DC bus supplied by an 8V1180.00-2 ACOPOS supply module. When replacing a failed axis drive, it is best practice to simultaneously inspect the supply module and adjacent axis drives — particularly if the failure was caused by a DC bus overvoltage or short-circuit event that may have stressed neighboring units.

The 8V1010.00-2 communicates with the B&R motion controller — typically a B&R X20CP1586 or similar X20 CPU module — via POWERLINK, B&R’s deterministic Ethernet-based fieldbus. If your existing POWERLINK network uses an older hub topology, consider upgrading to a managed POWERLINK switch during the same maintenance window to improve network resilience. The drive’s node address is configured via the onboard rotary switch and must match the axis assignment in your Automation Studio project — no software license changes are required for a same-model replacement.

Motor feedback wiring is a common concern during ACOPOS drive replacement. The 8V1010.00-2 supports EnDat 2.1 and EnDat 2.2 encoder protocols as well as resolver feedback, making it compatible with the majority of B&R-approved servo motors including the 8LSA and 8LVA series. Existing motor cables and feedback connectors can be reused without modification, provided they are in good condition and correctly shielded — a significant advantage over cross-brand migrations that require full rewiring.

For facilities performing a broader control system modernization — for example, migrating from an older B&R 2005 system or a third-party PLC platform to a current B&R X20 architecture — the 8V1010.00-2 integrates natively into the new platform without requiring a separate motion controller gateway. Analog and digital I/O expansion can be handled by X20 digital I/O modules mounted on the same X20 backplane, reducing cabinet wiring complexity. If the legacy system used a B&R X67 remote I/O node for field-level signals, those nodes remain fully compatible with the X20 CPU and do not need to be replaced during the drive upgrade, protecting your existing I/O investment.

Where cabinet space is constrained, the slim form factor of the ACOPOS single-axis drive family allows multi-axis configurations to be assembled in a compact footprint. A typical three-axis cell using the 8V1010.00-2 alongside an 8V1022.00-2 (22A axis drive) and a shared supply module can be mounted in a standard 400mm-wide control cabinet without structural modification. Terminal blocks, shielding clamps, and cable management from the original installation are fully reusable, further reducing retrofit labor costs and minimizing the risk of wiring errors during recommissioning.

Signal isolation requirements should also be reviewed during the upgrade. If the legacy system used analog speed or torque reference signals between the PLC and drive, these can be replaced by the native POWERLINK interface of the 8V1010.00-2, eliminating the need for external signal isolators and improving noise immunity in environments with heavy motor cabling. For applications where legacy analog I/O must be retained during a phased migration, an X20 analog input module can bridge the old and new architectures within the same X20 backplane, allowing a staged cutover without full system downtime.

Customers migrating from discontinued third-party servo platforms — such as older Siemens SIMODRIVE or Allen-Bradley Ultra series drives — will find that the 8V1010.00-2, combined with a B&R X20 motion controller and appropriate motor adapters, provides a well-supported upgrade path with long-term spare parts availability and active firmware development, unlike many discontinued legacy platforms.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor power and feedback cables?
Yes. The 8V1010.00-2 uses the same motor power connector pinout and feedback interface as other ACOPOS single-axis drives. Provided your cables are correctly rated and shielded, no rewiring is required. Always verify cable insulation integrity and connector condition before recommissioning.

Q: Do I need to modify my Automation Studio project?
For a direct same-model replacement, no project changes are required. The axis configuration, parameter sets, and motion sequences remain valid. If you are upgrading from an older ACOPOS firmware revision, a firmware update via Automation Studio may be recommended — this is a non-destructive operation that preserves your axis parameters and motion profiles.

Q: Is POWERLINK V1 still supported?
The 8V1010.00-2 operates on POWERLINK V2, which is backward compatible with V1 network configurations. No changes to the POWERLINK managing node (CPU) are required in most cases. Confirm your CPU firmware version supports mixed V1/V2 networks if you are running a hybrid installation.

Q: What if my cabinet uses a different supply module voltage?
The ACOPOS supply module (e.g., 8V1180.00-2) provides the DC bus voltage to all connected axis drives. The 8V1010.00-2 is designed to operate within the standard ACOPOS DC bus voltage range. Verify your supply module’s rated output against the drive’s input specification before installation. If the supply module is also being replaced, ensure the new unit’s rated current covers the combined peak demand of all connected axis drives.

Q: How long does commissioning take after replacement?
For a direct 1:1 replacement with no project changes, commissioning typically takes 30–90 minutes including physical installation, POWERLINK node address verification, and a motion test cycle. More complex migrations involving firmware updates or axis reconfiguration may require additional time. Our technical team can provide remote commissioning guidance upon request.

Q: Can this drive replace units from other manufacturers?
The 8V1010.00-2 is a B&R-native drive and is not a drop-in replacement for drives from other vendors. However, for facilities migrating from third-party servo systems to B&R, it can serve as the target platform in a full motion system retrofit, provided the servo motors are replaced or adapted with compatible feedback interfaces. Contact our technical team to discuss cross-brand migration feasibility for your specific application.

Q: What installation space does the drive require?
The 8V1010.00-2 occupies the same physical slot width as other ACOPOS single-axis drives. No cabinet modifications are required for a same-series replacement. Adequate clearance for airflow above and below the drive must be maintained per B&R installation guidelines to ensure thermal performance.

Warranty Assurance

Every B&R 8V1010.00-2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point inspection covering power stage integrity, communication interface functionality, firmware version verification, and connector condition. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 hours of a claim being raised. Customers are not required to return the faulty unit before a replacement is dispatched in confirmed warranty cases, subject to prior agreement.

For procurement teams requiring documentation, we can provide inspection reports, packing lists, and commercial invoices upon request. All units are shipped with appropriate ESD protection and impact-resistant packaging to ensure safe arrival regardless of transit conditions.

We maintain stock of the 8V1010.00-2 and related ACOPOS components to support urgent replacement requirements. Same-day dispatch is available for orders confirmed before 14:00 CST. International express shipping (DHL, FedEx, UPS) is available to most destinations with typical transit times of 3–7 business days.
