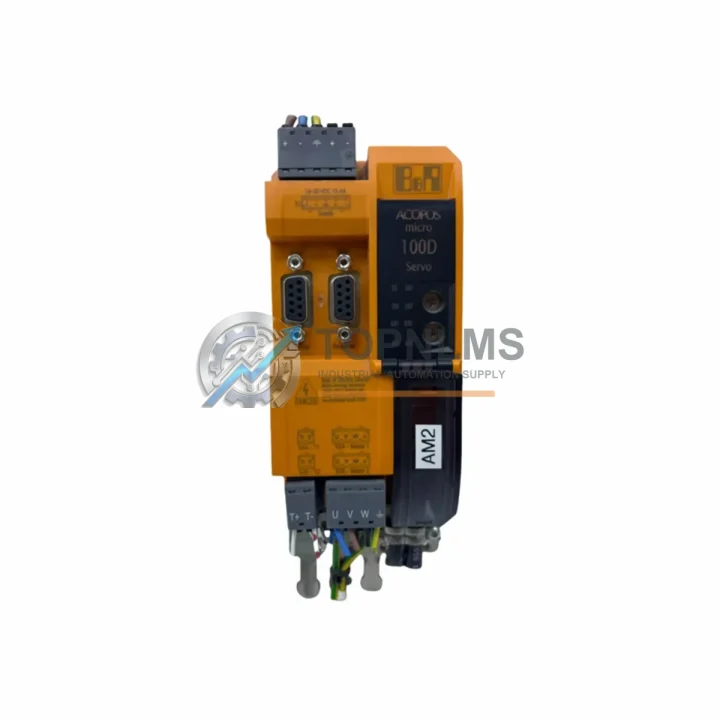

B&R 80VD100PD.C022-01 Ruggedized Dual-Axis Servo Drive Module

Product Overview

B&R 80VD100PD.C022-01 Ruggedized Dual-Axis Servo Drive Module: Industrial Resilience for Harsh Environments

The B&R 80VD100PD.C022-01 is a high-performance dual-axis servo drive controller from B&R Industrial Automation’s renowned ACOPOS series — engineered to deliver precise motion control and unwavering reliability in the most demanding industrial environments. Whether deployed on continuous production lines, in heavy manufacturing facilities, or within safety-critical infrastructure, this module is built to perform where standard drives fail.

Designed for integration into B&R’s modular automation architecture, the 80VD100PD.C022-01 supports seamless coordination with ACOPOS servo motors, B&R X20 PLC modules, and the Automation Studio engineering environment. Its dual-axis capability reduces cabinet footprint while maintaining full independent axis control — a critical advantage in space-constrained control panels and high-density machine designs.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation, no drive operates in isolation. The B&R 80VD100PD.C022-01 is designed to function as a core motion node within a fully integrated control architecture. On the network side, it communicates via POWERLINK — B&R’s deterministic Ethernet protocol — ensuring microsecond-level synchronization with the B&R X20CP1586 PLC CPU and other X20 system modules. This tight integration eliminates jitter-induced positioning errors that can compromise product quality on high-speed lines.

For power conditioning and protection, the drive is typically paired with a B&R 8B0C0160HWS0.000-1 ACOPOS capacitor module or a compatible DC bus buffer module, which absorbs regenerative energy during deceleration and protects upstream components from voltage spikes. On the input side, a B&R 8I0IF010.300-1 line filter module suppresses conducted EMI, ensuring the drive meets EN 61800-3 Category C2 requirements even in electrically noisy environments such as welding shops or variable-frequency drive-dense facilities.

Safety is non-negotiable in continuous production. The 80VD100PD.C022-01 supports integration with B&R X20SI8110 safety input modules and SafeLOGIC controllers to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions per IEC 62061 and ISO 13849-1 PLd/SIL 2 requirements. This makes it suitable for guarded machine zones where personnel access during operation must be safely managed without full system shutdown.

I/O expansion is handled through the B&R X20 digital and analog I/O modules — including the X20DI9371 digital input module and X20AO4622 analog output module — which connect via the X2X Link bus at up to 100 Mbit/s. For distributed cabinet architectures, B&R X20IF10D1-1 POWERLINK interface modules extend the network to remote I/O stations without sacrificing cycle time. Terminal connectivity is managed through B&R X20TB12 terminal block modules, which allow field wiring to be pre-assembled and hot-swapped during maintenance windows — a significant advantage in 24/7 production environments.

When the 80VD100PD.C022-01 is deployed in multi-axis gantry or coordinated motion applications, it works in concert with the B&R ACOPOS P3 8EI servo inverter family for axes requiring higher current ratings, maintaining a unified programming model across all motion axes within Automation Studio.

Application in Critical Infrastructure

The B&R 80VD100PD.C022-01 has proven its value across the most demanding sectors of critical infrastructure, where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: In upstream and midstream facilities, servo-driven valve actuators and pump control systems must operate reliably in environments with explosive atmospheres, high ambient temperatures, and persistent vibration from rotating machinery. While the 80VD100PD.C022-01 is installed within a purged or pressurized control enclosure (ATEX Zone 2 compliant cabinet), it provides the precision torque and speed control required for critical flow regulation without the hunting or instability associated with conventional VFD-based solutions.

Mining & Mineral Processing: Conveyor positioning systems, crusher feed rate control, and flotation cell agitator drives in mining operations are subject to extreme dust ingress, shock loads, and wide temperature swings. The ACOPOS architecture’s robust EMC design and vibration-rated components ensure consistent performance even when the control cabinet is mounted close to heavy crushing or grinding equipment.

Power Generation & Utilities: In thermal and hydroelectric power plants, servo drives control turbine governor actuators, cooling water valve positioning, and auxiliary equipment. The deterministic POWERLINK communication of the 80VD100PD.C022-01 ensures that control commands are executed within guaranteed time windows — a requirement for grid-synchronization applications where timing deviations of even a few milliseconds are unacceptable.

Water & Wastewater Treatment: Pump stations and dosing systems in water treatment plants demand continuous, unattended operation across seasons. The 80VD100PD.C022-01’s wide operating temperature range and humidity tolerance make it well-suited for partially climate-controlled pump houses, while its integration with B&R safety modules enables remote E-stop and safe state management via SCADA systems.

Metallurgy & Heavy Industry: Rolling mills, press lines, and induction furnace auxiliary drives require servo systems that can withstand intense electromagnetic interference from high-current bus bars and induction heating equipment. The 80VD100PD.C022-01’s compliance with EN 61800-3 EMC standards, combined with proper cabinet shielding practices, ensures stable operation in these electromagnetically hostile environments.

Security & Quality FAQ

Q1: What warranty does the B&R 80VD100PD.C022-01 carry, and what does it cover?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes functional defects under normal operating conditions. Each unit undergoes pre-shipment functional testing — including power-on verification and communication interface checks — before dispatch. Units that fail testing are quarantined and not shipped. Warranty claims are handled directly by our technical team; contact [email protected] for RMA procedures.

Q2: How do I confirm compatibility with my existing B&R ACOPOS or X20 system?
The 80VD100PD.C022-01 is compatible with B&R Automation Studio 4.x and later, and integrates natively with ACOPOS servo motors using the standard ACOPOS motor database. It communicates via POWERLINK V2 and X2X Link, making it compatible with all X20 PLC CPUs that support these protocols. If you are unsure about firmware version compatibility or motor pairing, our technical team can review your system configuration before you place an order — simply provide your existing CPU part number and motor model.

Q3: Is long-term supply availability guaranteed for this module?
We maintain dedicated stock of high-demand ACOPOS and X20 series modules to support both planned maintenance schedules and emergency replacement scenarios. The 80VD100PD.C022-01 is stocked as a priority spare due to its widespread deployment in packaging, printing, and process industries. For customers with large installed bases, we offer reserved stock arrangements — contact us to discuss volume and lead-time commitments.

Q4: What are the on-site safety considerations when replacing this drive in a live production environment?
Replacement of the 80VD100PD.C022-01 should be performed with the machine in a safe state — STO active or main power isolated — in accordance with your site’s lockout/tagout (LOTO) procedure. The module’s X2X Link and POWERLINK connections are hot-swap capable at the network level, but the DC bus must be fully discharged (indicated by the DC bus LED extinguishing) before physical removal. We recommend having a pre-configured replacement unit with the correct firmware and motor parameters loaded via Automation Studio before entering the machine zone, to minimize downtime. Our technical team can provide parameter backup and restore guidance remotely.
