Applied Materials SM312CV2 0021-70379 Ruggedized Shutter Sensor Assembly

Product Overview

Applied Materials SM312CV2 0021-70379 Ruggedized Shutter Sensor Assembly: Industrial Resilience for Harsh Semiconductor Environments

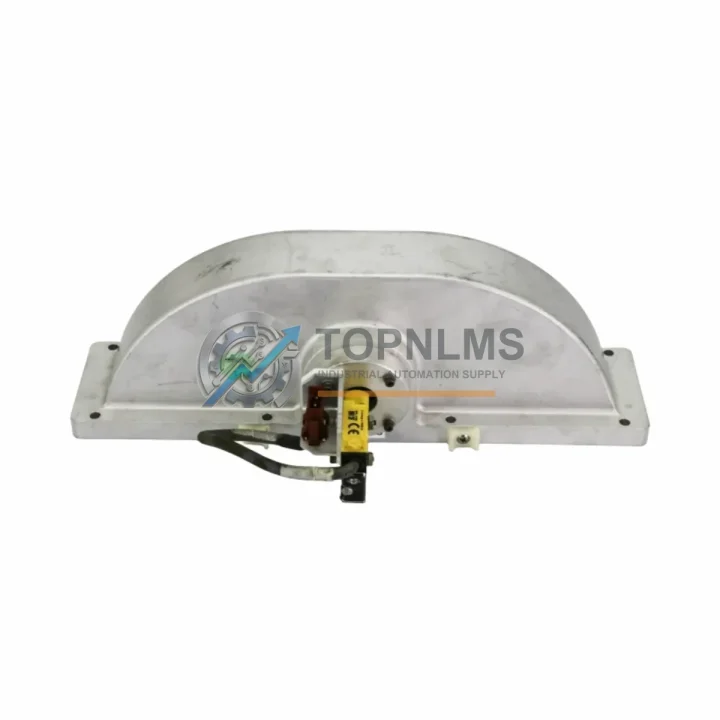

The Applied Materials SM312CV2 0021-70379 Shutter with Sensor Assembly is a precision-engineered motion and position control component designed for continuous, uninterrupted operation inside the demanding vacuum environment of the Applied Materials Endura PVD (Physical Vapor Deposition) platform. Built to withstand the extreme thermal cycling, high-vacuum conditions, particulate contamination, and electromagnetic interference inherent to semiconductor thin-film deposition processes, this assembly delivers the mechanical reliability and sensor accuracy that modern fab operations demand.

In high-throughput PVD chambers, the shutter mechanism is a critical gating component — controlling target exposure, preventing cross-contamination between process steps, and protecting wafers during idle or purge cycles. The SM312CV2 / 0021-70379 assembly integrates both the mechanical shutter blade and its position-sensing feedback circuit into a single ruggedized unit, eliminating the alignment uncertainty that arises when these components are sourced and installed separately. This integrated design reduces mean time to repair (MTTR) and supports rapid swap-out during scheduled preventive maintenance windows.

Rugged Specifications Table

Comprehensive Protection Solutions

The SM312CV2 0021-70379 Shutter Sensor Assembly does not operate in isolation — it is one node in a tightly integrated system of motion, sensing, power, and process control components. In a fully operational Endura PVD chamber, this assembly works in concert with the Applied Materials 0010-76071 Lift Pin Assembly, which manages wafer transfer positioning, and the 0190-76205 RF Match Network, which conditions power delivery to the sputter target. Precise shutter actuation timing is coordinated by the chamber’s 0100-35052 System Controller Board, which interprets sensor feedback from this assembly to confirm open/closed state before initiating deposition sequences.

On the power and signal integrity side, the assembly’s sensor circuit relies on stable low-voltage DC supply from the Endura 0890-01652 DC Power Distribution Module. Any noise or ripple on this supply line can cause false position readings, leading to process aborts or, in worst cases, shutter-wafer collisions. Pairing the SM312CV2 assembly with a verified, OEM-spec power module eliminates this risk. Similarly, the 0040-76038 Chamber Liner and 0020-62867 Shield Assembly protect the shutter mechanism from sputter deposition buildup that would otherwise increase actuation torque and accelerate wear on the sensor’s mechanical linkage.

For facilities managing multiple Endura chambers, maintaining a bonded spare inventory that includes the 0021-70379 Shutter Assembly alongside the 0021-38345 Slit Valve Door Assembly and the 0040-09570 Throttle Valve Assembly ensures that any single-point mechanical failure can be resolved within one maintenance shift — preventing the multi-day downtime that results from waiting on emergency OEM procurement. The Applied Materials 0190-09810 Turbo Pump Controller and associated vacuum gauging modules round out the critical spare set for sustaining chamber base pressure integrity during and after shutter replacement.

Application in Critical Infrastructure

The Applied Materials Endura PVD platform — and by extension, the SM312CV2 0021-70379 Shutter Sensor Assembly — is deployed in some of the world’s most demanding semiconductor fabrication environments. In advanced logic and memory fabs, Endura systems deposit barrier, seed, and interconnect metal layers on 200mm and 300mm wafers running 24/7 production schedules. A shutter failure in this context does not merely pause one chamber — it can cascade into a line-wide WIP (work-in-process) hold affecting thousands of wafers and millions of dollars in product value.

In compound semiconductor and power device fabs — producing GaN, SiC, and high-voltage MOSFET structures for electric vehicle powertrains, industrial motor drives, and grid-scale power conversion — the Endura platform deposits critical ohmic and Schottky contact metals. These applications impose particularly stringent requirements on shutter repeatability, because even minor positional drift can alter contact resistance and device yield. The SM312CV2 assembly’s integrated sensor provides the closed-loop position confirmation that process engineers rely on to maintain deposition-to-deposition consistency.

Beyond semiconductor fabs, Endura-class PVD systems are used in flat panel display manufacturing, solar cell metallization, hard disk media deposition, and optical coating production — all environments where continuous uptime, contamination control, and precise mechanical actuation are non-negotiable. In each of these settings, the shutter assembly is a wear item that requires periodic replacement as part of a disciplined preventive maintenance program. Sourcing a verified, in-stock replacement from TOPNLMS eliminates the procurement lead-time risk that is the most common cause of unplanned extended downtime.
