Applied Materials RAYMI3COMM 0190-46835 Original Spare RayTrac

Product Overview

Applied Materials RAYMI3COMM 0190-46835 Original Spare RayTrac: System Stability & Industrial Spare Parts Maintenance Value

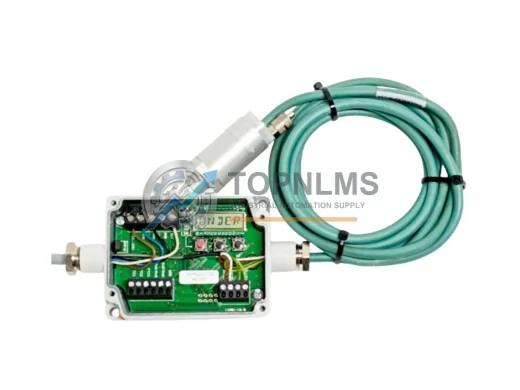

The Applied Materials RAYMI3COMM 0190-46835 (also cross-referenced as 4022.471.75263, LDM-B12PA2CC1, and 852B-13384) is an original pyrometer communication interface module engineered for semiconductor process chambers. As a core component of the RayTrac pyrometry system, this module serves as the critical data bridge between the in-situ pyrometer sensor and the process control system, enabling real-time, high-accuracy wafer temperature measurement during CVD, etch, and thermal anneal processes.

In high-throughput semiconductor fabs and advanced packaging facilities, unplanned downtime caused by a failed pyrometer communication module can halt an entire process line within minutes. Maintaining a verified original spare of the RAYMI3COMM 0190-46835 in your critical spares inventory is one of the most cost-effective strategies for protecting process uptime, preserving recipe integrity, and avoiding costly wafer scrap events.

Critical Technical Specs

Preventive Maintenance Strategy

When a RAYMI3COMM 0190-46835 communication module is flagged during a scheduled PM or shows intermittent temperature read errors, experienced process engineers know that a single-component swap rarely tells the full story. The RayTrac pyrometry system is an integrated measurement chain, and the reliability of the entire chain depends on the health of each link.

During a chamber PM that involves the pyrometer communication interface, it is best practice to simultaneously inspect the RAYMI3 pyrometer sensor head and its fiber optic light pipe assembly for contamination, misalignment, or thermal degradation. The 0190-46835 communication board interfaces directly with the chamber’s process control I/O, so the associated Applied Materials I/O interface board and its ribbon cable harness should be checked for corrosion or loose seating at the same time.

Power integrity is equally critical. The pyrometry subsystem draws regulated DC power from the chamber’s internal power distribution assembly; inspecting the Applied Materials DC power supply module serving the pyrometer rack and verifying its output voltage under load will prevent a secondary failure from masking a successful module replacement. If your facility runs multiple chambers on the same tool platform, consider stocking the RAYMI3COMM communication module alongside the RayTrac signal conditioning board as a matched pair — replacing both during a single PM window eliminates the risk of a latent failure on the companion board triggering another unplanned outage weeks later.

For facilities managing legacy Applied Materials platforms, the chamber’s temperature controller card and the process kit interface PCB are additional components worth inspecting during the same maintenance window. These boards share the same backplane and are subject to the same thermal cycling stress as the RAYMI3COMM module. Similarly, the Applied Materials MFC (mass flow controller) driver board and RF match network control module — while not directly part of the pyrometry circuit — are often serviced concurrently during extended PM shutdowns to maximize the value of each chamber-down event.

Facilities with a structured spare parts program should also consider maintaining buffer stock of the Applied Materials chamber lid thermocouple assembly and the process chamber pressure transducer module, both of which are frequently replaced during the same PM cycle as pyrometry components in high-utilization etch and CVD chambers.

Strategic Replacement Solutions

The RAYMI3COMM 0190-46835 is a legacy Applied Materials part that is no longer in active production. As semiconductor fabs extend the operational life of installed tool platforms to defer capital expenditure, sourcing verified original spare modules becomes increasingly difficult through standard OEM channels. TOPNLMS specializes in exactly this scenario: providing tested, original-condition spare parts for end-of-life and long-tail industrial equipment.

Replacing a failed or degraded RAYMI3COMM module with a verified original — rather than an untested pull or an unqualified substitute — preserves the calibration baseline of the RayTrac pyrometry system and avoids the process qualification re-runs that an unverified replacement would trigger. This is particularly important in facilities operating under strict SPC (statistical process control) regimes, where a pyrometry calibration drift event can result in wafer holds, engineering investigations, and significant yield impact.

Each unit shipped by TOPNLMS undergoes functional verification and visual inspection before dispatch. The module is shipped in ESD-safe packaging with full cross-reference documentation, enabling your maintenance team to confirm compatibility against your chamber’s BOM before installation. For facilities managing multiple Applied Materials platforms, we recommend a consignment or scheduled replenishment arrangement to ensure RAYMI3COMM availability aligns with your PM calendar rather than your next unplanned outage.

Support FAQ

Q1: Is the RAYMI3COMM 0190-46835 compatible with all Applied Materials RayTrac-equipped chambers?
The RAYMI3COMM 0190-46835 is designed for Applied Materials process chambers equipped with the RAYMI3 / RayTrac in-situ pyrometry system. Compatibility should be verified against your chamber’s specific BOM and software revision. Cross-reference part numbers 4022.471.75263, LDM-B12PA2CC1, and 852B-13384 can assist in confirming fitment. Contact us with your chamber model and tool ID for pre-purchase compatibility confirmation.

Q2: What testing is performed before shipment?
Each RAYMI3COMM 0190-46835 unit undergoes functional verification and visual inspection prior to dispatch. Units are shipped in ESD-safe packaging. A 12-month quality warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage inventory for this end-of-life component?
Given that the RAYMI3COMM 0190-46835 is a legacy part with limited OEM availability, we recommend maintaining at least one verified spare per tool platform in your critical spares inventory. For high-utilization fabs with multiple RayTrac-equipped chambers, a two-unit buffer stock is advisable to cover both planned PM replacements and unplanned failures without incurring emergency sourcing lead times.

Q4: What is the lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days. Worldwide shipping is available with ESD-safe packaging and export documentation. For bulk orders or scheduled replenishment programs, please contact our team directly to discuss consignment arrangements and priority allocation.
